- RZR 4 900 (R12) - Z16VCE87AB/AR/AE/AS
BODY, REAR RACK AND FENDERS - Z16VCE87AB/AR/AE/AS (700004)

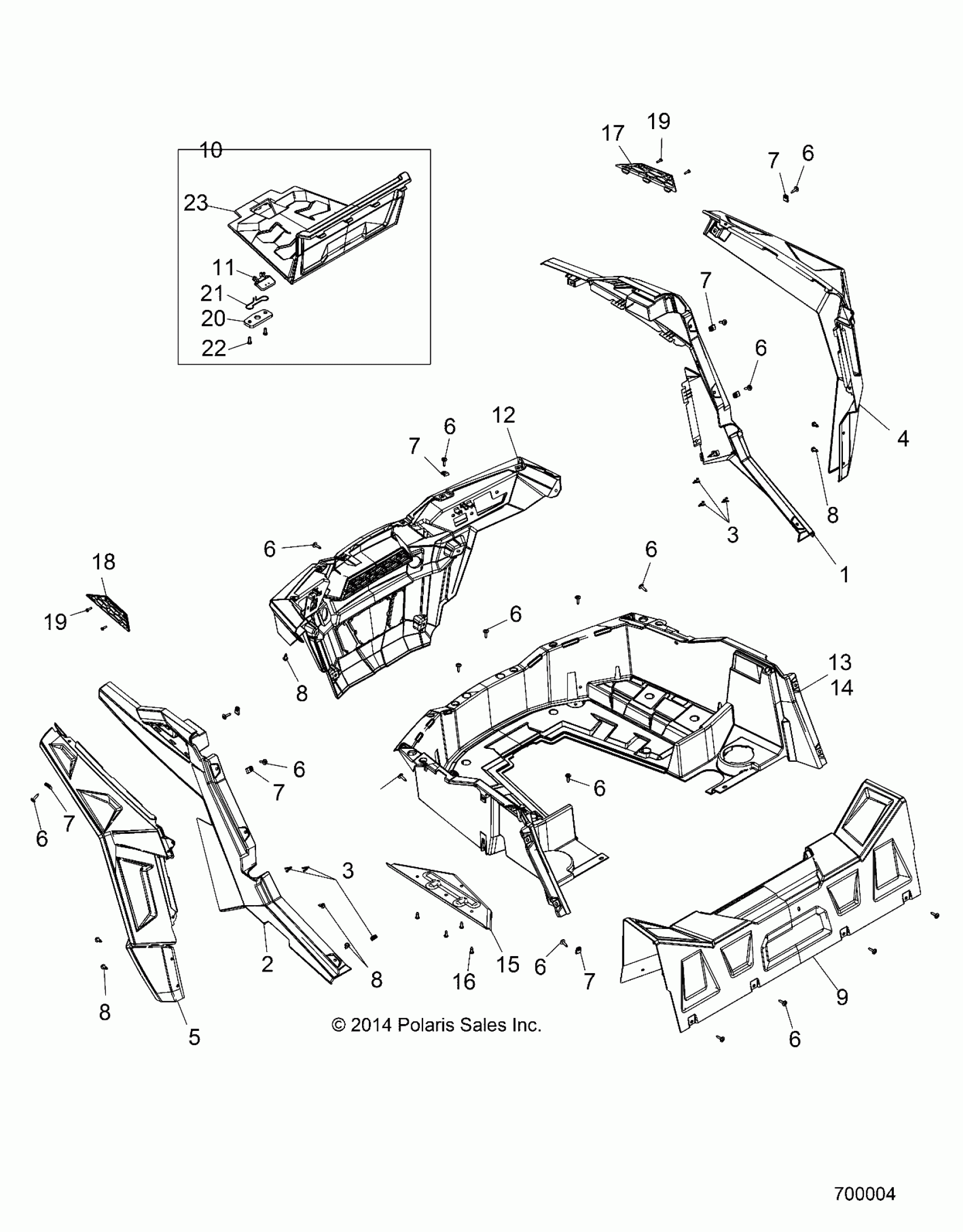

Polaris RZR 4 900 (R12) - Z16VCE87AB/AR/AE/AS BODY, REAR RACK AND FENDERS - Z16VCE87AB/AR/AE/AS (700004) Diagram
#
1
ASM., FENDER, REAR, CLIP, LH, BLUE FIRE [AB][INCL. QTY 6 OF 3]
2635493-620
Unavailable
1
ASM., FENDER, REAR, CLIP, LH, HAVASU RED PEARL [AR][INCL. QTY 6 OF 3]
2635493-649
Unavailable
1
ASM-FNDR,PNT,RR,CLIP,LH,S ORG [AE][INCL. QTY 6 OF 3]
2635493-697
Unavailable
1
ASM-FNDR,PNT,RR,CLIP,LH,M.S.RD [AS][INCL. QTY 6 OF 3]
2635493-669
Unavailable
1
ASM., FENDER, REAR, CLIP, LH, BLUE FIRE [AB][INCL. QTY 6 OF 3]
2635493-620
Unavailable
1
ASM., FENDER, REAR, CLIP, LH, HAVASU RED PEARL [AR][INCL. QTY 6 OF 3]
2635493-649
Unavailable
1
ASM-FNDR,PNT,RR,CLIP,LH,S ORG [AE][INCL. QTY 6 OF 3]
2635493-697
Unavailable
1
ASM-FNDR,PNT,RR,CLIP,LH,M.S.RD [AS][INCL. QTY 6 OF 3]
2635493-669
Unavailable
2
ASM., FENDER, REAR, CLIP, RH, BLUE FIRE [AB][INCL. QTY 6 OF 3]
2635494-620
Unavailable
2
ASM., FENDER, REAR, CLIP, RH, HAVASU RED PEARL [AR][INCL. QTY 6 OF 3]
2635494-649
Unavailable
2
ASM-FNDR,PNT,RR,CLIP,RH,S ORG [AE][INCL. QTY 6 OF 3]
2635494-697
Unavailable
2
ASM-FNDR,PNT,RR,CLIP,RH,M.S.RD [AS][INCL. QTY 6 OF 3]
2635494-669
Unavailable
3
CLIP-DASH,TRIM,METAL
7519806
$3.99
3
CLIP-DASH,TRIM,METAL
7519806
$3.99
4
FENDER, REAR FLAIR, LH, BLACK
5439766-070
$79.99
5
FENDER, REAR FLAIR, RH, BLACK
5439767-070
$79.99
5
FENDER, REAR FLAIR, RH, BLACK
5439767-070
$79.99
5
FENDER, REAR FLAIR, RH, BLACK
5439767-070
$79.99
6
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
6
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
6
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
6
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
6
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
6
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
6
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
6
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
6
SCR-TXTH-M6X1.0X25 ZFB
7519650
$3.99
7
NUT, U-TYPE
7547674
$1.49
7
NUT, U-TYPE
7547674
$1.49
7
NUT, U-TYPE
7547674
$1.49
7
NUT, U-TYPE
7547674
$1.49
7
NUT, U-TYPE
7547674
$1.49
7
NUT, U-TYPE
7547674
$1.49
8
Rivet
7661855
$1.49
8
Rivet
7661855
$1.49
8
Rivet
7661855
$1.49
8
Rivet
7661855
$1.49
9
HOUSING, AIR INTAKE, BLACK
5451190-070
Unavailable
10
ASM., PANEL, BOX, ACCESS [Incl 11,20-23]
2635957
$103.99
11
HANDLE-SEAT BASE LATCH
5437121
$4.84
12
FASCIA, REAR, BLACK
5451117-070
$401.69
13
ASM., REAR BOX, BLACK [INCL. 14-16]
2635810
Unavailable
14
BOX, REAR, BLACK
2635463-070
Unavailable
15
SHIELD, SIDE BOX
5814081
Unavailable
16
SCREW
7519045
$3.19
17
GRILL, INTAKE COVER, LH, BLACK
5451188-070
$35.99
18
GRILL, INTAKE COVER, RH, BLACK
5451189-070
$35.99
19
SCREW
7512026
$1.49
19
SCREW
7512026
$1.49
20
LATCH, COVER PLATE, BLACK
5450510-070
$4.79
21
SPRING, LATCH, SEAT
7081466
$39.99
22
SCREW
7519290
$3.99
23
PANEL, BOX, ACCESS, BLACK
5451116-070
Unavailable
