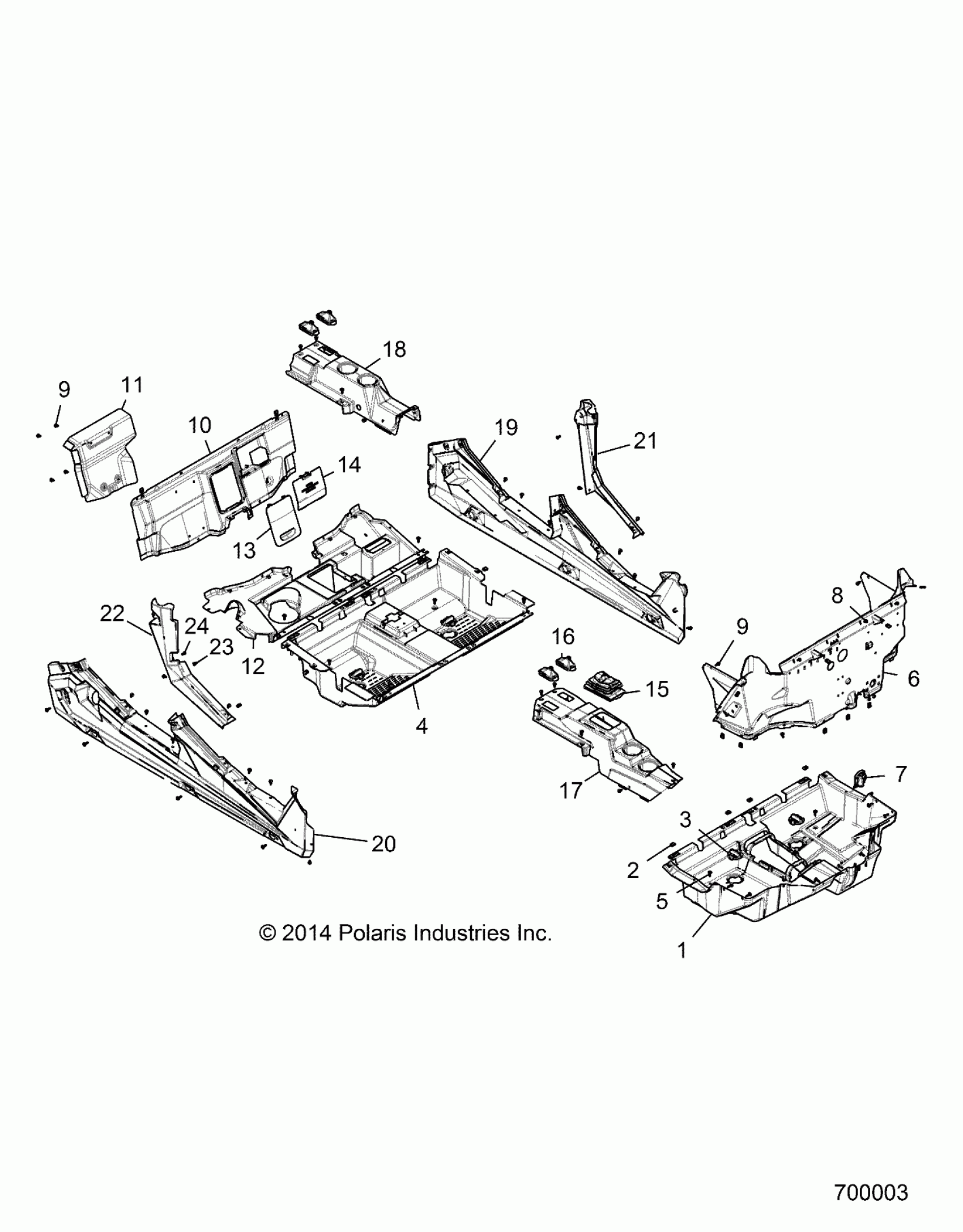

Polaris RZR 4 900 (R12) - Z16VCE87AB/AR/AE/AS BODY, FLOOR and ROCKER PANELS - Z16VCE87AB/AR/AE/AS (700003) Diagram

ASM-FLOOR,MAIN,BLK [INCL QTY 8 OF 2]

2635388-070

$311.65

NUT-M6-1.0,U-TYPE (2.5-3.8)

7547674

$1.19

PLUG-DRAIN,FLOOR

5414694

$11.11

FLOOR-REAR,MP,BLK

5450891-070

$230.70

SCR-TXTH-M6X1.0X25 ZFB

7519650

$3.97

ASM-CLOSEOUT,MAIN,BLK [INCL QTY 11 OF 2]

2635358-070

$210.46

BOOT-STEERING

5415042

$24.27

SCR-10-24X3/4 PH/TX/TRI-SEMS Y

7518196

$1.19

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19

ASM-REAR CLOSEOFF,UPR,BLK [Incl Qty 4 of 9,11]

2635464-070

$222.68

SHIELD-FOIL,FRONT PANEL

5814436

$40.46

PANEL-REAR CLOSEOFF,LWR,BLK

5439770-070

$230.70

PANEL-ACCESS,ENGINE,BLK

5452376-070

$32.37

COVER-ECU

5450383

$32.37

BOOT-SHIFTER [IF BUILT AFTER 9/8/15]

5415700

$32.37

BOOT-SHIFTER [IF BUILT BEFORE 9/7/15]

5414651

$32.37

BOOT-SEAT BELT,BLK

5450254-070

$11.90

CONSOLE-FRT,MP,BLK

5450887-070

$129.51

CONSOLE-REAR,MP,BLK

5450888-070

$129.51

ROCKER-LH,BLK

5451560-070

$186.17

ROCKER-RH,BLK

5451561-070

$186.17

ASM-CVR-B-PLR,CLIP,LH,BLK [INCL QTY 2 OF 23]

2635916-070

$57.13

ASM-CVR-B-PLR,CLIP,RH,BLK [INCL QTY 2 OF 23]

2635917-070

$67.76

CLIP-DASH,TRIM,METAL

7519806

$3.97

SCR-TX TRUSS-#14X3/4,HI/LO ZBK

7519045

$3.17
