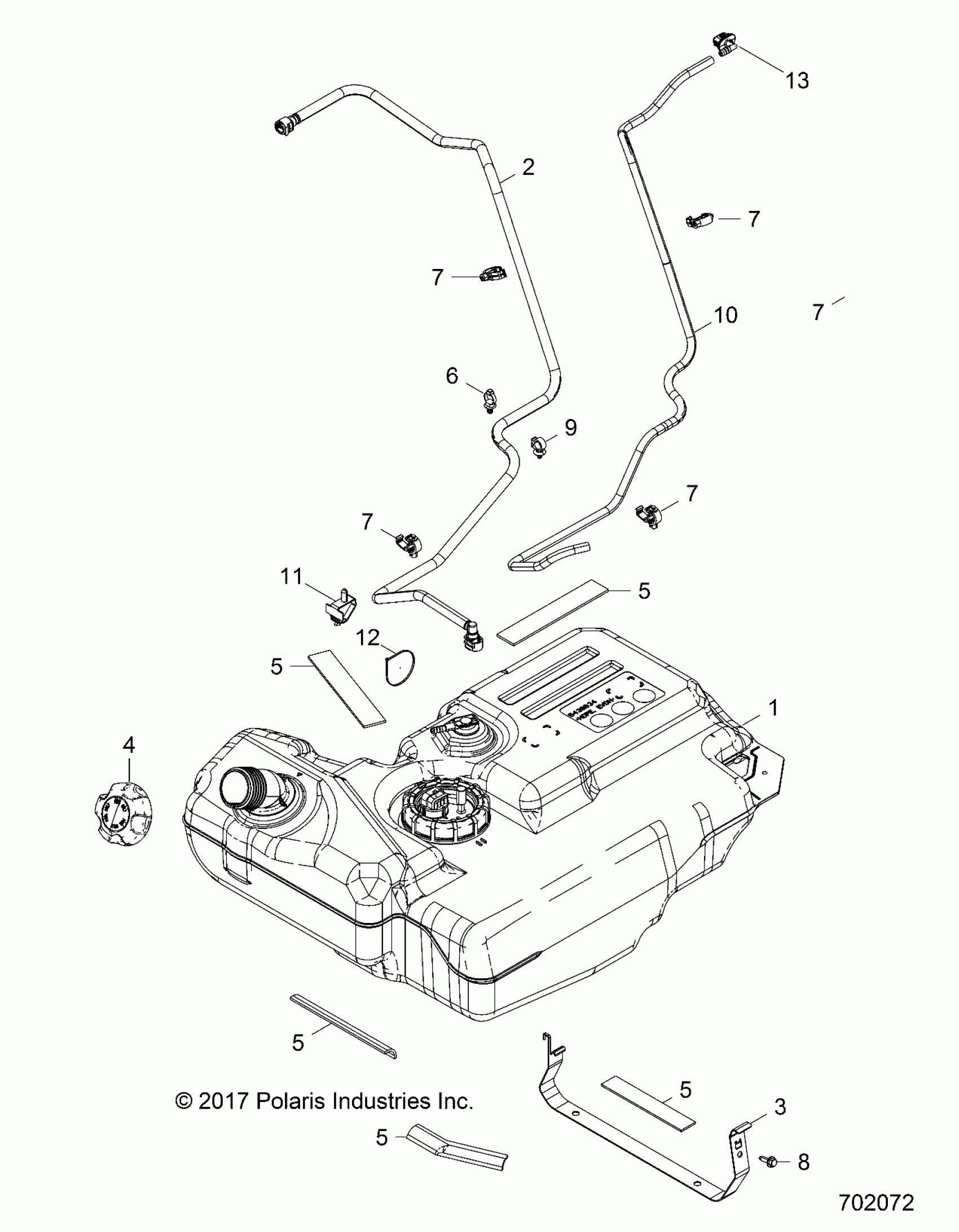

Polaris RZR 4 900 (R07) - Z18VCE87BK/BU/BR/LU BODY, FUEL TANK - Z18VCE87BK/BU/BR/LU (702072) Diagram

#

Description
Price

1

KIT, FUEL PUMP

2205502

$469.99

1

ASM., FUEL TANK [INCL. PUMP]

2521436

$1,149.99

2

ASM-FUEL LINE

2521838

$116.17

3

STRAP, FUEL TANK, BLK

5259555-329

$24.27

4

CAP-GAS TANK

5439075

$24.27

5

PAD-BATTERY

5810290

$7.27

5

PAD-BATTERY

5810290

$7.27

5

PAD-BATTERY

5810290

$7.27

5

PAD-BATTERY

5810290

$7.27

5

PAD-BATTERY

5810290

$7.27

6

CLIP FIR-TREE,DIA6-33MM

7081496

$4.76

7

CLIP, HARNESS

7081871

$3.97

7

CLIP, HARNESS

7081871

$3.97

7

CLIP, HARNESS

7081871

$3.97

7

CLIP, HARNESS

7081871

$3.97

7

CLIP, HARNESS

7081871

$3.97

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

9

CLIP, ROUTING, HINGED

7670116

$5.56

10

ASM-VENT LINE,135CM

2521907

$36.41

11

CLIP, ROUTING

7670109

$2.38

12

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

13

FITTING-VENT LINE,90

5453464

$5.56
