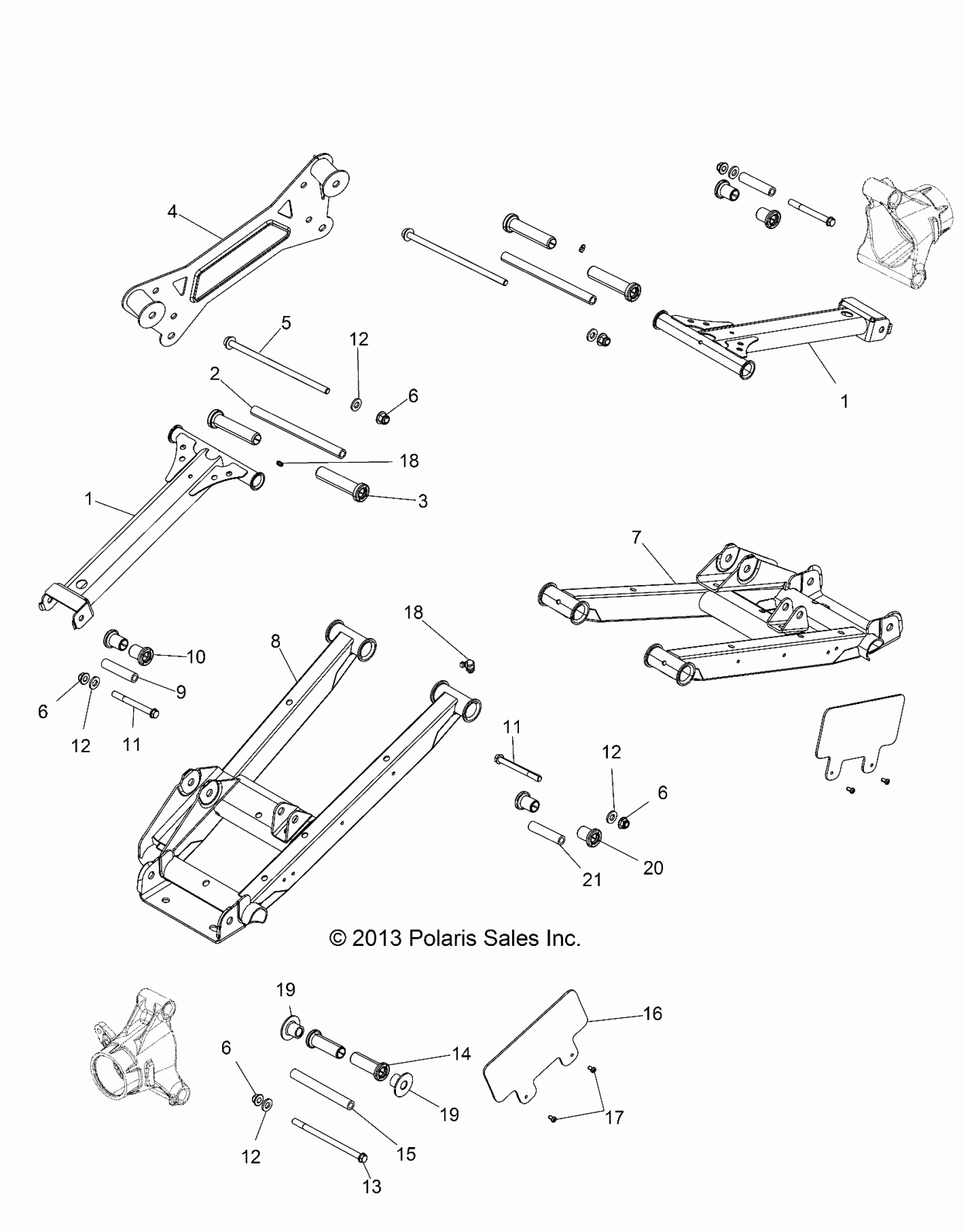

Polaris RZR 4 800 - Z14XE7EAL/X SUSPENSION, REAR CONTROL ARMS - Z14XE7EAL/X (49RGRSUSPRR14RZR4) Diagram

#

Description
Price

1

ARM, CONTROL, UPPER, LT, REAR, SILVER [AX]

1018188-385

$135.99

1

ARM, CONTROL, UPPER, LT, REAR, VOODOO BLUE [AL]

1018188-619

$135.99

1

ARM, CONTROL, UPPER, LT, REAR, SILVER [AX]

1018188-385

$135.99

1

ARM, CONTROL, UPPER, LT, REAR, VOODOO BLUE [AL]

1018188-619

$135.99

2

SHAFT, PIVOT

5138790

Unavailable

3

BUSHING, A-ARM, LONG

5439732

Unavailable

4

BRACE, SUSPENSION, REAR, MATTE BLACK

1016583-458

Unavailable

5

SCREW

7519086

$27.99

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

6

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

ARM, CONTROL LOWER, LT, REAR, SILVER, LH [AX]

1018217-385

$536.79

7

ARM, CONTROL LOWER, LT, REAR, VOODOO BLUE, LH [AL]

1018217-619

$466.39

8

ARM, CONTROL LOWER, LT, REAR, SILVER, RH [AX]

1018218-385

$554.39

8

ARM, CONTROL LOWER, LT, REAR, VOODOO BLUE, RH [AL]

1018218-619

$554.39

9

TUBE, PIVOT

5136100

$15.99

10

BUSHING-STANDARD,ORV

5439874

$2.39

11

SCREW

7519043

$9.59

11

SCREW

7519043

$9.59

12

WASHER

7556153

$1.99

12

WASHER

7556153

$1.99

12

WASHER

7556153

$1.99

12

WASHER

7556153

$1.99

13

SCREW

7519042

$9.59

14

BUSHING, CONTROL ARM

5439878

$5.19

15

TUBE, PIVOT [BUILT 3/10/14 AND BEFORE]

5136101

Unavailable

15

SHAFT, PIVOT [BUILT 3/11/14 AND AFTER]

5138798

$28.32

16

SHIELD, CV, REAR, BLACK

5438639-070

$19.99

17

Screw

7512084

$1.49

18

FITTING, ZERK

7080510

$5.59

18

FITTING, ZERK

7080510

$5.59

19

BUSHING, PIVOT

5136102

$10.39

19

BUSHING, PIVOT

5136102

$10.39

20

BUSHING-STANDARD,ORV

5439874

$2.39

20

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.39

21

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$8.79
