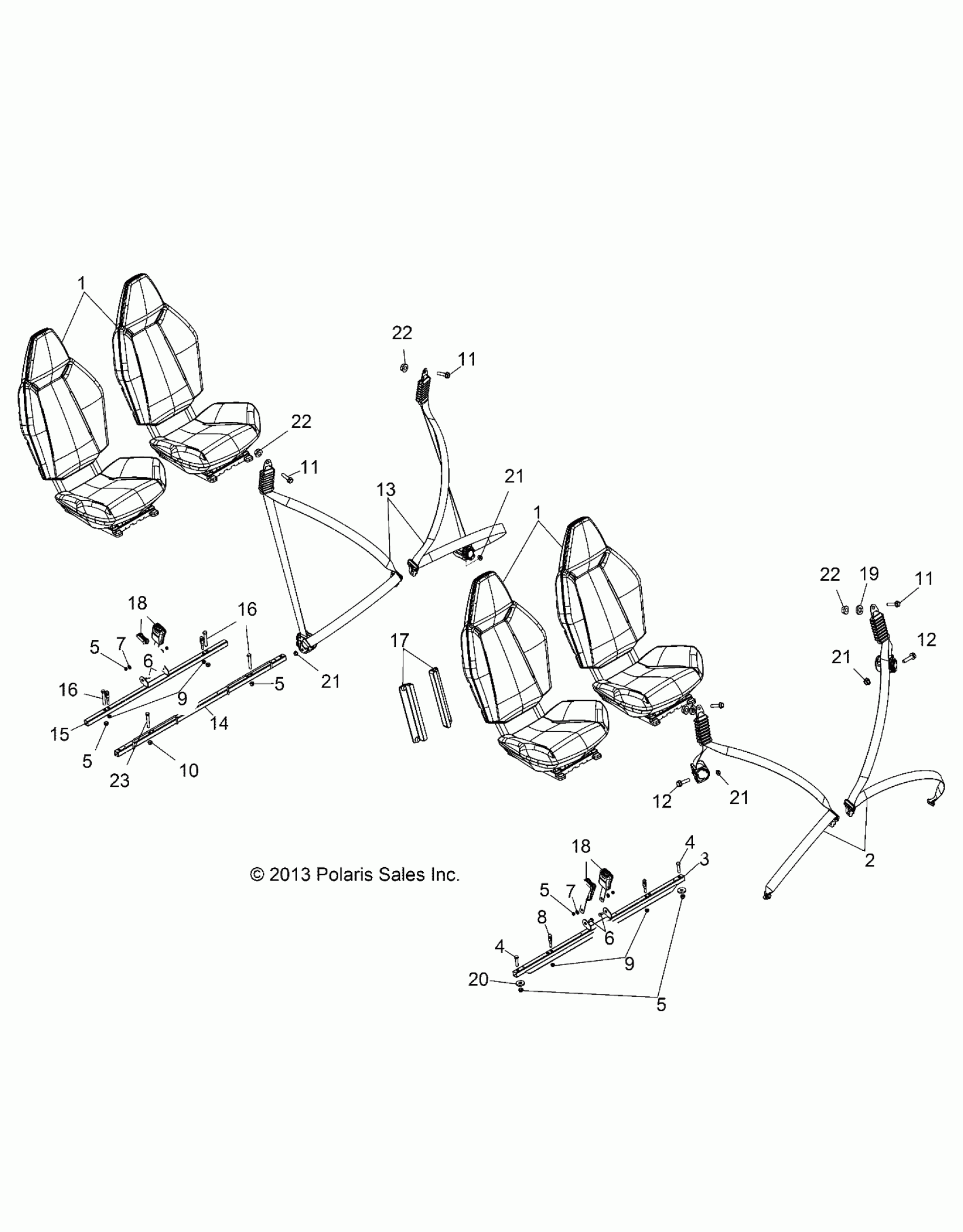

Polaris RZR 4 800 - Z14XE7EAL/X BODY, SEAT MOUNTING and BELTS - Z14XE7EAL/X (49RGRSEATMTG14RZR4) Diagram

#

Description
Price

1

ASM., SEAT [SEE SEAT ASM. PAGE FOR DETAILS]

----

Unavailable

2

ASM., SEAT BELT, 3 POINT, FRONT

2635050

Unavailable

3

BASE, SEAT, MATTE BLACK

1017454-458

Unavailable

4

SCREW

7512530

$5.56

4

SCREW

7512530

$5.56

5

NUT, NYLON

7542525

$4.76

5

NUT, NYLON

7542525

$4.76

5

NUT, NYLON

7542525

$4.76

5

NUT, NYLON

7542525

$4.76

5

NUT, NYLON

7542525

$4.76

6

SCREW

7519072

$5.56

6

SCREW

7519072

$5.56

7

WASHER, FLAT

7556333

$3.97

7

WASHER, FLAT

7556333

$3.97

8

PLUNGER-LATCH

7519252

$28.49

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

10

NUT

7547317

$2.38

11

BOLT, SHOULDER

----

Unavailable

11

BOLT, SHOULDER

----

Unavailable

11

BOLT, SHOULDER

----

Unavailable

12

SCREW

7512520

$4.76

12

SCREW

7512520

$4.76

13

ASM., SEAT BELT, 3 POINT

2635134

$288.87

14

TUBE, SUPPORT, SEAT, REAR, MATTE BLACK

5336541-458

Unavailable

15

BASE, SEAT, REAR, BACK, MATTE BLACK

1017452-458

Unavailable

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.38

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.38

17

BUMPER, RUBBER, SEAT HOOP

5414011

$23.81

18

BUCKLE-SEATBELT,CABLE

2635104

Unavailable

18

BUCKLE-SEATBELT,CABLE

2635104

Unavailable

19

WASHER-SEATBELT,RUBBER

5813829

$1.19

20

WASHER, FLAT

7556468

$3.97

21

NUT, NYLOK

7540000

$3.97

21

NUT, NYLOK

7540000

$3.97

21

NUT, NYLOK

7540000

$3.97

21

NUT, NYLOK

7540000

$3.97

22

NUT, FLANGE, NYLOK

7547441

$4.76

22

NUT, FLANGE, NYLOK

7547441

$4.76

22

NUT, FLANGE, NYLOK

7547441

$4.76

23

SCREW

7516732

$1.59
