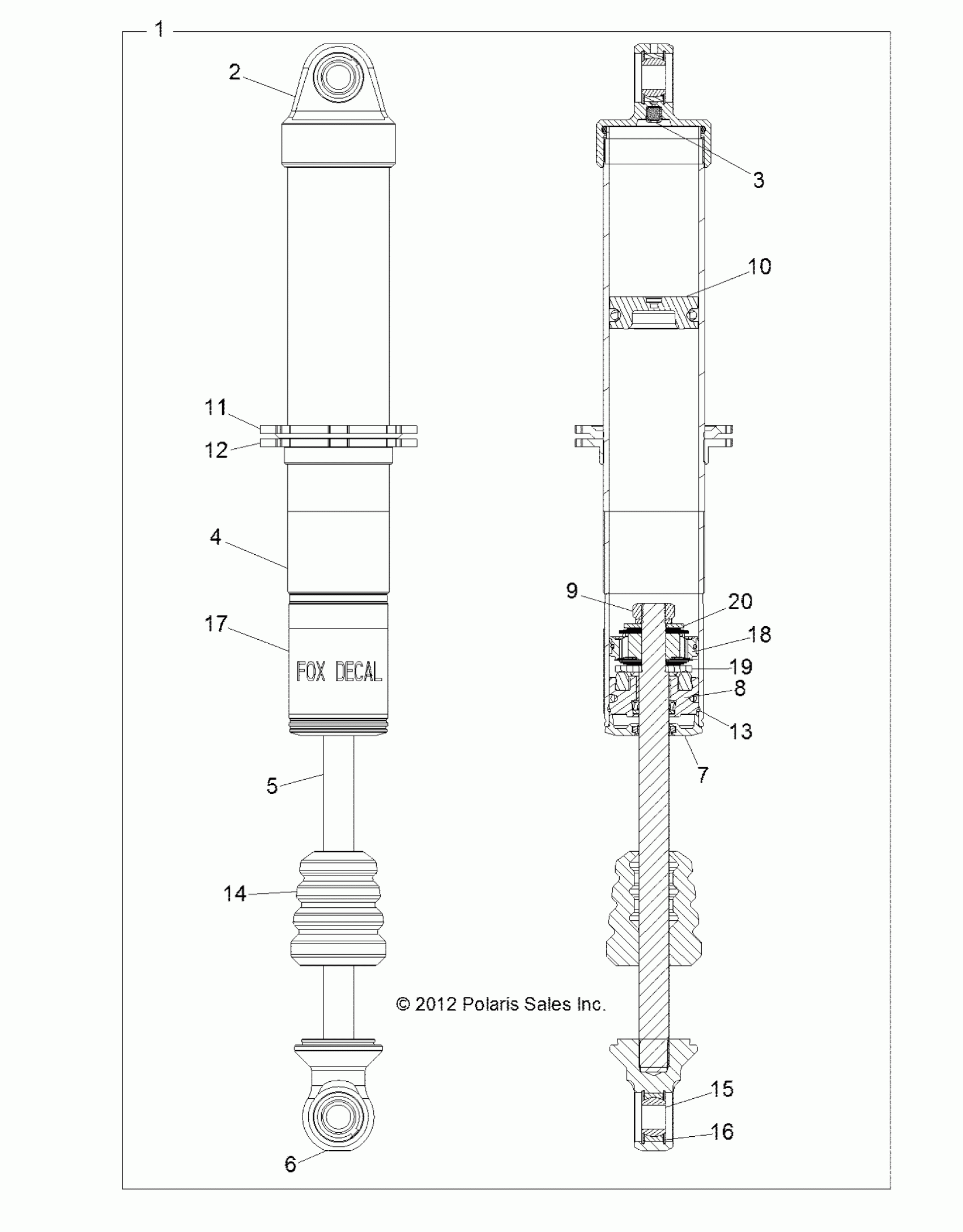

Polaris RZR 4 800 EFI - R13XE76AD/EAI SUSPENSION, REAR SHOCK - R13XE76AD (49RGRSHOCKRR7043907) Diagram

#

Description
Price

1

SHOCK, REAR [INCL ALL][AD]

7043907

$754.99

1

KIT, SEAL REBUILD

1500917

Unavailable

2

ASM. BODY CAP

1500937

Unavailable

3

AIR VALVE ASSEMBLY

1500886

$44.51

4

BODY

1500939

$70.34

5

SHAFT

1500876

$150.06

6

EYELET

1500849

$154.99

7

BEARING CAP

1500835

$109.99

8

ASM. BEARING

1500940

$114.99

9

NUT, LOCK

1500871

$23.81

10

ASM. PISTON, FLOATING

1500941

Unavailable

11

PRELOAD RING BACK UP

1500872

$48.56

12

PRELOAD RING

1500873

$52.60

13

RETAINING RING

1500236

$9.52

14

BUMPER

1500577

$33.24

15

BEARING, SPHERICAL

1500524

$43.65

16

RETAINING RING

1500828

$6.04

17

DECAL, BODY

1500942

$3.55

18

PISTON

1500870

$64.75

19

PLATE, TOP OUT

1500943

Unavailable

20

PLATE, BACK-UP

1500516

$8.08
