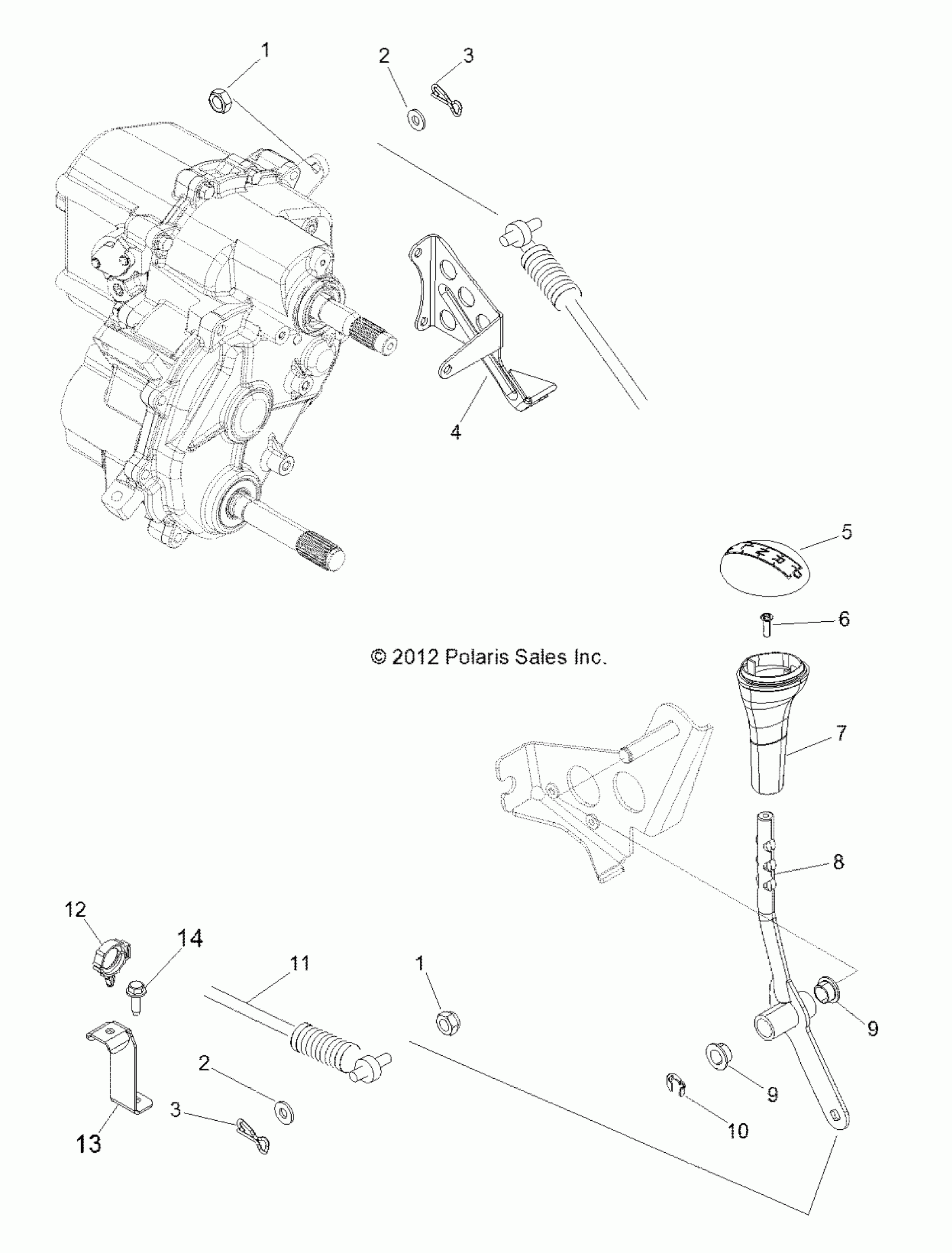

Polaris RZR 4 800 EFI - R13XE76AD/EAI DRIVE TRAIN, GEAR SELECTOR - R13XE76AD/EAI (49ATVGEARSELECT13RZR4) Diagram

#

Description
Price

1

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

1

NUT-NYLOCK M8X1.25-Y

7547144

$3.19

2

WASHER

7555954

$4.79

2

WASHER

7555954

$4.79

3

PIN-CLIP,14MM

7661140

$1.49

3

PIN-CLIP,14MM

7661140

$1.49

4

MOUNT, CABLE, SHIFT, REAR

1015951

$180.39

5

COVER, SHIFT

5413299

$11.99

6

SCREW

7512024

$4.79

7

KNOB, GEAR SELECTOR SHIFT

5411007

Unavailable

8

LEVER, SHIFT

1542256

Unavailable

9

BUSHING-PEDAL PIVOT

5431107

$8.79

9

BUSHING-PEDAL PIVOT

5431107

$8.79

10

RING, RETAINING, E

7710901

$7.19

11

CABLE, SHIFT

7081591

$139.99

12

Clip, Rosebud

4020149

$6.39

13

BRACKET, SHIFTER CABLE SUPPORT

5254864

Unavailable

14

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49
