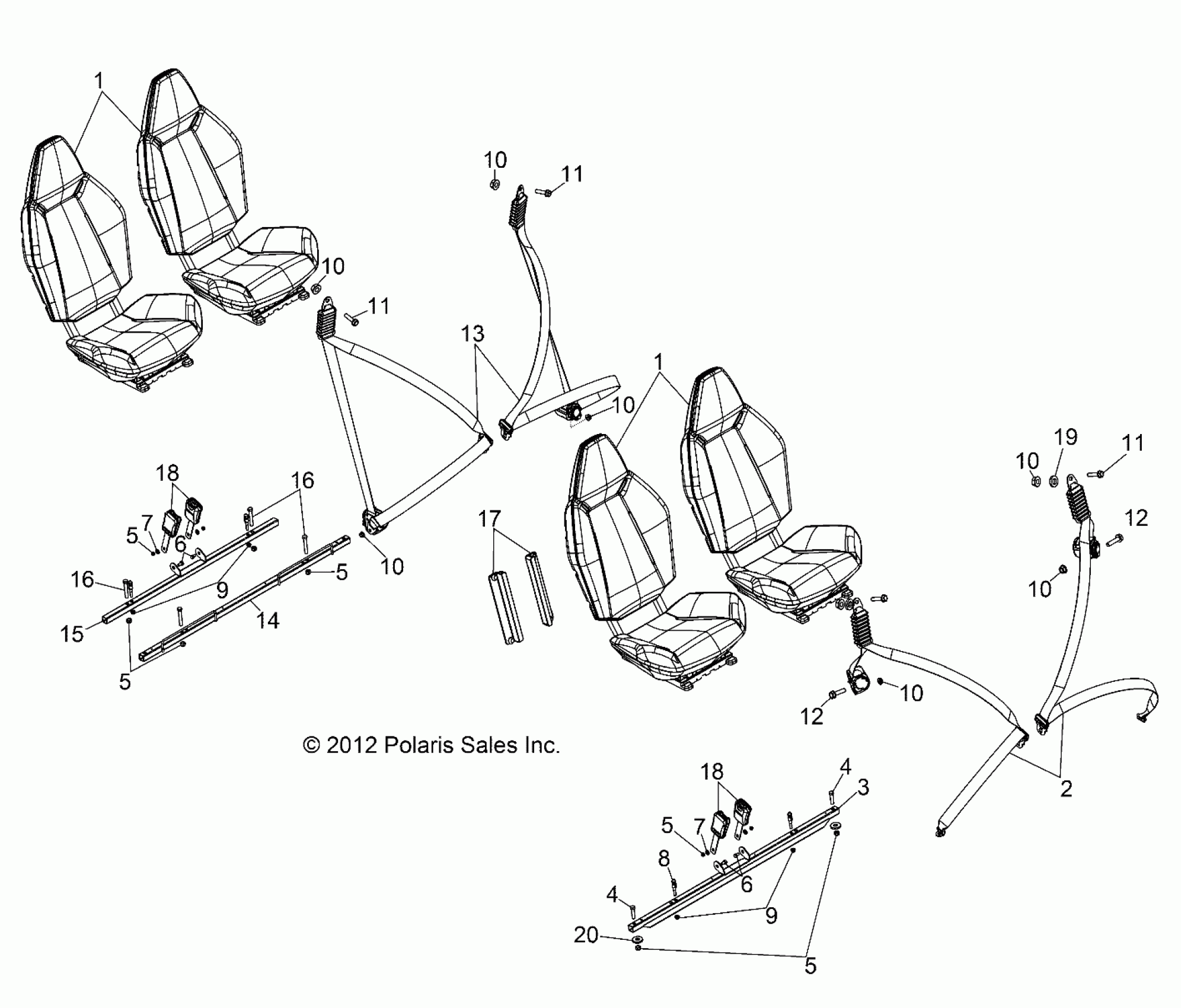

Polaris RZR 4 800 EFI - R13XE76AD/EAI BODY, SEAT MOUNTING and BELTS - R13XE76AD/EAI (49RGRSEATMTG13RZR4) Diagram

#

Description
Price

1

ASM., SEAT [SEE SEAT ASM. PAGE FOR DETAILS]

----

Unavailable

1

ASM., SEAT [SEE SEAT ASM. PAGE FOR DETAILS]

----

Unavailable

2

ASM., SEAT BELT, FRONT

2634888

$244.99

3

BASE, SEAT, MATTE BLACK

1017454-458

Unavailable

4

BOLT

7518207

$23.81

4

BOLT

7518207

$23.81

5

NUT, NYLON

7547066

$1.59

5

NUT, NYLON

7547066

$1.59

5

NUT, NYLON

7547066

$1.59

5

NUT, NYLON

7547066

$1.59

5

NUT, NYLON

7547066

$1.59

6

SCREW [BUILT 2/12/13 AND AFTER]

7512520

$4.76

6

BOLT [BUILT 2/11/13 AND BEFORE]

7518820

$3.97

7

WASHER, FLAT

7556333

$3.97

7

WASHER, FLAT

7556333

$3.97

8

PLUNGER-LATCH

7519252

$28.49

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

11

BOLT, SHOULDER

7519241

Unavailable

11

BOLT, SHOULDER

7519241

Unavailable

11

BOLT, SHOULDER

7519241

Unavailable

12

SCREW

7512520

$4.76

12

SCREW

7512520

$4.76

13

ASM., SEAT BELT, 3 POINT

2634887

$223.24

14

TUBE, SUPPORT, SEAT, REAR, MATTE BLACK

5336541-458

Unavailable

15

BASE, SEAT, REAR, BACK, MATTE BLACK

1017452-458

Unavailable

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.38

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.38

17

BUMPER, RUBBER, SEAT HOOP

5414011

$23.81

18

BUCKLE, SEAT BELT, CABLE

2634173

Unavailable

18

BUCKLE, SEAT BELT, CABLE

2634173

Unavailable

19

WASHER-SEATBELT,RUBBER

5813829

$1.19

20

WASHER, FLAT

7556468

$3.97
