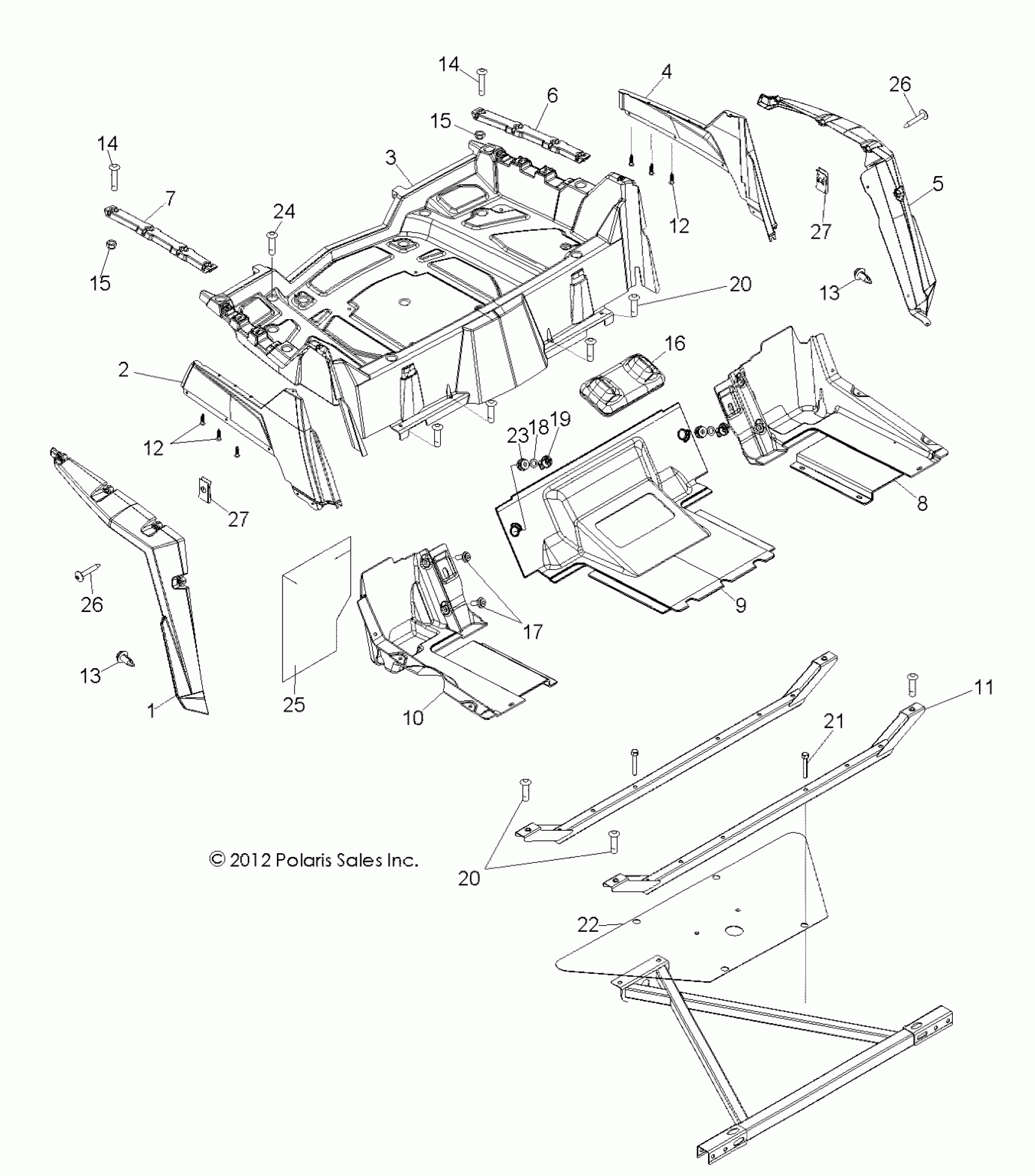

Polaris RZR 4 800 EFI - R13XE76AD/EAI BODY, REAR RACK and FENDERS - R13XE76AD/EAI (49RGRRACKMTG13RZR4) Diagram

#

Description
Price

1

FLAIR, FENDER, REAR, LT, RH, BLACK

5437662-070

$83.99

2

FENDER, REAR, RH, INDY RED [AD]

5437393-293

Unavailable

2

FENDER, REAR, RH, BLUE FIRE [EAI]

5437474-620

$338.79

3

ASM., RACK, REAR, BLACK [INCL. WARNING DECALS]

2634104-070

Unavailable

4

FENDER, REAR, LH, INDY RED [AD]

5437392-293

Unavailable

4

FENDER, REAR, LH, BLUE FIRE [EAI]

5437472-620

Unavailable

5

FLAIR, FENDER, REAR, LH, BLACK

5437661-070

$79.99

6

BRACKET, RACK, TIE DOWN, LH, BLACK

5436849-070

$51.99

7

BRACKET, RACK, TIE DOWN, RH, BLACK

5436850-070

$51.99

8

FLOOR, REAR, LH, BLACK

5438375-070

$79.99

9

COVER, CONSOLE, REAR, BLACK

5438311-070

$99.99

10

FLOOR, REAR, RH, BLACK

5438376-070

Unavailable

11

SUPPORT, RACK, REAR, BLACK

1015565-329

$91.99

12

SCREW

7517561

$1.59

12

SCREW

7517561

$1.59

13

Rivet

7661855

$1.49

13

Rivet

7661855

$1.49

14

SCREW

7517230

$1.49

14

SCREW

7517230

$1.49

15

NUT, FLANGED

7542153

$1.59

15

NUT, FLANGED

7542153

$1.59

16

COVER, SEAT BELT BUCKLE, REAR

5813553

$27.99

17

Screw

7512084

$1.49

18

WASHER

7555919

$4.99

19

LATCH, 1/4 TURN

7081500

$5.59

20

SCREW

7517685

$1.59

20

SCREW

7517685

$1.59

21

SCREW

7518382

$4.79

22

PLATE, SHIELD, BOX

5256351

$51.99

23

GROMMET-LATCH

5413428

$3.19

24

SCREW

7517686

$1.59

25

FOIL, RH PANEL

5813614

$6.39

26

SCREW

7518375

$1.49

26

SCREW

7518375

$1.49

27

NUT, U-TYPE

7670145

Unavailable

27

NUT, U-TYPE

7670145

Unavailable
