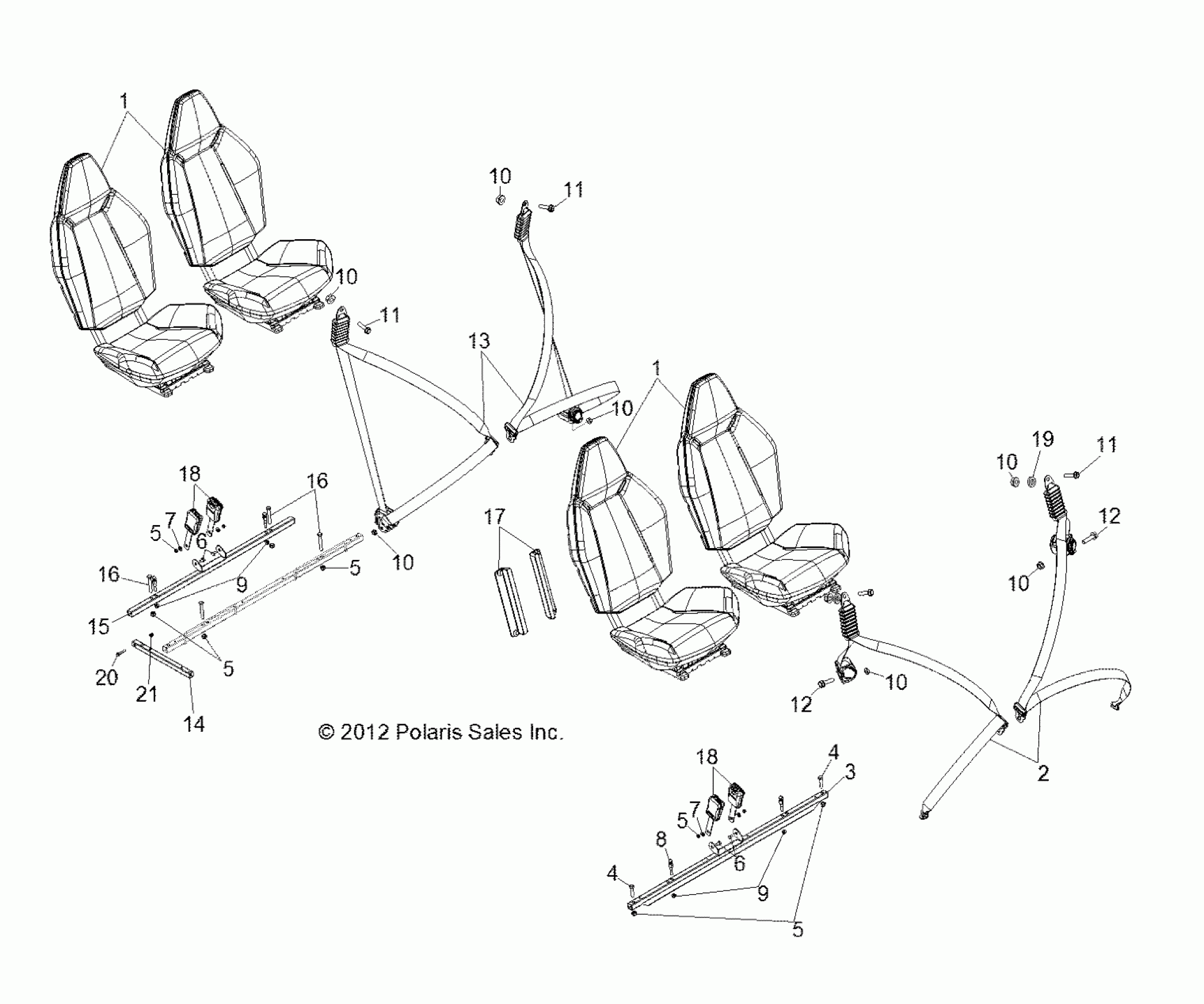

Polaris RZR 4 800 EFI - R12XE76AD/7EAB/EAO BODY, SEAT MOUNTING and BELTS - R12XE76AD/7EAB/EAO (49RGRSEATMTG12RZR4) Diagram

#

Description
Price

1

ASM., SEAT [SEE SEAT ASM. PAGE FOR DETAILS]

----

Unavailable

1

ASM., SEAT [SEE SEAT ASM. PAGE FOR DETAILS]

----

Unavailable

2

Asm., Seat Belt, Front [Incl. 17]

2634175

Unavailable

3

BASE, SEAT, MATTE BLACK

1017454-458

Unavailable

4

SCREW

7512530

$5.56

4

SCREW

7512530

$5.56

5

NUT, NYLON

7542525

$4.76

5

NUT, NYLON

7542525

$4.76

5

NUT, NYLON

7542525

$4.76

5

NUT, NYLON

7542525

$4.76

5

NUT, NYLON

7542525

$4.76

6

Bolt

7518820

$3.97

7

WASHER, FLAT

7556333

$3.97

7

WASHER, FLAT

7556333

$3.97

8

PLUNGER-LATCH

7519252

$28.49

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.76

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

11

BOLT, SHOULDER

7519241

Unavailable

11

BOLT, SHOULDER

7519241

Unavailable

11

BOLT, SHOULDER

7519241

Unavailable

12

SCREW

7512520

$4.76

12

SCREW

7512520

$4.76

13

Asm., Seat Belt, 3 Point

2634154

$199.49

14

TUBE, SUPPORT, SEAT, REAR, MATTE BLACK

5336541-458

Unavailable

15

BASE, SEAT, REAR, BACK, MATTE BLACK

1017452-458

Unavailable

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.38

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.38

17

BUMPER, RUBBER, SEAT HOOP

5414011

$23.81

18

BUCKLE, SEAT BELT, CABLE

2634173

Unavailable

18

BUCKLE, SEAT BELT, CABLE

2634173

Unavailable

19

WASHER-SEATBELT,RUBBER

5813829

$1.19

20

SCREW

7516732

$1.59

21

Nut, Flange

7547317

$2.38
