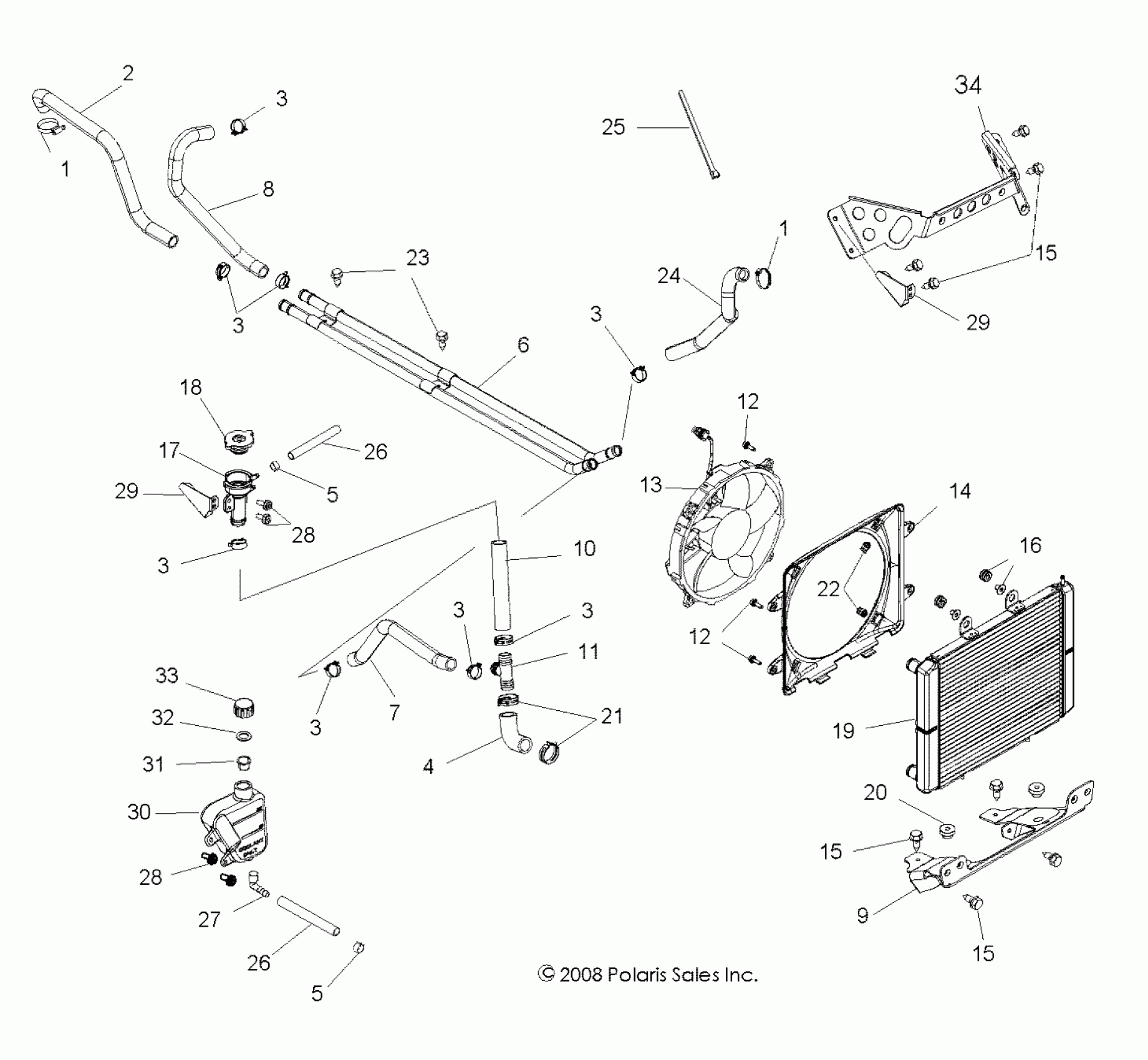

Polaris RZR 4 800 EFI - R10XH76AA ENGINE, COOLING SYSTEM - R10XH76AA (49RGRCOOL09RZRS) Diagram

#

Description
Price

1

CLAMP, HOSE

7081174

$7.14

1

CLAMP, HOSE

7081174

$7.14

2

Hose, Engine Outlet, Rear

5413148

$44.51

3

Clamp, Springband, Brown

7080843

$3.97

3

Clamp, Springband, Brown

7080843

$3.97

3

Clamp, Springband, Brown

7080843

$3.97

3

Clamp, Springband, Brown

7080843

$3.97

3

Clamp, Springband, Brown

7080843

$3.97

3

Clamp, Springband, Brown

7080843

$3.97

3

Clamp, Springband, Brown

7080843

$3.97

4

Hose

5410958

$32.37

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

5

CLAMP-HOSE, (LARGE GREEN)

7080307

$0.79

6

Asm., Tube, Coolant

1240515

$154.99

7

Hose, Radiator, Lower

5413372

$44.51

8

Hose, Engine Inlet, Rear

5413147

Unavailable

9

Mount, Radiator, Lower, Matte' Black

1015842-458

Unavailable

10

Hose, Radiator

5413371

$36.41

11

T-CONNECTOR

7052373

$10.32

12

SCREW

7516822

$2.38

12

SCREW

7516822

$2.38

13

Asm., Fan [Built 3/15/10 and After]

2410413

$267.13

13

Asm., Fan [Built 3/14/10 and Before]

2411219

$211.90

14

SHROUD, FAN

5437845

Unavailable

15

SCREW

7517386

$1.19

15

SCREW

7517386

$1.19

15

SCREW

7517386

$1.19

16

ASM., GROMMET AND INSERT

5411975

$3.17

17

Filler, Remote

5438110

Unavailable

18

Cap, Pressure

1240508

$48.56

19

Asm., Radiator, Core

1240444

$561.57

20

BUSHING-MOUNT,LOWER RADIATOR

5410584

$5.56

21

CLAMP, SPRINGBAND, BLACK

7080844

$10.32

22

CLIP-"U",M6.0X1.0

7547366

$5.99

23

Screw

7515179

$2.38

24

Hose, Radiator, Upper

5413067

$44.51

25

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.41

26

Line, Fuel

8450003-1525

Unavailable

26

Line, Fuel

8450003-1525

Unavailable

27

FITTING, 90 DEGREE

7052065

$7.14

28

Screw

7512084

$1.19

28

Screw

7512084

$1.19

29

Bracket, Filler Neck

5253450

$28.32

29

Bracket, Filler Neck

5253450

$28.32

30

TANK-SURGE

5436936

$80.94

31

PLUG-CAP 9X(GREEN) FLEX TEMP

5433774

$5.65

32

GASKET-OVERFLOW CAP

5810279

$2.41

33

CAP-OVER FLOW BOTTLE,DRILLED

5430743

$5.65

34

Bracket, Mount, Radiator, Upper, Black

5253683-067

$40.46
