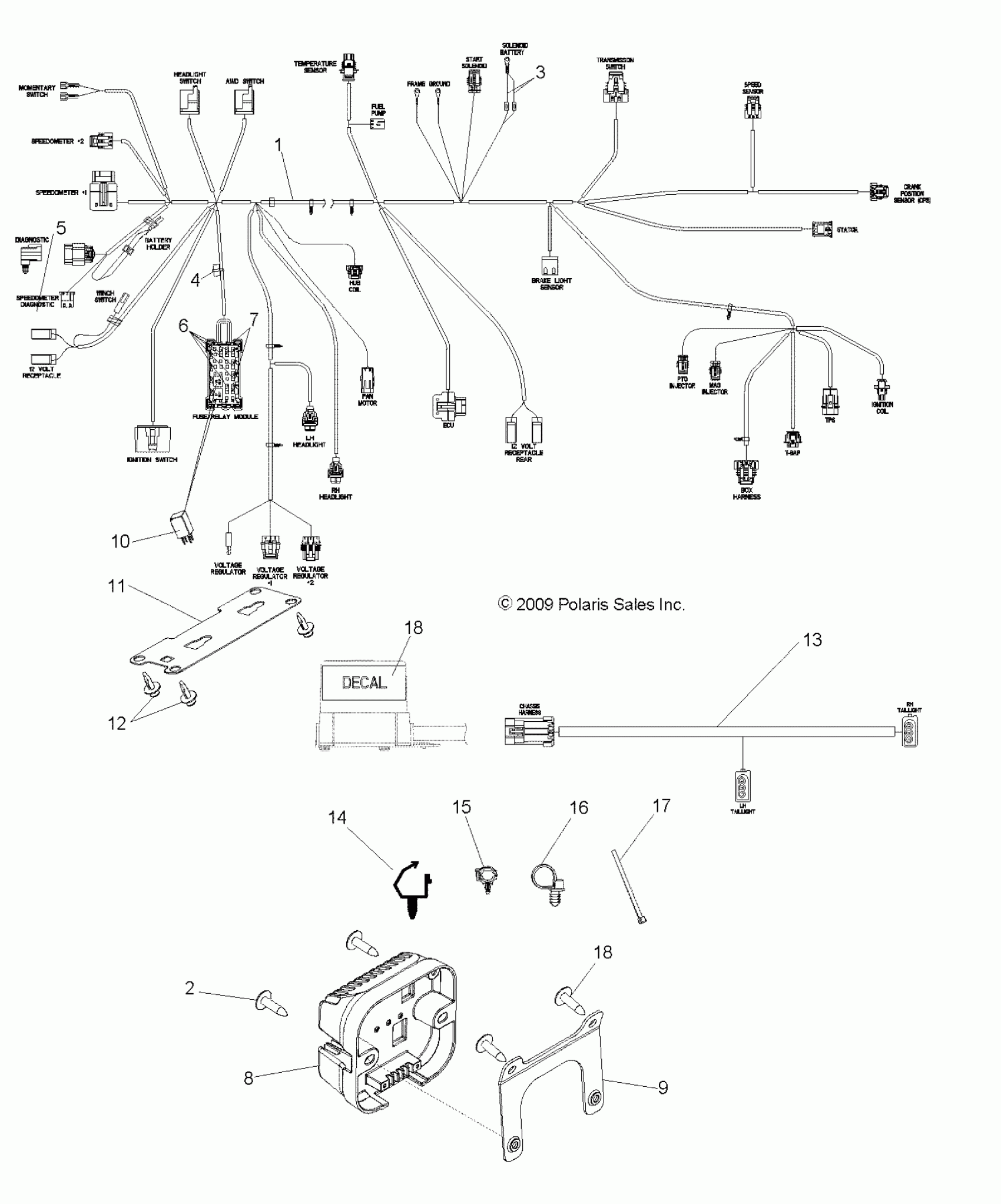

Polaris RZR 4 800 EFI - R10XH76AA ELECTRICAL, WIRE HARNESS - R10XH76AA (49RGRHARNESS10RZRS4) Diagram

#

Description
Price

1

KIT, HARNESS, CPS

2878497

$111.99

1

KIT, HARNESS, T-BAP

2875542

Unavailable

1

Kit, Harness, TPS

2203801

$111.99

1

Kit, Harness, Engine Temp

2875543

$107.99

1

Harness, Chassis

2411364

Unavailable

2

Screw

7517916

$6.39

3

KIT, FUSIBLE LINK, 1 MM

2202670

$35.99

4

BREAKER-CIRCUIT,20 AMP,SEALED

2410881

$72.84

5

COVER-DIAGNOSTIC,W/CLIP

4012170

$8.08

6

FUSE-15AMP,MINI BLADE

4010859

$7.19

7

FUSE-PARK,20 AMP

2434017

Unavailable

8

Regulator

4012748

$199.99

9

Bracket, Regulator Mount

5252587

$49.99

10

RELAY-SPST,SERIES 303,SEALED

4011283

Unavailable

11

PLATE, FUSE MOUNT

5253675

$7.19

12

Rivet

7661855

$1.49

13

HARNESS, BOX

2411384

$63.99

14

CLIP, ROUTING

7670109

$2.39

15

Clip, Rosebud

4020149

$6.39

16

CABLE-TIE,DIA10-50MM,FIR-TREE

7081334

$1.59

17

CABLE-TIE,10-102MM,WEATH.-RES.

7080761

$2.39

18

Decal, Fuse/Relay Block

7176219

Unavailable

18

Decal, Fuse/Relay Block

7176219

Unavailable
