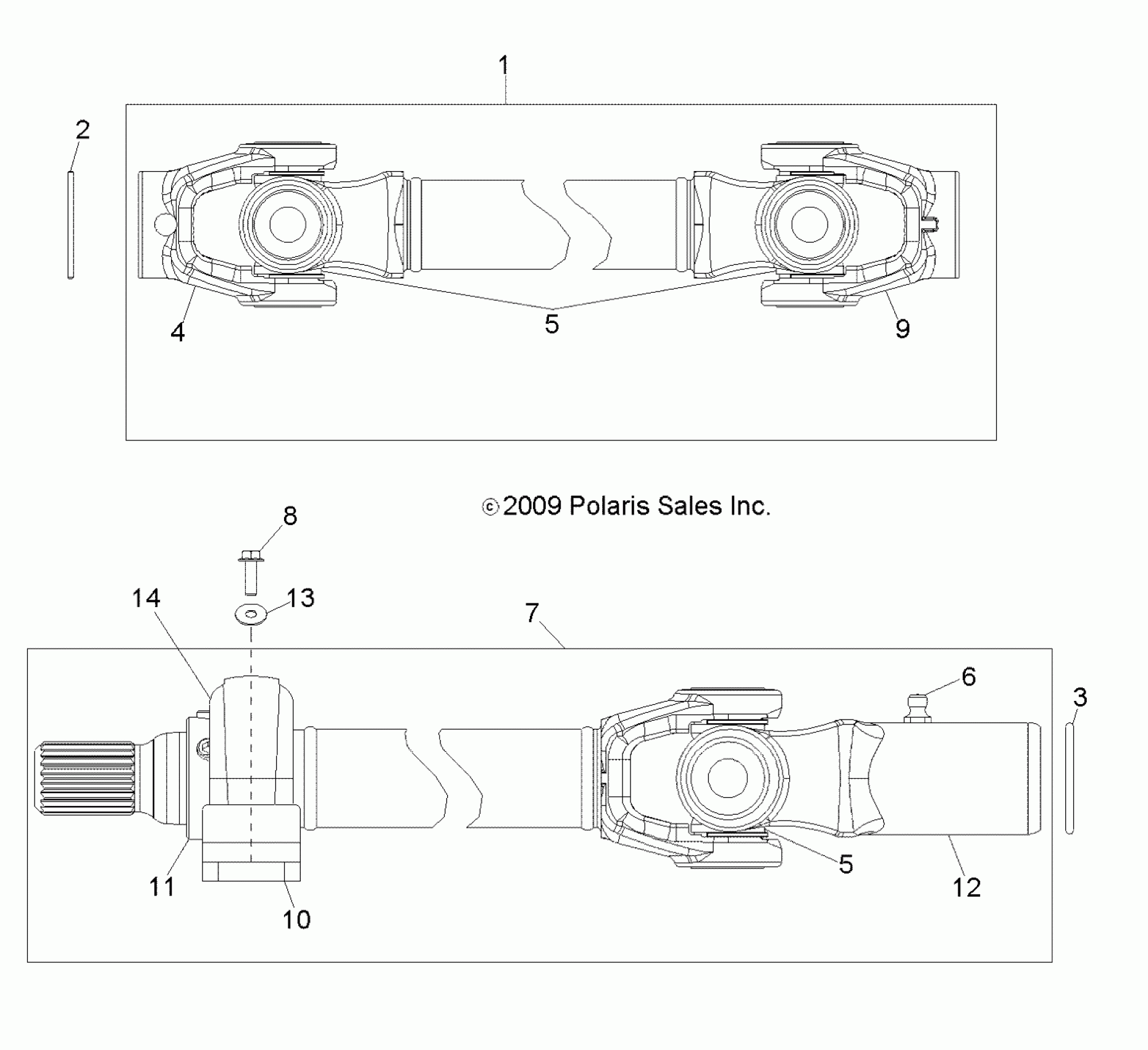

Polaris RZR 4 800 EFI - R10XH76AA DRIVE TRAIN, FRONT PROP SHAFT - R10XH76AA (49RGRSHAFTPROP10RZRS4) Diagram

#

Description

Price

1

Asm., Prop Shaft, Front, Split [Incl. 4,5,9]

1332905

Unavailable

2

PIN-SPRING,5/16 X 1 5/8-Y

7661913

$3.99

3

O-RING

5411965

$3.63

4

YOKE, FRONT GEARCASE

3260133

$111.99

5

KIT, CROSS AND BEARING

2202015

$59.99

5

KIT, CROSS AND BEARING

2202015

$59.99

6

FITTING-LUBRICATION 1/4-28

7080424

$4.79

7

Asm., Prop Shaft, Front w/Bearing [Incl. 5,6,10-12,14]

1332790

Unavailable

8

SCREW

7518181

$5.59

9

Yoke, Skip Tooth

3235053

$108.56

10

Housing, Isolated Bearing

3235149

Unavailable

11

Bearing, Front Prop

3514685

$103.99

12

YOKE, SPLINED W/FITTING

1590483

$127.99

13

Washer

7558403

$4.79

14

Ring, Rubber

3235150

Unavailable
