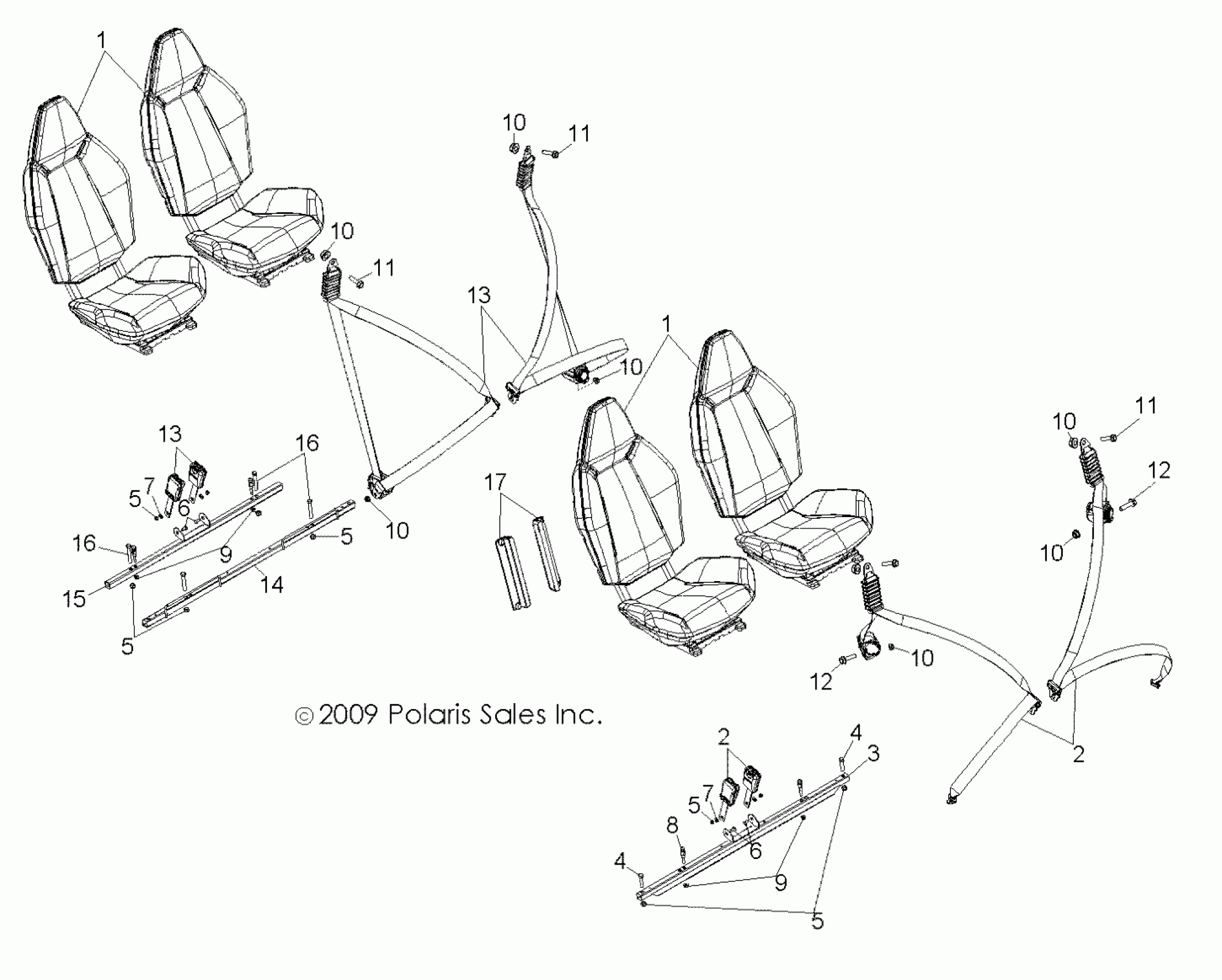

Polaris RZR 4 800 EFI - R10XH76AA BODY, SEAT MOUNTING and BELTS - R10XH76AA (49RGRSEATMTG10RZRS4) Diagram

#

Description
Price

1

ASM., SEAT [SEE SEAT ASM. PAGE FOR DETAILS]

-------

Unavailable

1

ASM., SEAT [SEE SEAT ASM. PAGE FOR DETAILS]

-------

Unavailable

2

Asm., Seat Belt, Front

2634012

Unavailable

2

Asm., Seat Belt, Front

2634012

Unavailable

3

Base, Seat, Matte' Black

1017454-458

$115.99

4

Screw

7518753

$7.19

4

Screw

7518753

$7.19

5

NUT, NYLON

7542525

$4.79

5

NUT, NYLON

7542525

$4.79

5

NUT, NYLON

7542525

$4.79

5

NUT, NYLON

7542525

$4.79

5

NUT, NYLON

7542525

$4.79

6

Bolt

7518820

$3.99

6

Bolt

7518820

$3.99

7

WASHER, FLAT

7556333

$3.99

7

WASHER, FLAT

7556333

$3.99

8

Plunger, Latch

5137240

Unavailable

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

9

NUT-5/16-18 HX FLG NL-Y

7542343

$4.79

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

10

NUT

7547066

$1.59

11

BOLT, SHOULDER

7519241

Unavailable

11

BOLT, SHOULDER

7519241

Unavailable

11

BOLT, SHOULDER

7519241

Unavailable

12

SCREW

7512520

$4.79

12

SCREW

7512520

$4.79

13

Asm., Seat Belt

2633939

Unavailable

13

Asm., Seat Belt

2633939

Unavailable

14

Support, Seat, Rear, Matte Black

1017323-458

$56.99

15

BASE, SEAT, REAR, BACK, MATTE BLACK

1017452-458

Unavailable

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

16

SCR-HH-7/16-14X2.75 GR5 ZY3 NY

7517873

$2.39

17

BUMPER, RUBBER, SEAT HOOP

5414011

$23.99
