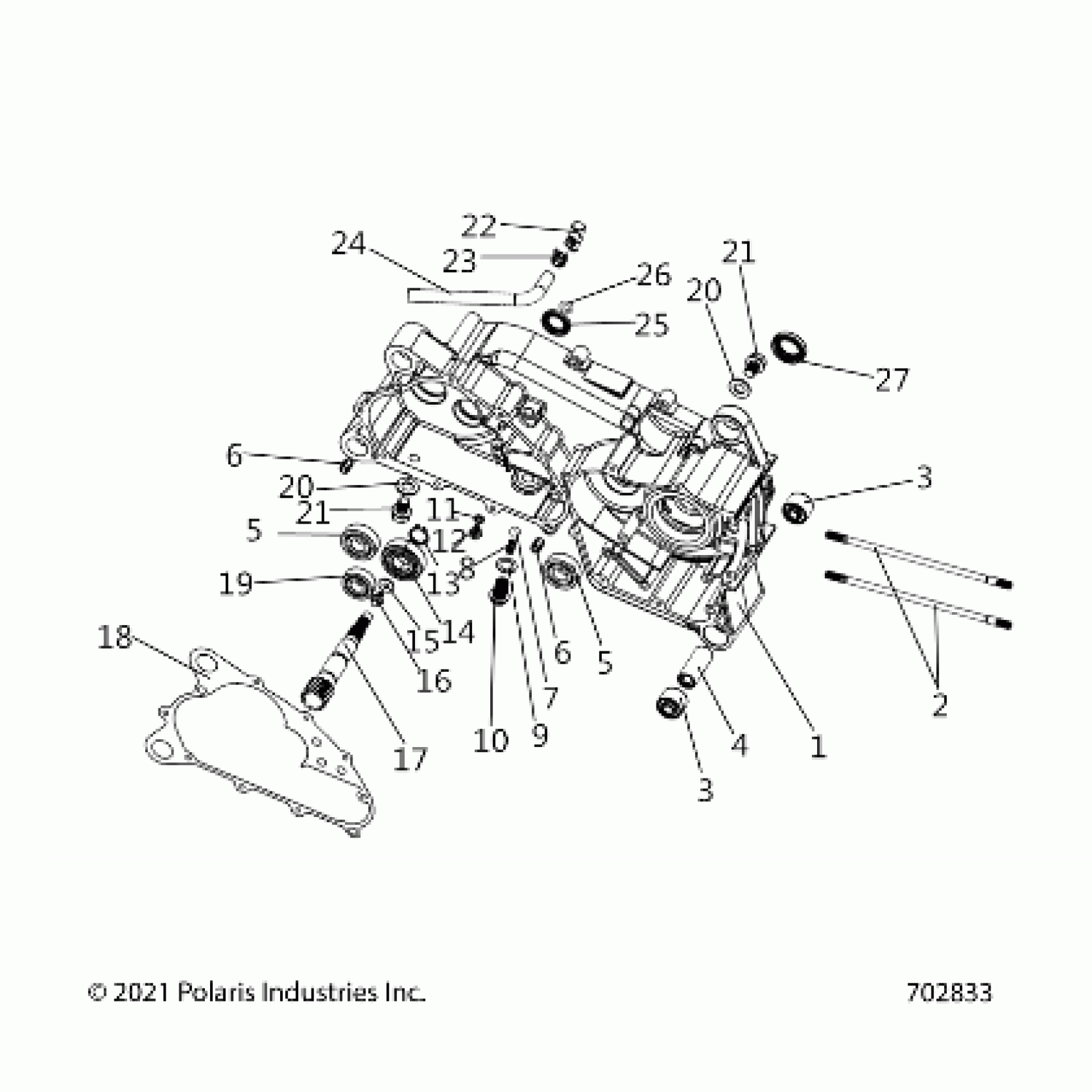

Polaris RZR 200 TLD EVAP (R01) - Z23HCE18A5/B5 ENGINE, CRANKCASE COMP, LEFT - Z23HCE18A5/B5 (702833) Diagram

#

Description
Price

1

CRANKCASE, LH

3055640

$184.79

2

BOLT,CYLINDER STUD M8x214

3055641

$5.59

3

ENGINE HANGER BUSH

3055642

$4.79

3

ENGINE HANGER BUSH

3055642

$4.79

4

LONG SLEEVE

3055711

$5.59

5

BALL BEARING 6203

3050322

$27.99

5

BALL BEARING 6203

3050322

$27.99

6

DOWEL PIN 10X14

3050298

$11.19

6

DOWEL PIN 10X14

3050298

$11.19

7

STEEL BALL SO10.319

3050035

$4.79

8

POSITIONING SPRING

3050034

$3.19

9

WASHER 14.2X22X1.3

3050033

$3.99

10

LOCATING BOLT M14X20.8

3050032

$4.79

11

WASHER 6

3055643

$1.59

12

BOLT M6x10

3055644

$1.59

13

CIRCLIP 20

3050292

$4.79

14

BALL BEARING 6204

3050323

$31.99

15

WASHER 6X18X1.6

3050036

$3.99

16

BOLT M6X12

3050306

$4.79

17

DRIVE SHAFT

3050291

$107.99

18

GEARBOX GASKET

3055720

$23.99

19

BALL BEARING 6202

3050324

$23.99

20

WASHER 12

3050030

$3.99

20

WASHER 12

3050030

$3.99

21

BOLT M12X1.5

3050031

$3.99

21

BOLT M12X1.5

3050031

$3.99

22

HOSE-3/8" SAE J30R7,33CM

8450178-33

$27.99

23

RING HOOP (12.5)

3055721

$3.19

24

WASTE PIPE SET

-------

Unavailable

25

OIL SEAL 20X32X6

3050026

$7.19

26

O-RING 10X2.3

3050293

$1.99

27

OIL SEAL 25X38X7

3055722

$11.19
