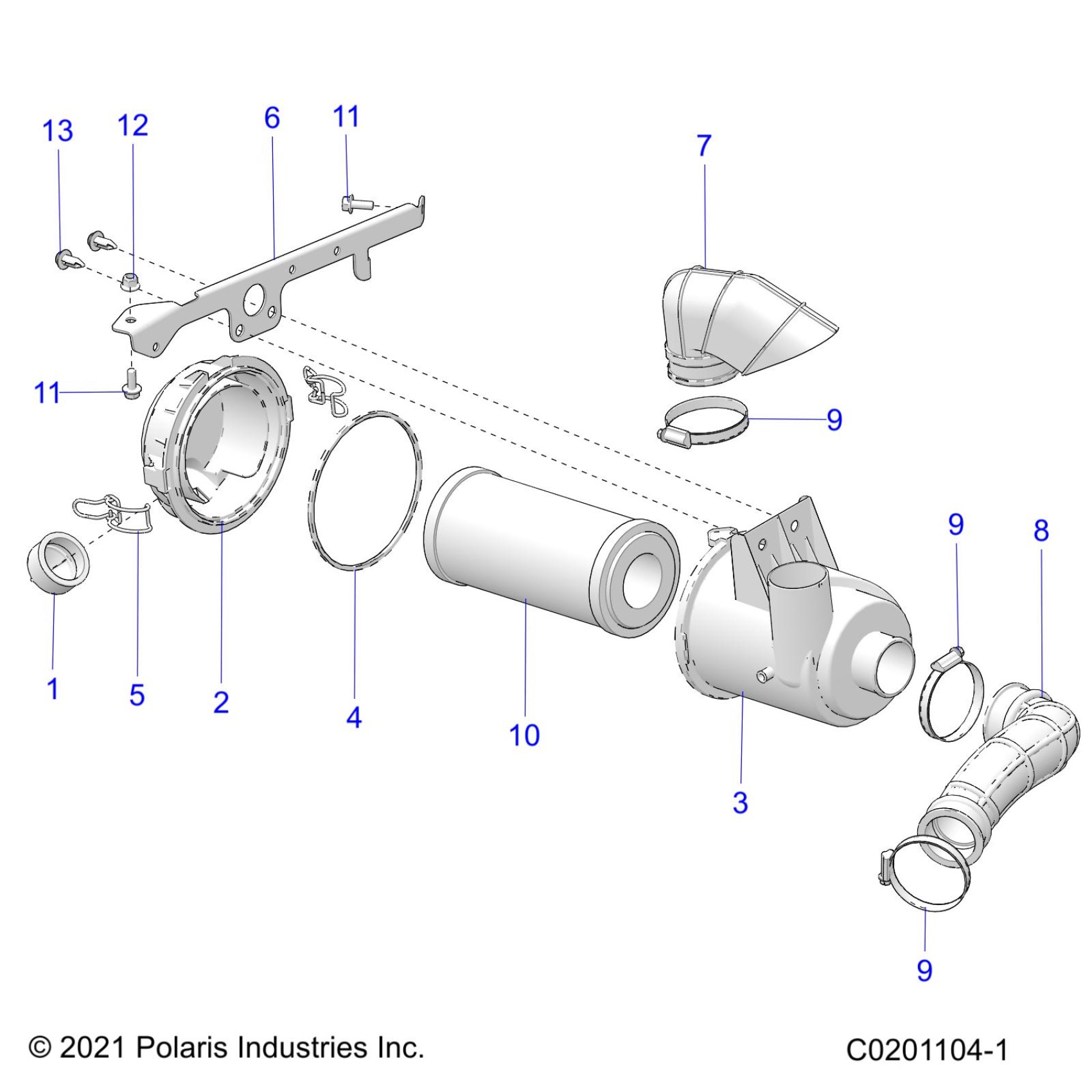

Polaris RZR 200 EVAP (R02) - Z23HCB18A2/B2 ENGINE, AIR INTAKE SYSTEM - Z23HCB18A2/B2 (C0201104-1) Diagram

#

Description
Price

-

ASM-AIR BOX (INCL. 1-5)

1244638

$101.17

1

BOOT-PURGE VALVE,AIR BOX

5416055

$4.84

2

COVER-AIRBOX

5453541

$36.41

3

BOX-AIR INTAKE

5458370

$38.71

4

SEAL-COVER,AIR BOX

5814907

$5.65

5

CLIP-AIRBOX

7082248

$28.49

6

BRKT-MOUNT,AIRBOX,BLK

5270894-458

$11.32

7

DUCT-HOOD, AIRBOX

5416115

$48.40

8

HOSE-INTAKE

5417804

$44.51

9

CLAMP-NARROW BAND, 1.38/2.38

7080511

$4.76

9

CLAMP-NARROW BAND, 1.38/2.38

7080511

$4.76

9

CLAMP-NARROW BAND, 1.38/2.38

7080511

$4.76

10

FILTER-AIR

7082249

$27.78

11

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.79

11

SCREW-HXFL-M6X1.0X16 8.8 ZPB

7518591

$3.79

12

NUT-M6 FLANGE,NYLOC

7547274

$1.19

13

RIVET-TUFLOK,.315-.325X.787

7661855

$1.19
