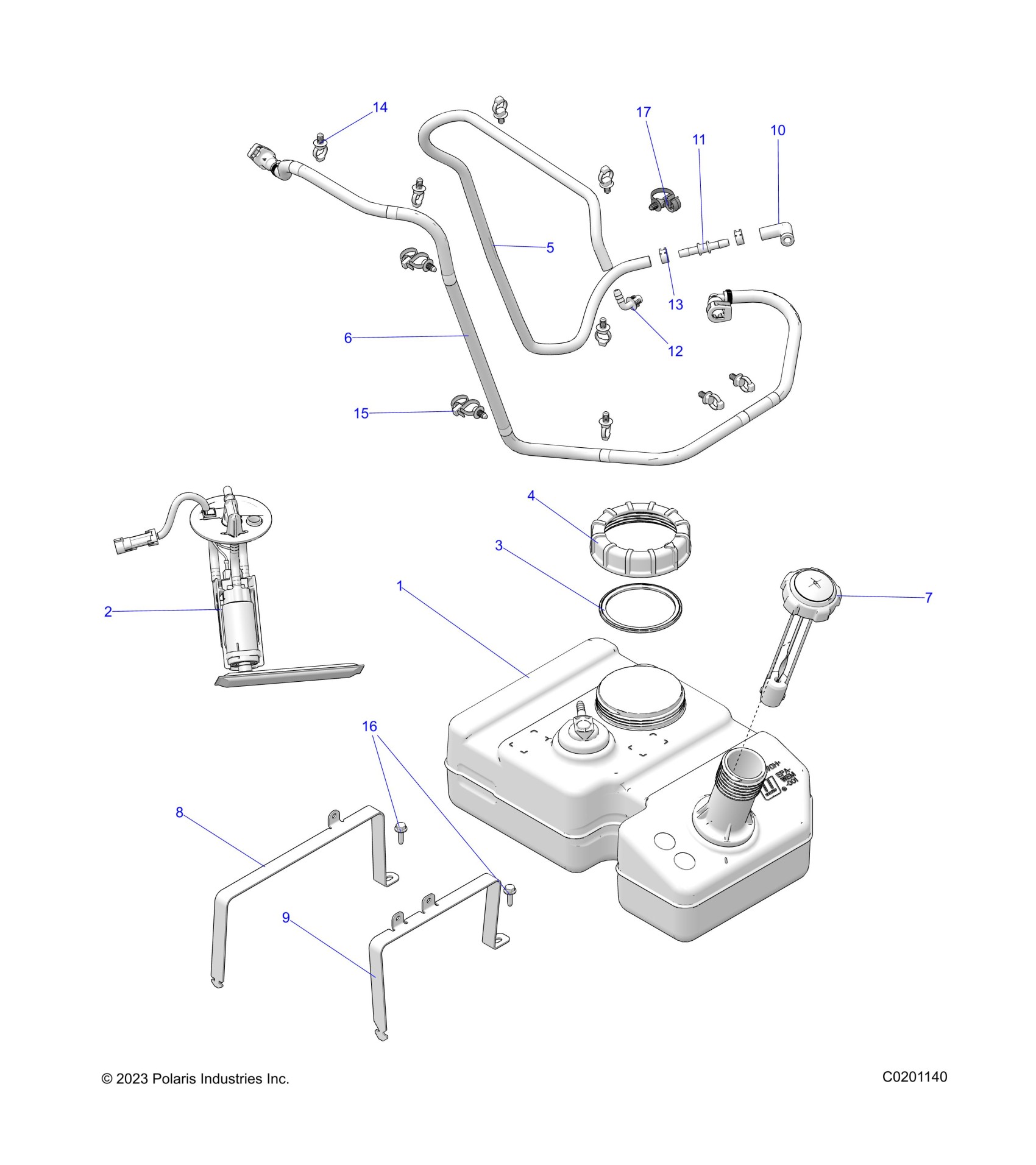

Polaris RZR 200 EVAP (R01) - Z26HCA18A4/A7/B4/B7 FUEL SYSTEM, FUEL TANK AND RELATED - Z26HCA18A4/A7/B4/B7 (C0201140) Diagram

#

Description
Price

1

ASM-FUEL TANK (INCL. 2-4)

2522076

$794.19

2

KIT- FUEL PUMP, YOUTH

2208125

$228.79

3

GASKET-PFA,RIBBED

5413451

$11.99

4

NUT-MASON JAR

5466417

$7.99

5

ASM-VENT LN,TANK TO FRAME,MZ [A4]

2522568

$43.99

6

ASM-FUEL LINE

2522278

$91.99

7

CAP-GAS W/GAUGE,7.5" [A4]

2882319

$47.99

7

CAP-GAS W/GAUGE [B4]

2522417

$47.99

8

STRAP-FUEL TANK,RIGHT,TAB,BLK

5267433-458

$19.99

9

STRAP-FUEL TANK,TAB,BLK

5272099-458

$23.99

10

FITTING,90,7.6X7.95MM

5416362

$9.59

11

FITTING-MALE-MALE,VENT,MZ

5416441

$7.19

12

FITTING-VENT LINE,RND,90,1/4"

5453906

$4.66

13

HOSE CLAMP, RED

7080003

$1.49

14

CLIP-ROUTING

7082599

$26.39

15

CLIP-FIR TREE,6.35,DOUBLE-LOOP

7082762

$3.19

16

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

17

CLIP-OMEGA,10-14MM,HEAT-STAB

7082906

$1.49
