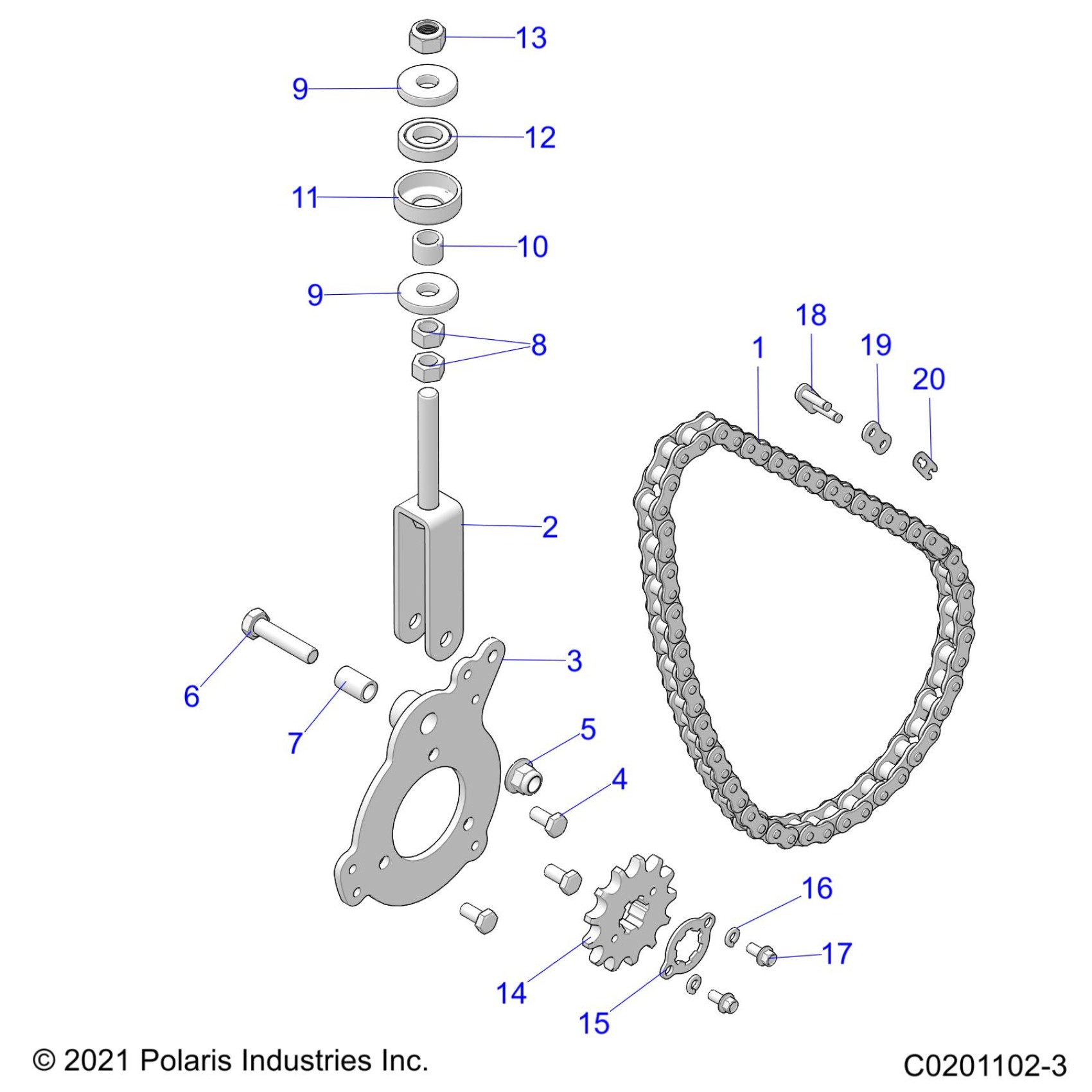

Polaris RZR 200 EVAP (R01) - Z25HCA18A4/A7/B4/B7 DRIVE TRAIN, CHAIN TENSIONER AND SPROCKET - Z25HCA18A4/A7/B4/B7 (C0201102-3) Diagram

#

Description
Price

1

CHAIN- 50X55P

3225035

$69.99

2

WELD-BRKT,CHAIN TENSIONING

1026216

$14.56

3

WELD-BRKT,ENGINE HANGER

1026752

$14.56

4

SCR-HH-M8X1.25X16 8.8 ZOD

7519124

$3.97

5

NUT-HXFL-M10X1.5 8 ZTB NYL

7548029

$2.38

6

SCR-HH-M10X1.5X45 8.8 ZY3

7521136

$7.27

7

COLLAR-ENGINE HANGER PLATE

7557012

$3.97

8

NUT-M12-1.25,ZINC CLEAR

7547345

$6.46

9

WASHER,M12 FLAT DAC

7557000

$3.97

9

WASHER,M12 FLAT DAC

7557000

$3.97

10

SPACER-ENGINE ADJ ALIGNMENT SPACER-ENGINE

----

Unavailable

11

SPACER-ENGINE ADJ CUP

----

Unavailable

12

BUSHING-ENGINER ADJ ISOLATOR

----

Unavailable

13

NUT-HEX,M12X1.25 8 ZPC NYL

7547796

$3.97

14

SPROCKET-DRIVE,50P,13T

3225034

$29.03

15

KEEPER-SPROCKET

7710855

$5.65

16

WASHER,LOCK Substituted by 7552804

7552616

$3.17

17

SCREW-HXFL-M6X1.0X12 10.9 ZPC

7517257

$9.52

18

LINK-MASTER

3225037

$9.52

19

CLIP-MASTER LINK,INNER

3225038

$9.52

20

CLIP-MASTER LINK,OUTER

3225036

$9.52
