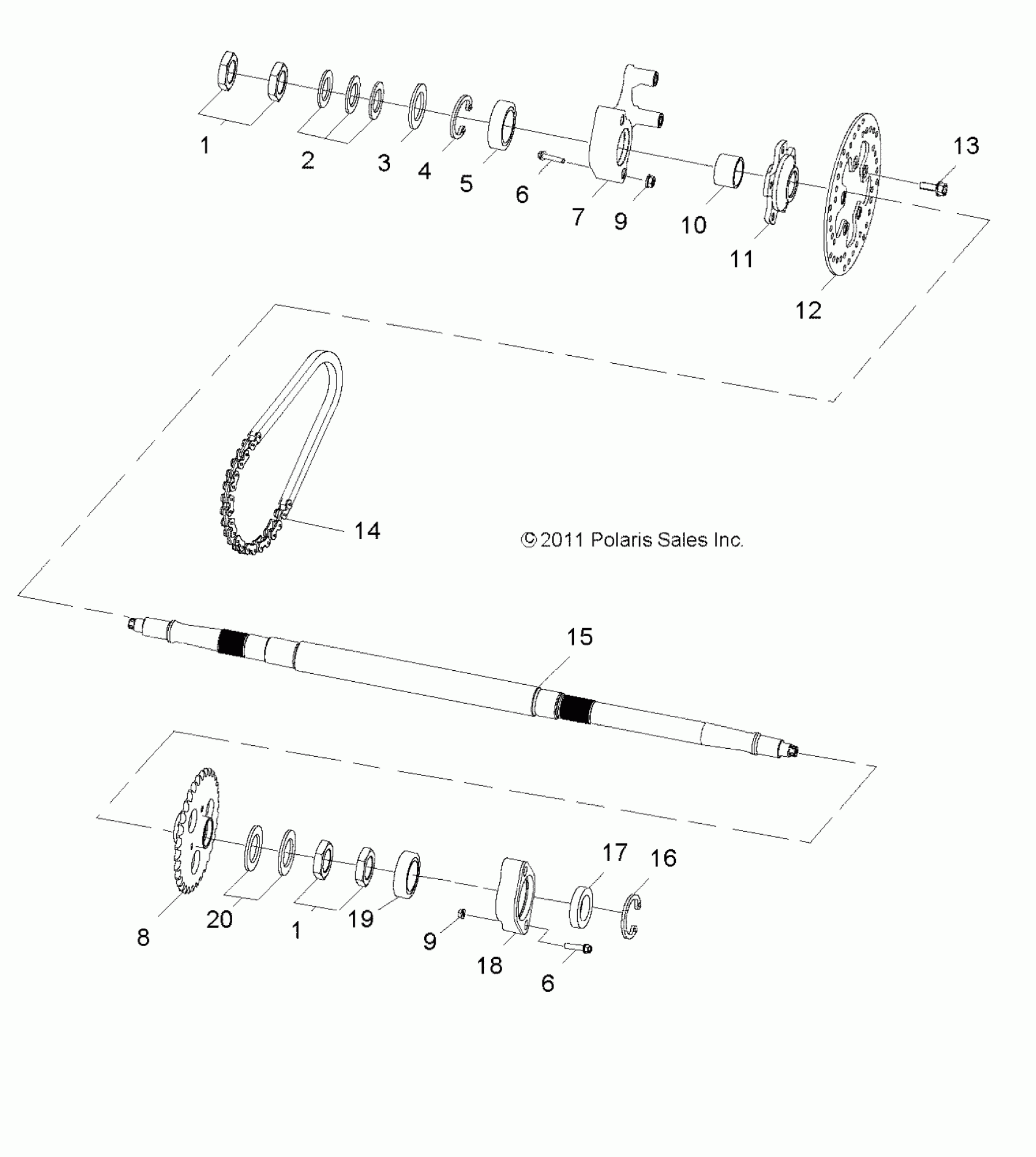

Polaris RZR 170 - R15YAV17AA/AF/BA/BF WHEELS, REAR AXLE - R15YAV17AA/AF/BA/BF (49RGRAXLE12RZR170) Diagram

#

Description
Price

1

NUT

0454473

$31.99

1

NUT

0454473

$31.99

2

WASHER

0454474

$10.39

3

WASHER

0454475

$11.19

4

CLIP, CIR

0454476

$11.19

5

BEARING, BALL

0454477

$39.99

6

BOLT

0454478

$7.19

6

BOLT

0454478

$7.19

7

HOUSING, AXLE, REAR, RH

0454479

Unavailable

8

ASM., DRIVE SPROCKET

0454503

$127.99

9

NUT, FLANGE

0453706

$4.79

9

NUT, FLANGE

0453706

$4.79

10

SPACER, COLLAR, AXLE

0454300

$8.79

11

MOUNT, BRAKE DISC

0454481

$103.99

12

DISC, BRAKE

0454482

$163.99

13

BOLT, BRAKE DISC

0452904

$7.19

14

ASM., DRIVE CHAIN

0454771

$109.99

14

LINK, CHAIN, MASTER

0454905

Unavailable

15

AXLE

0454660

$351.99

16

RETAINER

0452717

$10.39

17

SEAL, OIL

0452752

$15.99

18

HOUSING, AXLE, REAR, LH

0454494

$67.19

19

BEARING

0452715

Unavailable

20

WASHER

0454496

$6.39
