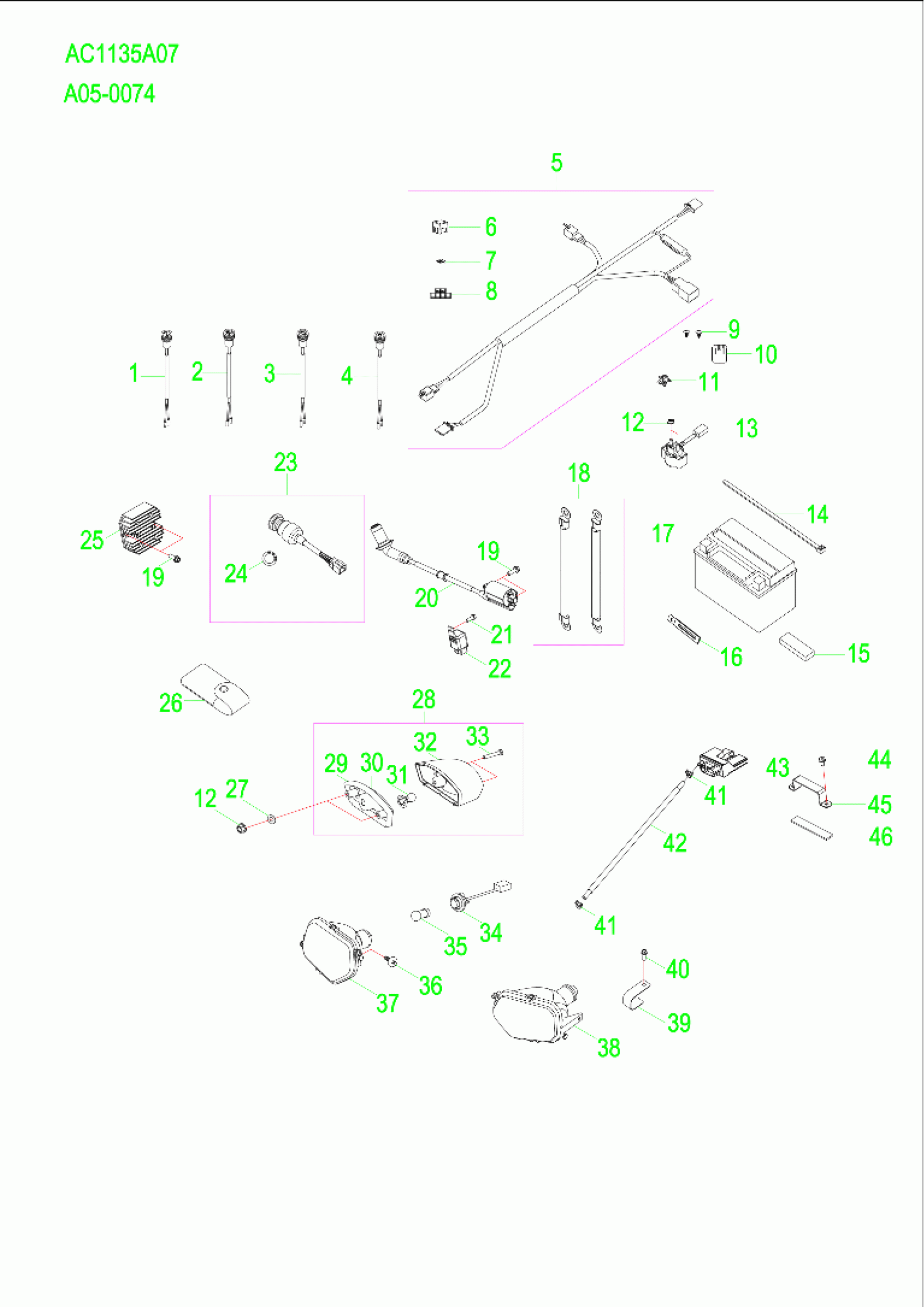

Polaris RZR 170 - R15YAV17AA/AF/BA/BF ELECTRICAL PARTS - R15YAV17AA/AF/BA/BF (A00033) Diagram

#

Description
Price

1

INDICATOR, NEUTRAL

0454654

$23.99

2

INDICATOR, REVERSE

0454655

$27.99

3

INDICATOR, TROUBLE

0455023

$27.99

4

INDICATOR, LOW FUEL

0455202

$11.19

5

HARNESS-MAIN,WIRE,RZR170

0455319

$444.99

6

RUBBER CAP

0455189

$5.59

7

JUMPER

0451019

$6.39

8

TERMINAL BOARD, SPEED CONTROL

0455188

$31.99

9

SCREW

0455026

$4.79

10

DUST COVER

0455027

$27.99

11

GROUND, CABLE BATTERY

0455079

$6.39

12

NUT

0450880

$3.99

12

NUT

0450880

$3.99

13

STARTER RELAY

0455028

$53.59

14

STRAP

0450559

$2.39

15

FOAM

0452778

$19.99

16

STRAP

0454939

$12.79

17

BATTERY

4011434

$91.99

18

ASM., BATTERY CABLE

0454335

Unavailable

19

BOLT

0454011

$3.99

19

BOLT

0454011

$3.99

20

ASM., IGNITION COIL

0455029

$67.99

21

Bolt

0450701

$1.49

22

RELAY, EFI

0455030

$41.79

23

Asm., Switch, Main

0455551

$99.99

23

Key, Blank, LH

0455548

$11.43

23

Key, Blank, RH

0455549

$10.39

24

DECAL, SWITCH, MAIN, IGNITION

0454806

$7.19

25

RECITIFIER/REGULATOR

0455032

$83.99

26

POUCH, TOOL

0454337

$51.99

27

WASHER

0450041

$4.79

28

ASM., TAILLIGHT

0454722

Unavailable

29

GASKET

0451799

$6.39

30

SOCKET, TAILLIGHT

0454714

Unavailable

31

BULB, TAILLIGHT

0452830

$9.59

32

LENS, TAILLIGHT

0452995

Unavailable

33

BOLT

0451801

$3.99

34

SOCKET, HEADLIGHT

0454867

$47.99

35

BULB, HEADLIGHT

0454763

$19.99

36

Bolt

0450667

$5.59

37

LENS SET, HEADLIGHT, RH

0454291

$83.99

38

LENS SET, HEADLIGHT, LH

0454290

$83.99

39

CLIP, RETAINER, CABLE

0454394

$11.19

40

BOLT

0450297

$4.79

41

CLAMP

0455033

$3.99

41

CLAMP

0455033

$3.99

42

HOSE

0455034

$14.39

43

ECU, RZR 170

0455166

$279.99

44

BOLT

0454785

$3.99

45

BRACKET, ECU

0455019

$8.79

46

FOAM

0455020

$5.59
