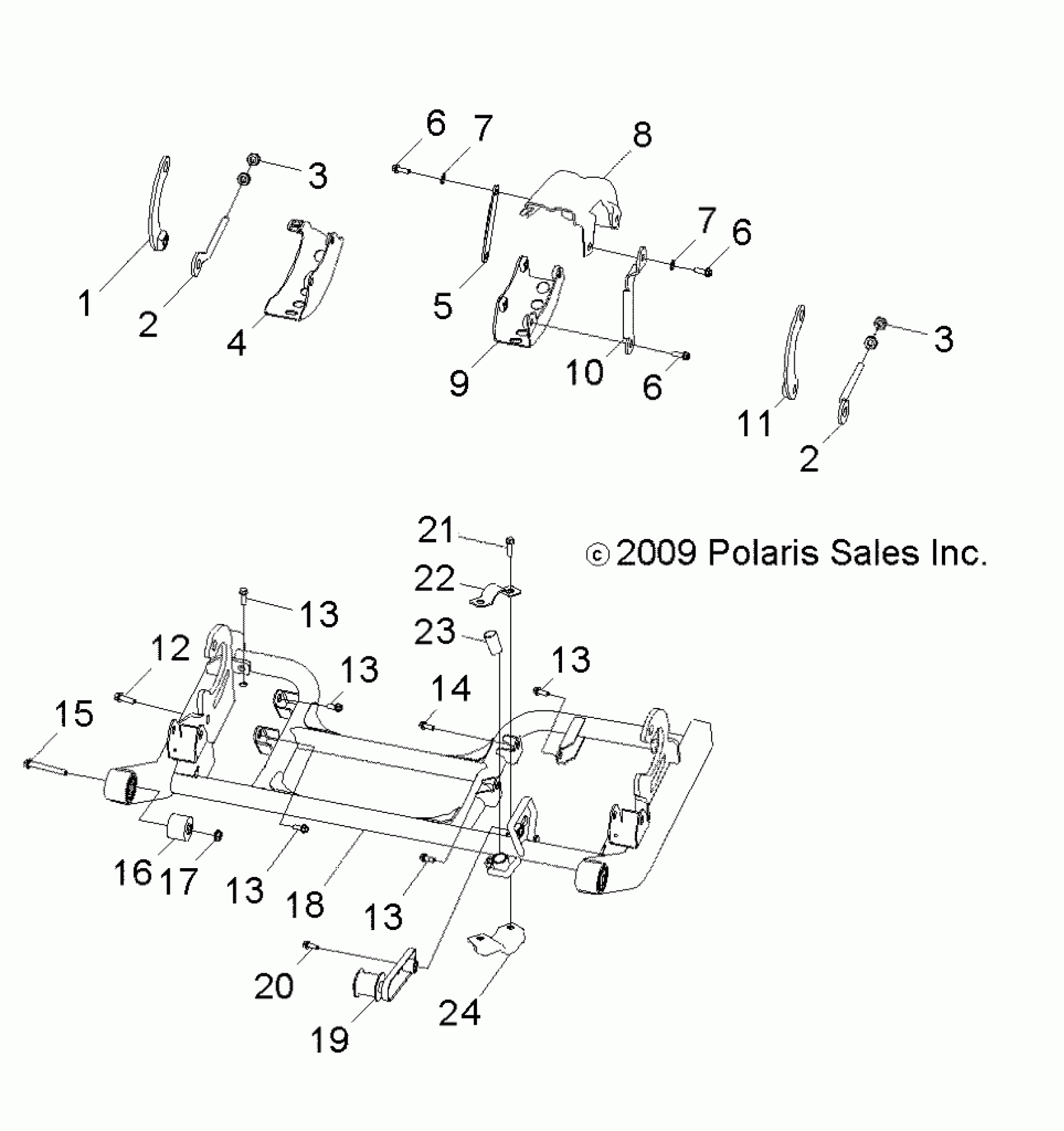

Polaris RZR 170 - R12VA17AA/AC CHASSIS, SWING ARM - R12VA17AA/AC (49RGRSWINGARM10RZR170) Diagram

#

Description
Price

1

CLAMP, TUBE, AXLE HUB, RH

0454508

$28.56

2

ADJUSTER, CHAIN

0453557

$28.32

2

ADJUSTER, CHAIN

0453557

$28.32

3

NUT

0453818

$5.56

3

NUT

0453818

$5.56

4

SHIELD, DISC, BRAKE

0454507

$53.24

5

BRACKET, CHAIN GUARD, RH

0454506

$33.87

6

BOLT

0452030

$4.76

6

BOLT

0452030

$4.76

6

BOLT

0452030

$4.76

7

WASHER, FLAT

0452198

$3.17

7

WASHER, FLAT

0452198

$3.17

8

COVER, SPROCKET, REAR

0454264

$66.49

9

GUARD, SPROCKET, REAR

0454275

$43.56

10

BRACKET, CHAIN GUARD, LH

0454505

$38.71

11

CLAMP, TUBE, AXLE HUB, LH

0454504

Unavailable

12

BOLT

0454448

$5.56

13

BOLT

0453669

$4.76

13

BOLT

0453669

$4.76

13

BOLT

0453669

$4.76

13

BOLT

0453669

$4.76

13

BOLT

0453669

$4.76

14

BOLT

0452031

$12.21

15

BOLT

0454509

$10.32

16

BUSHING

0454510

$15.19

17

NUT, FLANGE

0453706

$4.76

18

ARM, SWING, BLACK

0454851-067

$439.99

19

ASM., CHAIN TENSIONER

0452954

$90.24

20

BOLT, FLANGE

0451689

$5.56

21

BOLT

0450298

$2.38

22

CLAMP, BUFFER, BLACK

0454651-067

Unavailable

23

BUFFER, CHAIN

0454652

$7.10

24

MOUNT, BUFFER, BLACK

0454650-067

$40.46
