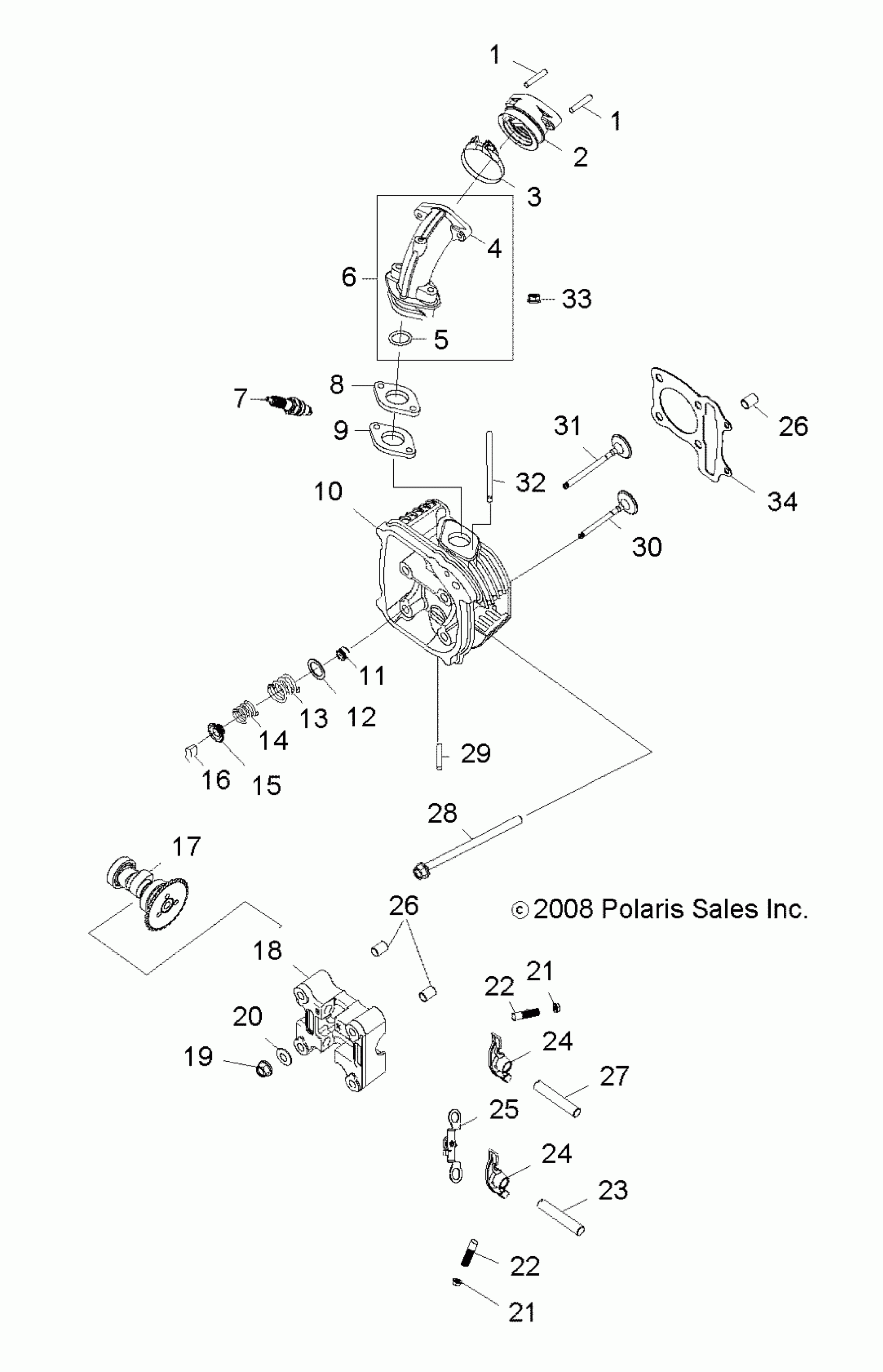

Polaris RZR 170 - R11VA17AA ENGINE, CYLINDER HEAD - R11VA17AA (49RGRCYLINDER09RZR170) Diagram

#

Description
Price

1

STUD

0452405

$3.99

1

STUD

0452405

$3.99

2

ADAPTER, CARBURETOR

0454511

$55.99

3

CLAMP, HOSE

0454512

$7.19

4

MANIFOLD

-------

Unavailable

5

O-RING

0452459

$4.79

6

ASM., MANIFOLD, INTAKE

0454513

$71.99

7

PLUG, SPARK

0453034

$3.99

8

INSULATOR, MANIFOLD

0453449

$12.79

9

GASKET, MANIFOLD

0453451

Unavailable

10

ASM., CYLINDER, HEAD [Incl. 11-16,30,31]

0454848

Unavailable

11

SEAL, VALVE

0452390

$8.79

12

WASHER, VALVE, SPRING, OUTER

0452388

$6.39

13

SPRING, VALVE, OUTER

0454515

$12.79

14

SPRING, VALVE, INNER

0454516

$7.19

15

RETAINER, VALVE, SPRING

0452387

$23.99

16

CLIP, RETAINER

0452389

$7.19

17

ASM., CAM SHAFT

0454517

$99.99

18

BRACKET, CAM SHAFT

0454518

$63.99

19

NUT, FLANGE

0450268

$1.49

20

WASHER

0452425

$3.99

21

NUT, TAPPET ADJUST

0452424

$4.99

21

NUT, TAPPET ADJUST

0452424

$4.99

22

SCREW, TAPPET ADJUST

0452423

$10.39

22

SCREW, TAPPET ADJUST

0452423

$10.39

23

SHAFT, EXHAUST, ROCKER ARM

0454519

$10.39

24

ARM, VALVE, ROCKER

0452409

$39.99

24

ARM, VALVE, ROCKER

0452409

$39.99

25

ASM., DECOMP. RELEASE

0452414

$23.99

26

PIN, DOWEL

0450142

$3.99

26

PIN, DOWEL

0450142

$3.99

27

SHAFT, INTAKE, ROCKER ARM

0454520

$27.99

28

BOLT

0454521

$5.59

29

BOLT, STUD

0452398

$3.99

30

VALVE, EXHAUST

0454522

$63.99

31

VALVE, INTAKE

0454523

$47.99

32

BOLT, STUD

0454524

$7.19

33

Nut, Flange

0450880

$3.99

34

GASKET, CYLINDER HEAD

0454365

Unavailable
