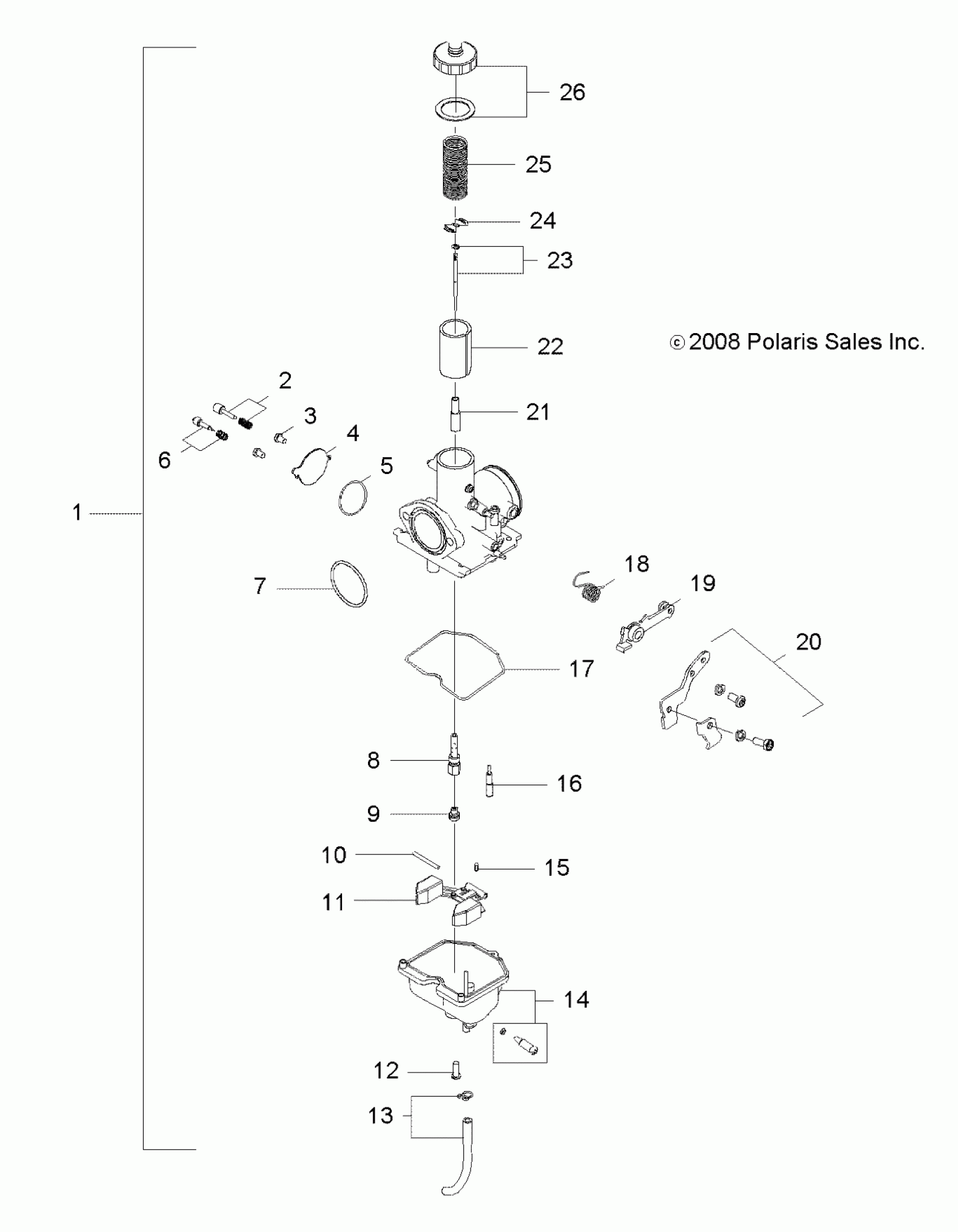

Polaris RZR 170 - R11VA17AA ENGINE, CARBURETOR - R11VA17AA (49ATVCARB09RZR170) Diagram

#

Description
Price

1

ASM., CARBURETOR [INCL. ALL]

0454997

Unavailable

2

ASM., AIR SCREW

0454491

$7.19

3

ASM., SCREW

0452541

$3.19

4

COVER, DIAPHRAGM

0452547

$3.99

5

O-RING

0452550

$1.59

6

ASM., SCREW, THROTTLE STOP

0452549

$5.59

7

O-RING

0452536

$1.59

8

VALVE, NEEDLE

0452545

$27.99

9

JET, MAIN, CARB, 100

0452854

$13.59

10

PIN, FLOAT

0452534

$3.19

11

FLOAT

0452546

$35.99

12

ASM., SCREW

0452540

$3.19

13

ASM., DRAIN TUBE

0452552

$31.99

14

FLOAT, BODY

0452535

$63.99

15

VALVE, FLOAT

0452533

$27.99

16

JET, PILOT

0452553

$14.95

17

SEAL, FLOAT

0453032

Unavailable

18

SPRING

0452543

$6.39

19

CHOKE, LEVER

0452538

$11.43

20

SUPPORT, CABLE

0453080

$31.99

21

NEEDLE, JET

0452539

$10.39

22

THROTTLE, VALVE

0452554

$87.99

23

ASM., JET NEEDLE

0452551

$27.99

24

CLIP, NEEDLE

0452542

$3.99

25

SPRING

0452548

Unavailable

26

ASM., CAP

0452544

$39.99
