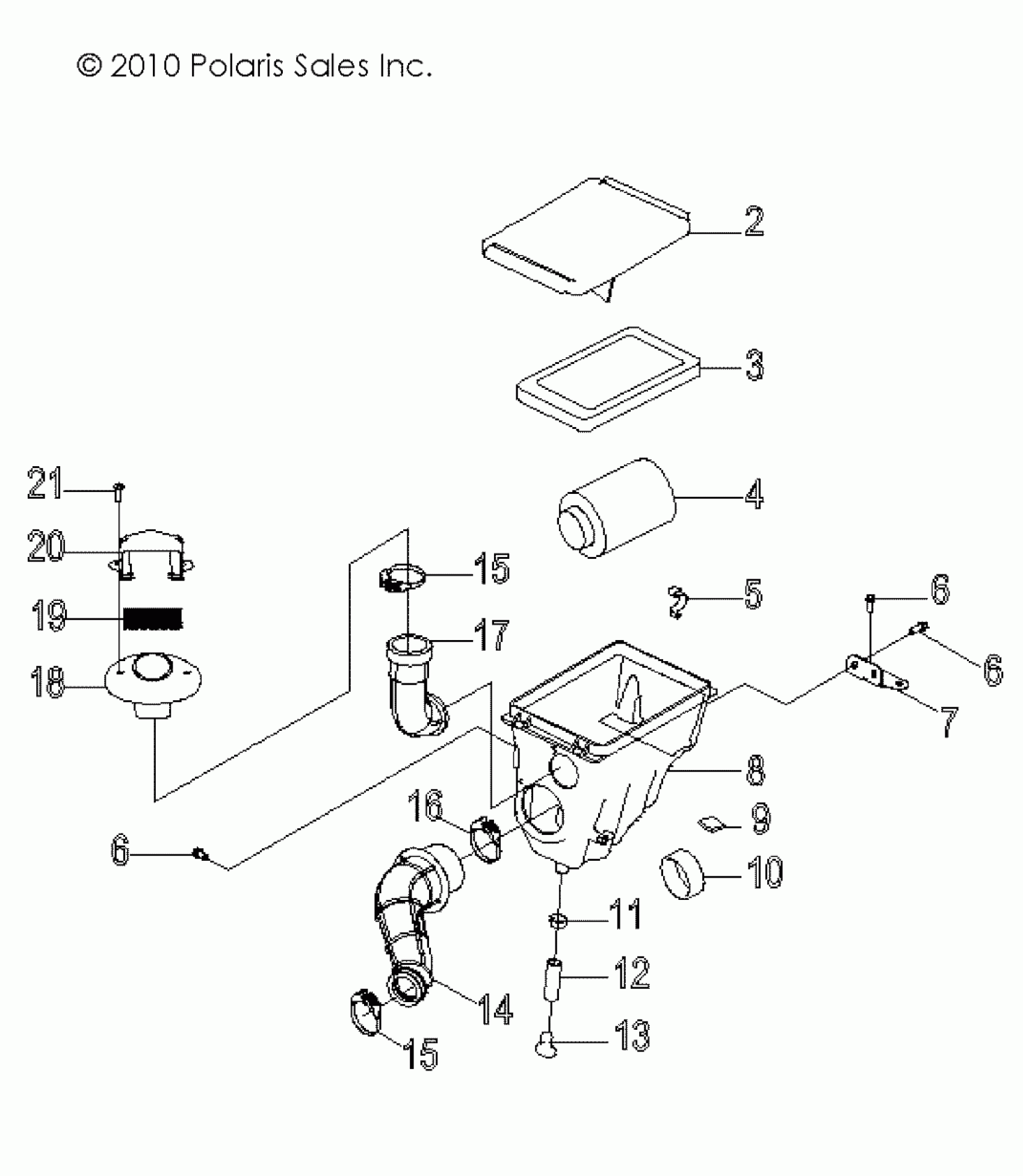

Polaris RZR 170 - R11VA17AA ENGINE, AIR INTAKE SYSTEM - R11VA17AA (49RGRAIRBOX11RZR170) Diagram

#

Description
Price

2

Cover, Air Box

0452560

$35.99

3

Gasket, Cover

0452569

$10.39

4

ASM-FILTER,AIR BOX

1262218

$23.99

5

CLIP, AIR BOX

0452565

$4.79

6

Bolt, Flange

0452816

Unavailable

6

Bolt, Flange

0452816

Unavailable

6

Bolt, Flange

0452816

Unavailable

7

BRACKET, SUPPORT

0454780

$10.39

8

BOX, AIR CLEANER

0454850

$51.99

9

Tape, Antivibration

0450863

$3.99

10

SPACER, AIR FILTER

0452557

$23.99

11

Clamp

0452566

$4.79

12

Hose, Drain

0452567

$3.99

13

Plug, Trap

0452568

$12.79

14

BOOT

0454778

Unavailable

15

CLAMP, HOSE

0454277

$13.59

15

CLAMP, HOSE

0454277

$13.59

16

Clamp

0452561

$7.99

17

INLET, AIR BOX, MID

0454774

$35.99

18

MOUNT, AIR BOX, INLET

0454784

$19.99

19

MESH, METAL

0454779

$12.79

20

INLET, COVER

0454777

$47.99

21

BOLT

0450622

$2.39
