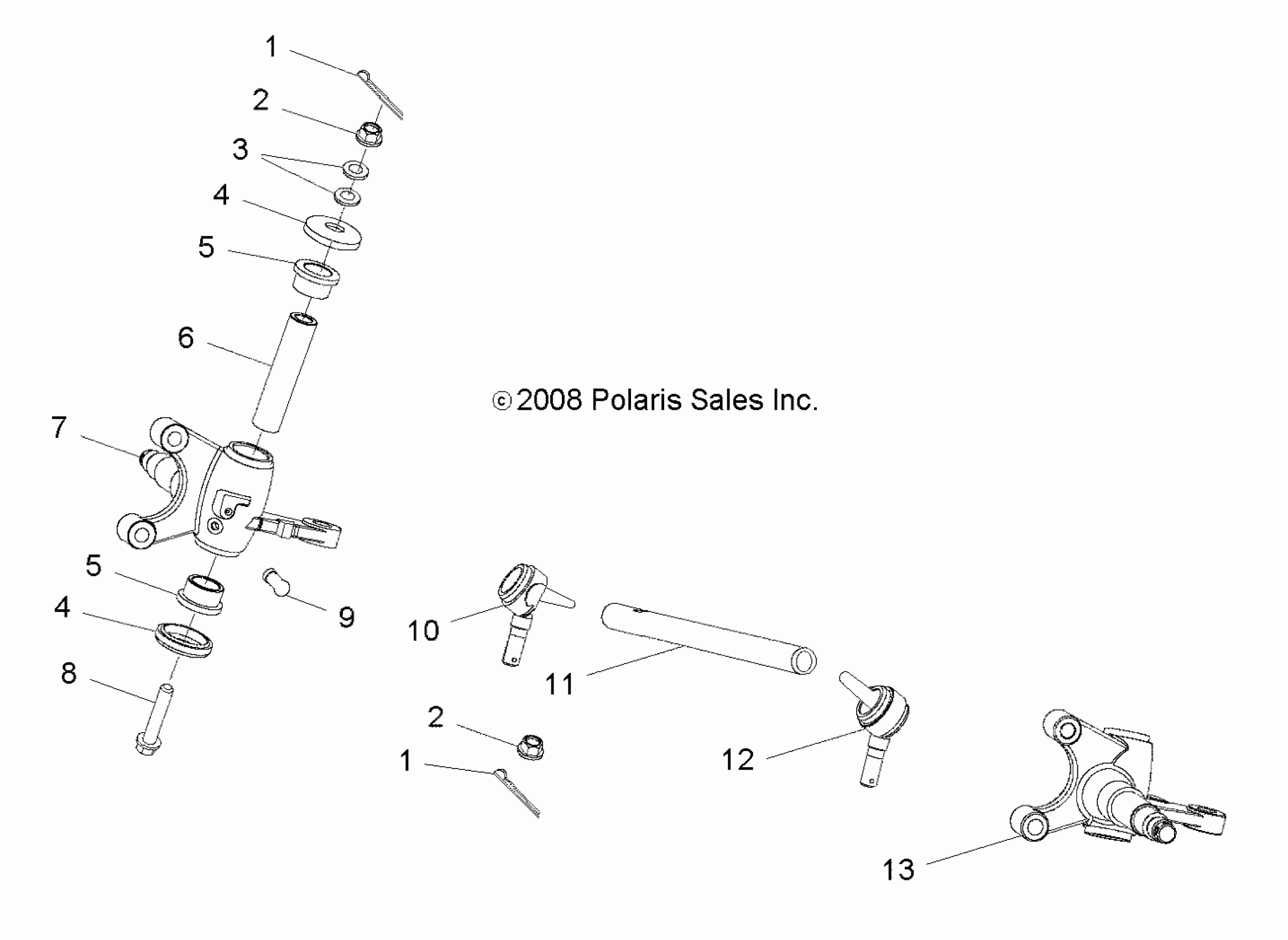

Polaris RZR 170 (R10) - Z17YAV17A2/A5 STEERING, TIE RODS - Z17YAV17A2/A5 (49RGRTIEROD09RZR170) Diagram

#

Description
Price

1

PIN, COTTER

0453819

$3.17

1

PIN, COTTER

0453819

$3.17

2

NUT, LOCK

0450502

$9.52

2

NUT, LOCK

0450502

$9.52

3

WASHER

0453513

$4.76

4

BOOT, DUST

0454470

$5.65

4

BOOT, DUST

0454470

$5.65

5

COLLAR, LOCKING

0454407

$6.10

5

COLLAR, LOCKING

0454407

$6.10

6

SPACER, KNUCKLE, STEERING

0454408

$23.74

7

KNUCKLE, FRONT, RH

0454893

Unavailable

8

BOLT

0454409

$10.32

9

FITTING, GREASE

0450320

$6.46

10

ROD END, RH

0454600

$75.99

11

TIE ROD

0454601

$47.49

12

ROD END, LH

0454599

$75.99

13

KNUCKLE, FRONT, LH

0454892

Unavailable
