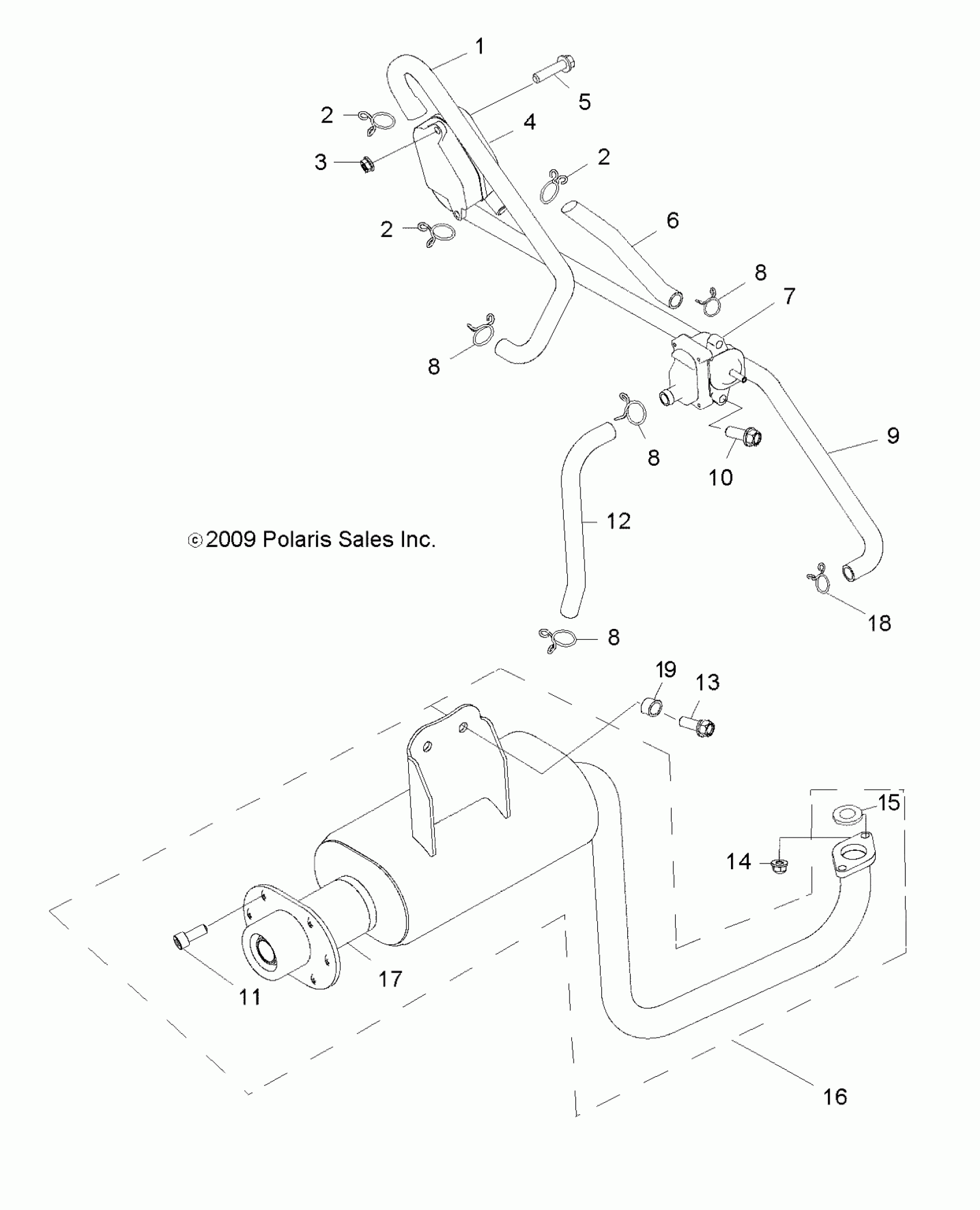

Polaris RZR 170 (R10) - Z17YAV17A2/A5 ENGINE, EXHAUST - Z17YAV17A2/A5 (49RGREXHAUST10RZR170) Diagram

#

Description
Price

1

TUBE, BREATHER, VENTILATED

0454396

$27.99

2

Clip, Retaining

0453187

Unavailable

2

Clip, Retaining

0453187

Unavailable

2

Clip, Retaining

0453187

Unavailable

3

NUT

0450880

$3.99

4

SEPARATOR, OIL

0454397

$55.99

5

BOLT

0452215

$3.99

6

HOSE, OIL, FORMED

0454540

$31.99

7

VALVE-INTAKE,DUAL,RZR 170

0455437

Unavailable

8

Clip

0453932

$4.79

8

Clip

0453932

$4.79

8

Clip

0453932

$4.79

8

Clip

0453932

$4.79

9

HOSE, OIL, FORMED

0454541

$27.99

10

BOLT

0453517

$3.99

11

BOLT

0453130

$5.99

12

HOSE, RUBBER

0454597

$27.99

13

BOLT

0452123

$3.99

14

NUT

0454401

$10.39

15

GASKET

0453672

Unavailable

16

ASM., EXHAUST PIPE [INCL. 11,15,17]

0455046

$475.19

17

ARRESTOR-SPARK,EXHAUST,RZR170

0454262

$63.99

18

Clip

0453516

$3.99

19

BUSHING

0454662

$9.59
