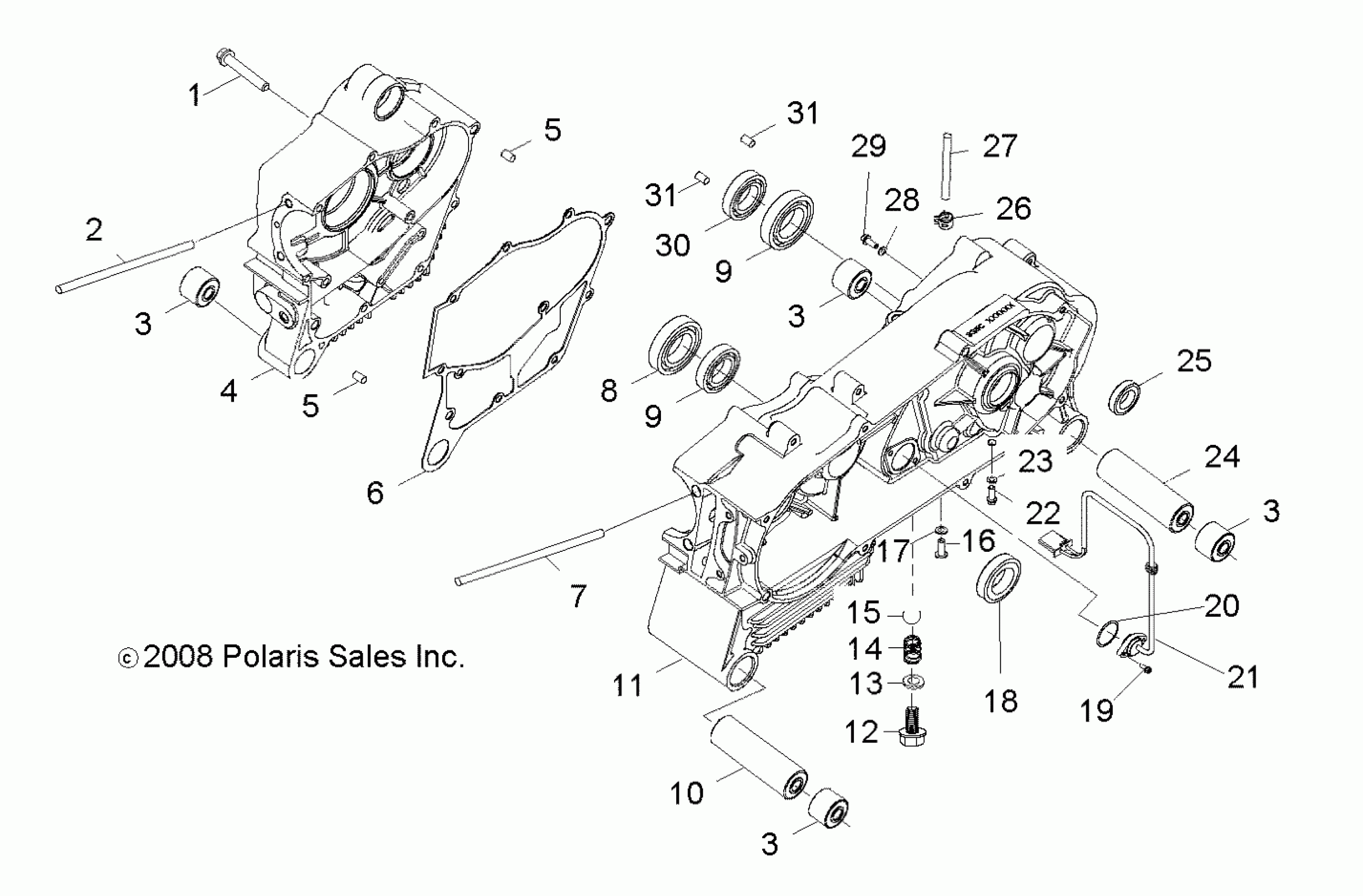

Polaris RZR 170 (R10) - Z17YAV17A2/A5 ENGINE, CRANKCASE - Z17YAV17A2/A5 (49RGRCRANKCASE09RZR170) Diagram

#

Description
Price

-

ASM., ENGINE W/O CARB, EFI

0455070

$3,999.99

1

BOLT

0452344

$4.35

2

STUD

0454565

$28.56

3

BUSHING

0454566

$8.73

3

BUSHING

0454566

$8.73

3

BUSHING

0454566

$8.73

3

BUSHING

0454566

$8.73

4

CRANKCASE, RH

0454567

$284.99

5

PIN, DOWEL

0452342

$3.97

5

PIN, DOWEL

0452342

$3.97

6

GASKET

0454568

$10.44

7

STUD

0454569

$28.49

8

BEARING, BALL

0452345

$35.71

9

BEARING, BALL

0452348

$31.75

9

BEARING, BALL

0452348

$31.75

10

SPACER, COLLAR

0454570

$23.81

11

CRANKCASE, LH

0454571

$579.99

12

BOLT

0452137

$7.14

13

WASHER, FLAT

0452136

$4.35

14

SPRING, DETENT

0452135

$1.59

15

BALL, STEEL

0452134

$5.65

16

BOLT

0452132

$5.99

17

WASHER, FLAT

0452133

$4.74

18

SEAL, OIL

0452341

$40.46

19

BOLT

0452138

$3.17

20

O-RING, GEAR POSITION SENSOR

0452129

$1.60

21

SWITCH, CRANKCASE

0452329

$44.99

22

BOLT

0454572

$4.76

23

WASHER, FLAT

0452712

$4.35

24

SPACER, COLLAR, REAR

0454573

$23.81

25

SEAL, OIL

0452340

$12.13

26

CLIP-OIL SEPARATOR

0453516

$3.97

27

FUEL LINE 1/4"SAE #30R7

8450040

Unavailable

28

WASHER, FLAT

0452337

$4.35

29

BOLT

0452330

$4.35

30

BEARING

0452156

$15.87

31

PIN, DOWEL

0450142

$3.97

31

PIN, DOWEL

0450142

$3.97
