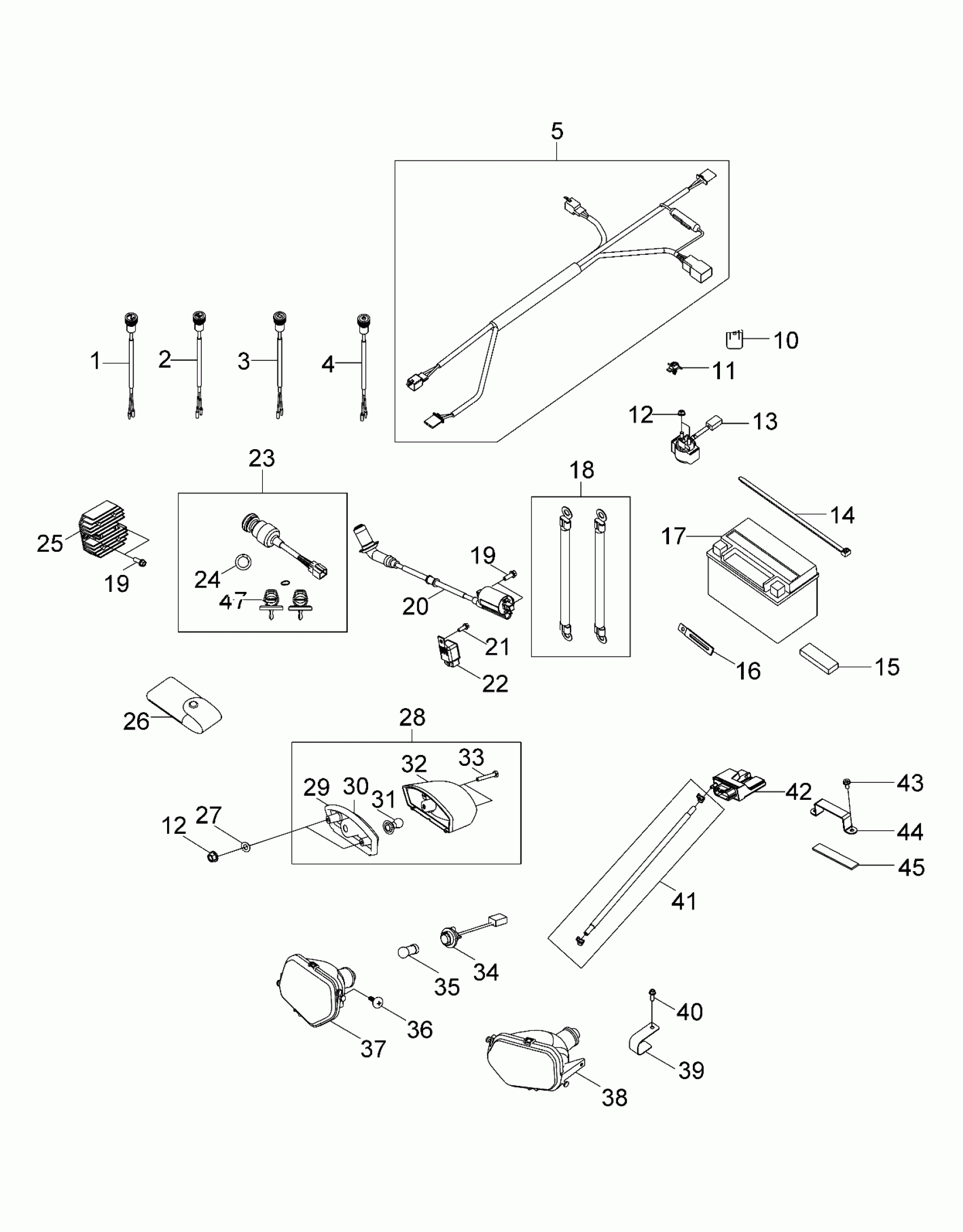

Polaris RZR 170 (R10) - Z17YAV17A2/A5 ELECTRICAL PARTS - Z17YAV17A2/A5 (A00048) Diagram

#

Description
Price

1

INDICATOR, NEUTRAL

0454654

$23.99

2

INDICATOR, REVERSE

0454655

$27.99

3

INDICATOR, TROUBLE

0455023

$27.99

4

INDICATOR, LOW FUEL

0455202

$11.19

5

HARNESS-MAIN,WIRE,RZR170 [INCL. 6-8]

0455320

Unavailable

10

DUST COVER

0455027

$27.99

11

GROUND, CABLE BATTERY

0455079

$6.39

12

NUT

0450880

$3.99

12

NUT

0450880

$3.99

13

STARTER RELAY

0455028

$53.59

14

STRAP

0450559

$2.39

15

FOAM

0452778

$19.99

16

STRAP

0454939

$12.79

17

Battery [TO 7/1/2024]

0455167

Unavailable

17

BATTERY-AEON,RZR170 [FRM 7/1/2024]

0455526

$95.99

18

ASM-CABLE,BATTERY

0455271

$95.99

19

BOLT

0454011

$3.99

19

BOLT

0454011

$3.99

20

ASM., IGNITION COIL

0455029

$67.99

21

Bolt

0450701

$1.49

22

RELAY, EFI

0455030

$41.79

23

Asm., Switch, Main [INCL. 24,47]

0455551

$99.99

24

DECAL, SWITCH, MAIN, IGNITION

0454806

$7.19

25

RECITIFIER/REGULATOR

0455032

$83.99

26

POUCH, TOOL

0454337

$51.99

27

WASHER

0450041

$4.79

28

ASM., TAILLIGHT [INCL. 29-33]

0454722

Unavailable

29

GASKET

0451799

$6.39

30

SOCKET, TAILLIGHT

0454714

Unavailable

31

BULB, TAILLIGHT

0452830

$9.59

32

LENS, TAILLIGHT

0452995

Unavailable

33

BOLT

0451801

$3.99

34

SOCKET, HEADLIGHT

0454867

$47.99

35

BULB, HEADLIGHT

0454763

$19.99

36

Bolt

0450667

$5.59

37

ASM., HEADLIGHT, RH

0454291

$83.99

38

ASM., HEADLIGHT, LH

0454290

$83.99

39

CLIP, RETAINER, CABLE

0454394

$11.19

40

BOLT

0450297

$4.79

41

CLAMP

0455033

$3.99

41

HOSE [INCL. CLAMP]

0455034

$14.39

42

ECU, RZR 170

0455166

$279.99

43

BOLT

0454785

$3.99

44

BRACKET, ECU

0455019

$8.79

45

FOAM

0455020

$5.59

47

Key, Blank, LH

0455548

$11.43

47

Key, Blank, RH

0455549

$10.39
