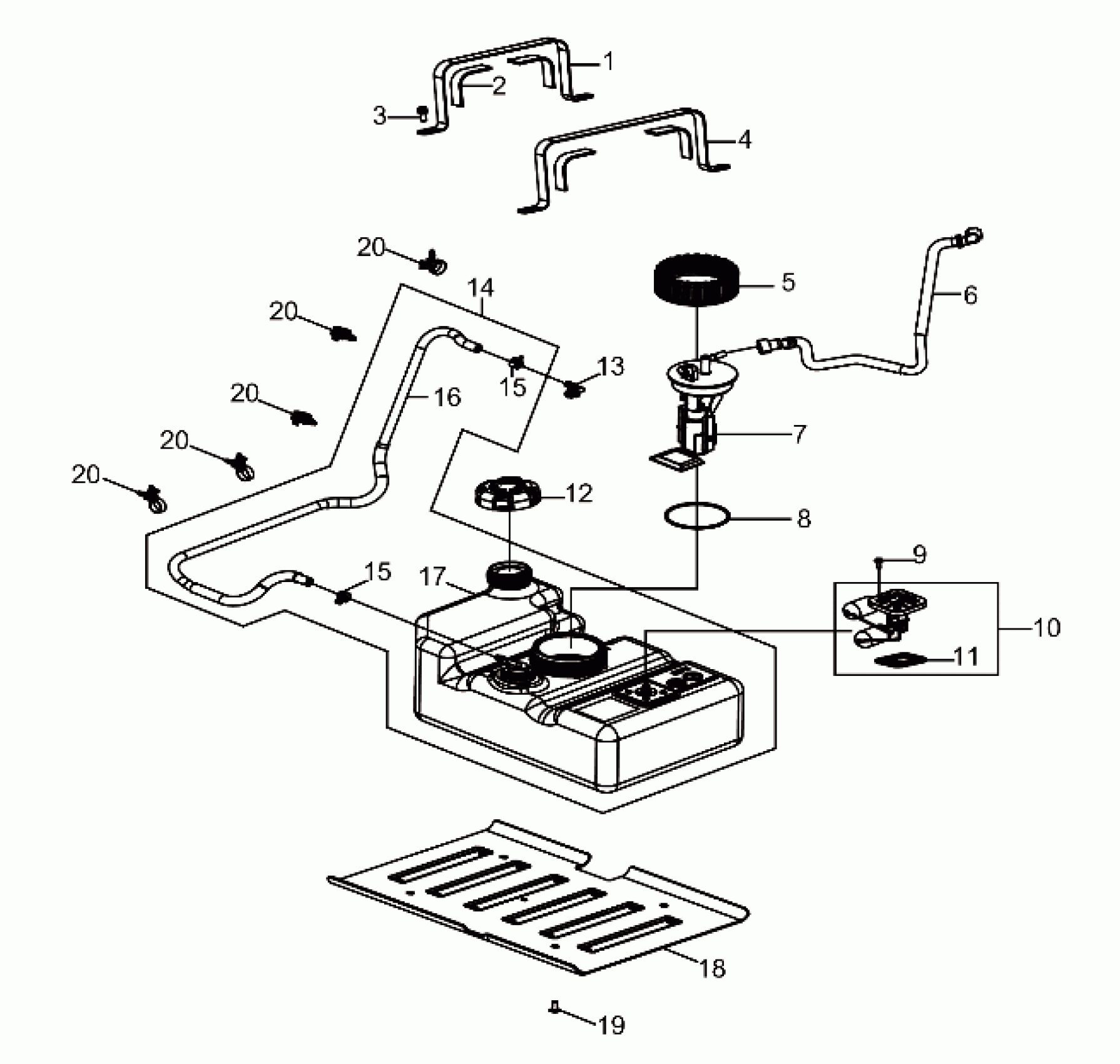

Polaris RZR 170 (R05) - Z19YAV17B2/B4 ENGINE, FUEL SYSTEM - Z19YAV17B2/B4 (A00082) Diagram

#

Description
Price

1

STRAP, FUEL TANK

0455037

$19.99

2

FOAM

0455183

$3.19

3

BOLT

0450887

$3.99

4

STRAP, FUEL TANK

0455038

$19.99

5

NUT, MASON JAR,RZR 170 [INCL. 8]

0455431

$39.99

6

ASM., FUEL LINE

0455039

$227.99

7

FUEL, PUMP

0455041

$373.99

8

O-RING

0455042

$23.99

9

BOLT

0455043

$3.99

10

SENSOR, FUEL

0455044

$75.99

11

GASKET-OIL LEVER GAUGE

0455392

$7.99

12

ASM-CAP,FUEL

0453928

$31.99

13

FITTING-VENT LINE,RND,90,1/4"

5453906

$4.66

14

TANK,FUEL,EFI,RZR170

0455429

Unavailable

15

HOSE CLAMP, RED

7080003

$1.49

15

HOSE CLAMP, RED

7080003

$1.49

16

LINE-VENT,FORMED,RZR170 EFI

0455325

$59.99

17

TANK,FUEL,EFI,RZR170 [INCL. 8,11]

0455429

$382.79

18

SHIELD, FUEL TANK

0454292

$59.99

19

BOLT

0450297

$4.79

20

STRAP-ROUTING AEON

0455326

$3.19

20

STRAP-ROUTING AEON

0455326

$3.19

20

STRAP-ROUTING AEON

0455326

$3.19

20

STRAP-ROUTING AEON

0455326

$3.19

20

STRAP-ROUTING AEON

0455326

$3.19
