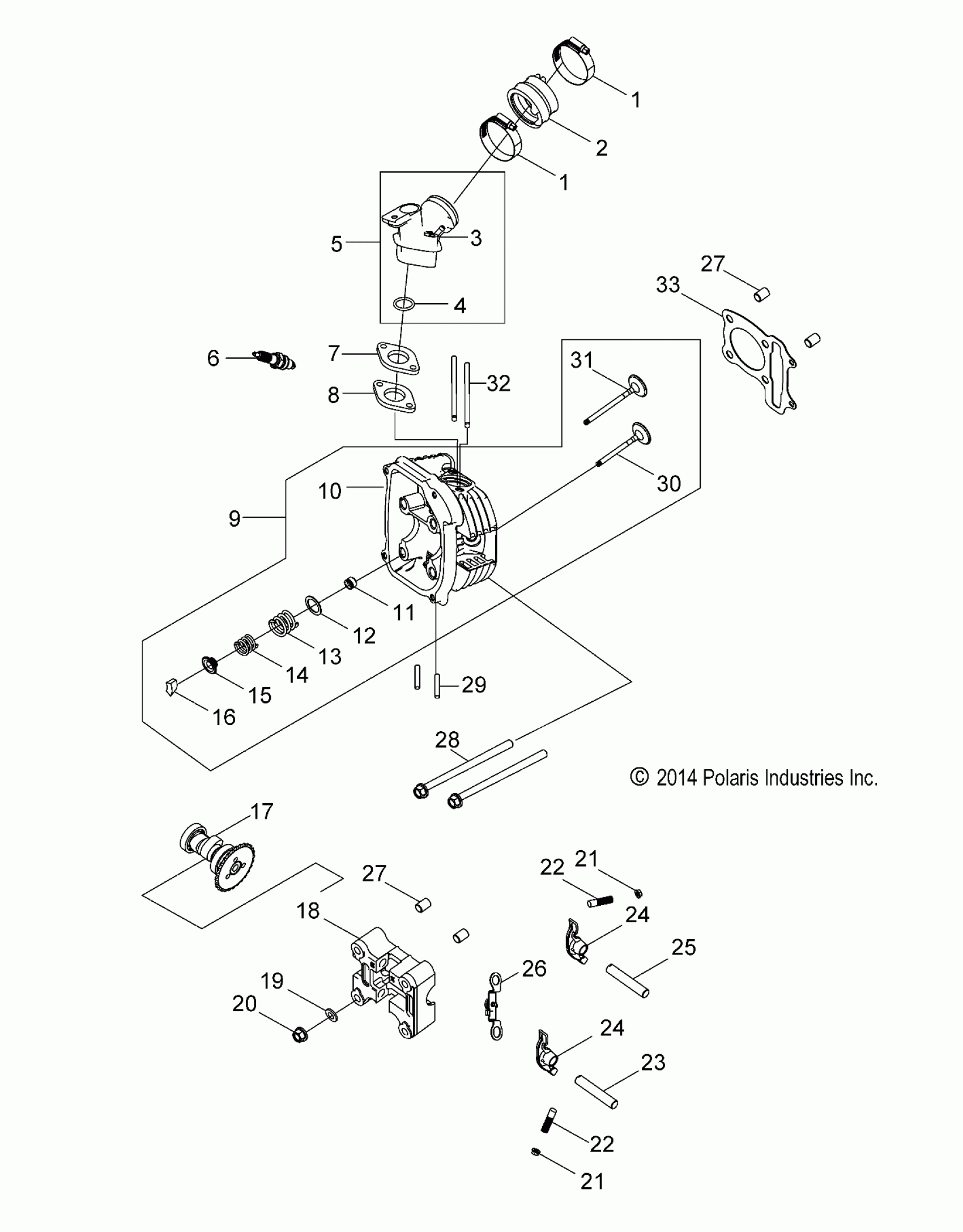

Polaris RZR 170 (R05) - Z19YAV17B2/B4 ENGINE, CYLINDER HEAD - Z19YAV17B2/B4 (49RGRCYLINDER15RZR170) Diagram

#

Description
Price

-

ASM-ENG,EFI,170

0455397

Unavailable

1

CLAMP, HOSE

0454512

$7.14

1

CLAMP, HOSE

0454512

$7.14

2

ADAPTER, CARBURETOR

0455056

$17.41

3

MANIFOLD

----

Unavailable

4

O-RING

0452459

$5.32

5

ASM., MANIFOLD, INTAKE [INCL. 3,4]

0455057

$99.99

6

PLUG, SPARK

0453034

$3.97

7

INSULATOR, MANIFOLD

0453449

$12.94

8

GASKET-MANIFOLD

0455364

$5.65

9

ASM., CYLINDER, HEAD [INCL. 10-16,30,31]

0455058

$649.99

10

HEAD, CYLINER

----

Unavailable

11

SEAL, VALVE

0452390

$9.76

12

WASHER, VALVE, SPRING, OUTER

0452388

$8.99

13

SPRING, VALVE, OUTER

0454515

$16.44

14

SPRING, VALVE, INNER

0454516

$9.49

15

RETAINER, VALVE, SPRING

0452387

$26.17

16

CLIP, RETAINER

0452389

$8.54

17

ASM., CAM SHAFT

0454517

$129.99

18

BRACKET, CAM SHAFT

0454518

$77.44

19

WASHER

0452425

$4.35

20

NUT, FLANGE

0450268

$0.79

21

NUT, TAPPET ADJUST

0452424

$4.99

21

NUT, TAPPET ADJUST

0452424

$4.99

22

SCREW, TAPPET ADJUST

0452423

$12.99

22

SCREW, TAPPET ADJUST

0452423

$12.99

23

SHAFT, EXHAUST, ROCKER ARM

0454519

$12.57

24

ARM, VALVE, ROCKER

0452409

$48.87

24

ARM, VALVE, ROCKER

0452409

$48.87

25

SHAFT, INTAKE, ROCKER ARM

0454520

$33.87

26

ASM., DECOMP. RELEASE

0452414

$33.87

27

PIN, DOWEL

0450142

$3.97

27

PIN, DOWEL

0450142

$3.97

28

BOLT

0454521

$5.56

29

BOLT, STUD

0452398

$4.35

30

VALVE, EXHAUST

0454522

$82.29

31

VALVE, INTAKE

0454523

$64.99

32

BOLT, STUD

0454524

$7.14

33

GASKET-CYLINDER HEAD,RZR-Y

0455363

$42.74
