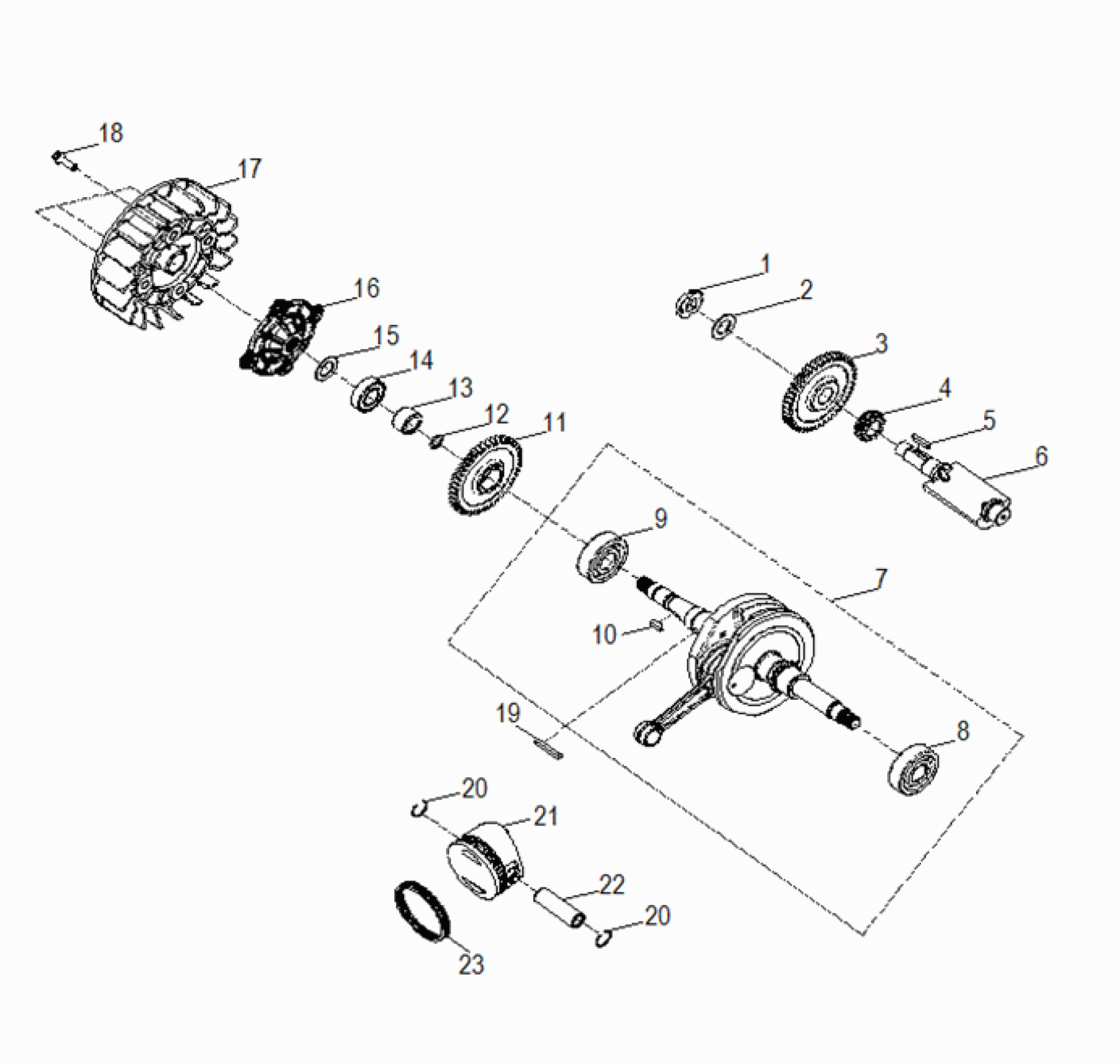

Polaris RZR 170 (R05) - Z16YAV17AB/AF/CAB/CAF ENGINE, CRANKSHAFT and PISTON - Z16YAV17AB/AF/CAB/CAF (A00036) Diagram

#

Description
Price

1

NUT, LOCK

0452438

$8.99

2

WASHER

0450264

$3.97

3

GEAR, BALANCE, DRIVEN

0454577

$111.33

4

SPROCKET, OIL PUMP, DRIVE

0452436

$40.46

5

KEY, WOODRUFF

0452439

$7.94

6

SHAFT, BALANCE

0454576

$134.99

7

ASM., CRANKSHAFT [INCL. 8-10]

0454579

$699.99

8

BEARING

0455205

$61.89

9

BEARING

0455206

$57.13

10

KEY, WOODRUFF

0452429

$6.10

11

GEAR, BALANCE, DRIVE

0454578

$111.33

12

O-RING

0454580

$1.92

13

BUSHING, CRANKSHAFT

0454581

$23.79

14

BEARING, BALL

0454582

$23.81

15

WASHER

0454622

$3.97

16

MOUNT, FAN

0454583

$62.92

17

FAN

0454584

Unavailable

18

BOLT

0450066

$3.97

19

KEY, WOODRUFF

0454585

$29.03

20

C-CLIP

0454586

$3.17

20

C-CLIP

0454586

$3.17

21

PISTON

0454588

$123.49

22

PIN, PISTON

0454587

$16.14

23

RING, SET, PISTON

0454589

$85.49
