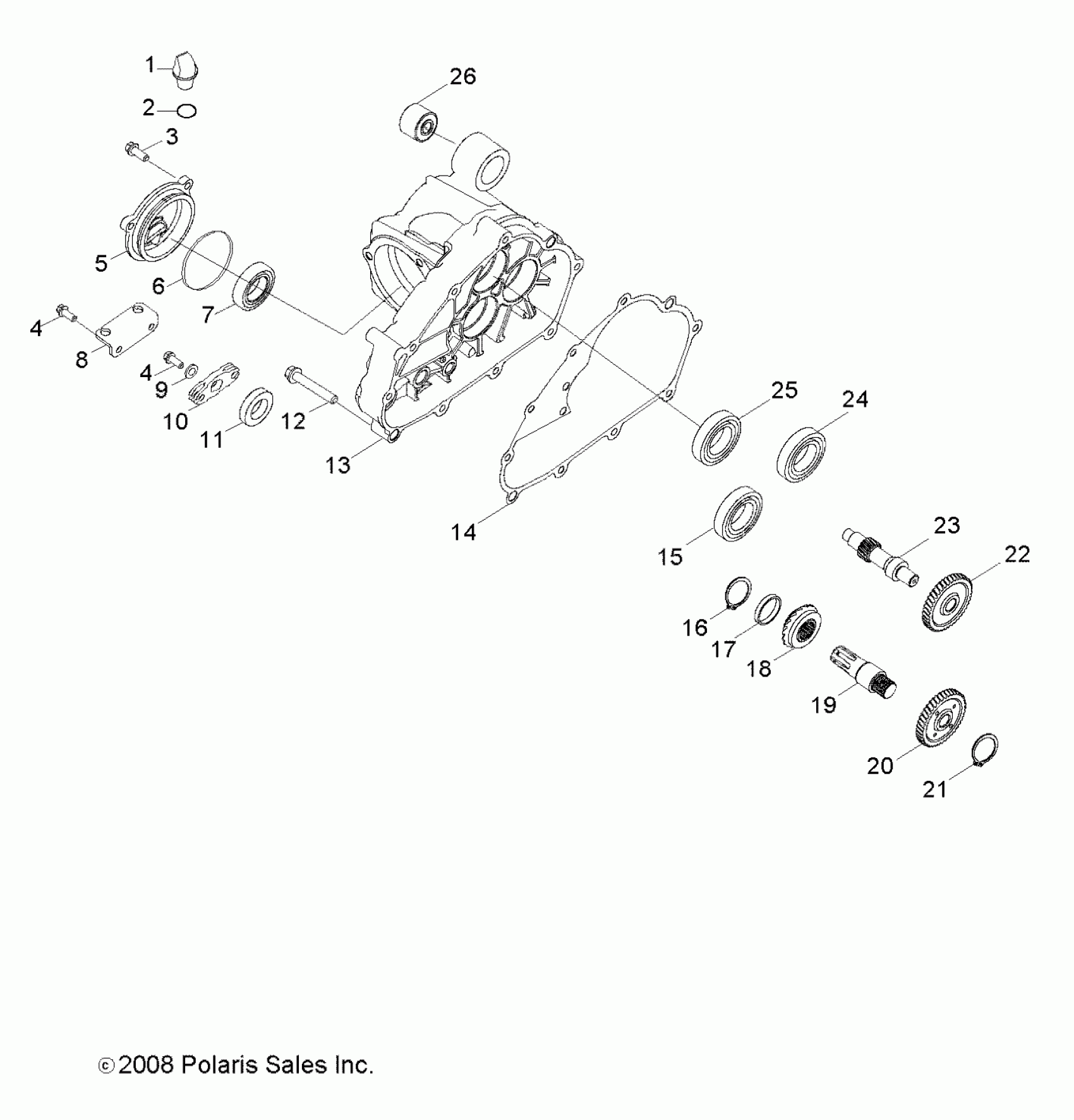

Polaris RZR 170 (R05) - Z16YAV17AB/AF/CAB/CAF DRIVE TRAIN, DRIVE SHAFT - Z16YAV17AB/AF/CAB/CAF (49RGRSHAFTDRV09RZR170) Diagram

#

Description
Price

1

PLUG, OIL

0451813

$5.59

2

O-RING

0452394

$1.59

3

BOLT

0453519

$3.99

4

BOLT

0454011

$3.99

4

BOLT

0454011

$3.99

5

COVER, TRANSMISSION, RH

0454548

$87.99

6

O-RING

0454549

$6.39

7

BEARING, BALL

0454550

$19.99

8

BRACKET, TRANSMISSION

0454551

$8.79

9

WASHER, FLAT

0452201

$3.19

10

PIVOT, SHIFT, LEVER

0454552

$27.99

11

SEAL, OIL

0452175

$11.99

12

BOLT

0452331

$3.99

13

COVER, TRANSMISSION

0454553

Unavailable

14

GASKET, TRANSMISSION COVER

0454383

Unavailable

15

BEARING, BALL, ID 20MM

0452346

$31.99

16

CLIP, CIR

0452529

$1.59

17

SPACER, PINION

0454554

$8.79

18

GEAR, RING

0454555

$115.99

19

PINION, OUTPUT

0454556

$87.99

20

GEAR, OUTPUT

0454557

$115.99

21

CLIP, CIR

0453779

$4.79

22

GEAR, COUNTER

0452527

$103.99

23

SHAFT, COUNTER

0452526

$79.99

24

BEARING, NEEDLE, ID 30MM

0452358

$71.99

25

BEARING, BALL, ID 15MM

0452347

$31.99

26

BUSHING, RUBBER

0450587

$12.79
