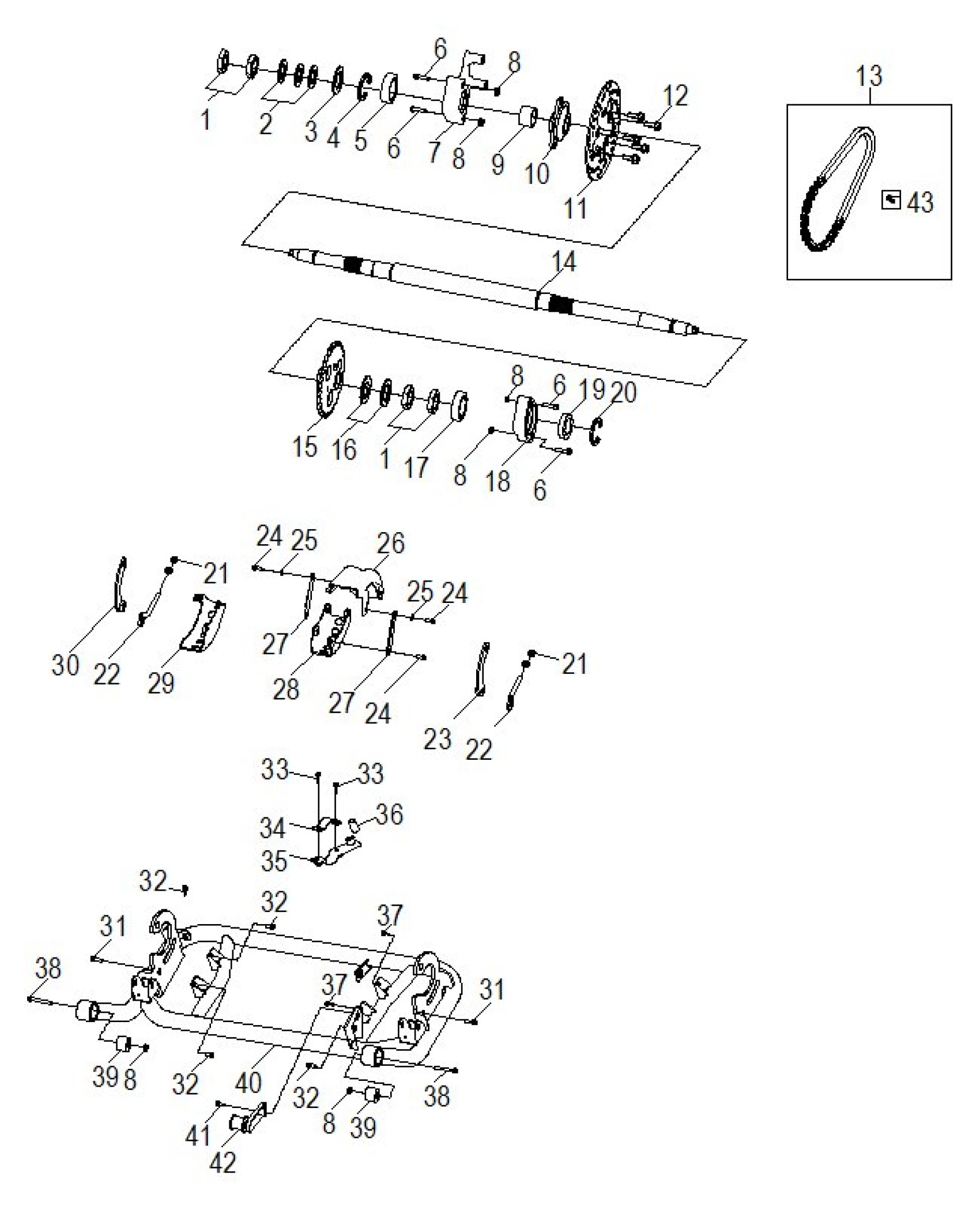

Polaris RZR 170 (R05) - Z16YAV17AB/AF/CAB/CAF CHASSIS, SWING ARM AND REAR AXLE - Z16YAV17AB/AF/CAB/CAF (A00018) Diagram

#

Description
Price

1

NUT

0454473

$38.08

1

NUT

0454473

$38.08

2

WASHER

0454474

$10.32

3

WASHER

0454475

$13.32

4

CLIP, CIR

0454476

$13.32

5

BEARING, BALL

0454477

$47.49

6

BOLT

0454478

$7.14

6

BOLT

0454478

$7.14

6

BOLT

0454478

$7.14

6

BOLT

0454478

$7.14

7

HOUSING, AXLE, REAR, RH

0454479

$125.99

8

NUT, FLANGE

0453706

$4.76

8

NUT, FLANGE

0453706

$4.76

8

NUT, FLANGE

0453706

$4.76

8

NUT, FLANGE

0453706

$4.76

8

NUT, FLANGE

0453706

$4.76

8

NUT, FLANGE

0453706

$4.76

9

SPACER, COLLAR, AXLE

0454300

$8.73

10

MOUNT, BRAKE DISC

0454481

$125.86

11

DISC, BRAKE

0454482

Unavailable

12

BOLT, BRAKE DISC

0452904

$7.14

13

ASM., DRIVE CHAIN [INCL. 43]

0454771

$123.49

14

AXLE

0454660

Unavailable

15

ASM., DRIVE SPROCKET

0454503

$151.99

16

WASHER

0454496

$6.35

17

BEARING

0452715

$47.62

18

HOUSING, AXLE, REAR, LH

0454494

$79.98

19

SEAL, OIL

0452752

$16.17

20

RETAINER

0452717

$10.32

21

NUT

0453818

$5.56

21

NUT

0453818

$5.56

22

ADJUSTER, CHAIN

0453557

$28.32

22

ADJUSTER, CHAIN

0453557

$28.32

23

CLAMP, TUBE, AXLE HUB, LH

0454504

Unavailable

24

BOLT

0452030

$4.76

24

BOLT

0452030

$4.76

24

BOLT

0452030

$4.76

25

WASHER, FLAT

0452198

$3.17

25

WASHER, FLAT

0452198

$3.17

26

COVER, SPROCKET, REAR

0454264

$66.49

27

BRACKET, CHAIN GUARD, RH

0454506

$33.87

27

BRACKET, CHAIN GUARD, RH

0454506

$33.87

28

COVER, SPROCKET

0454275

$43.56

29

SHIELD, DISC, BRAKE

0454507

$53.24

30

CLAMP, TUBE, AXLE HUB, RH

0454508

$28.56

31

BOLT

0454448

$5.56

31

BOLT

0454448

$5.56

32

BOLT

0453669

$4.76

32

BOLT

0453669

$4.76

32

BOLT

0453669

$4.76

32

BOLT

0453669

$4.76

33

BOLT

0450298

$2.38

33

BOLT

0450298

$2.38

34

MOUNT, BUFFER, UPPER

0454921

$44.51

35

MOUNT, BUFFER, LOWER

0454922

$52.60

36

BUFFER, CHAIN

0454652

$7.10

37

BOLT

0454923

$4.76

37

BOLT

0454923

$4.76

38

BOLT

0454509

$10.32

38

BOLT

0454509

$10.32

39

BUSHING

0454510

$15.19

39

BUSHING

0454510

$15.19

40

ARM, SWING, BLACK

0454924-067

$439.99

41

BOLT, FLANGE

0451689

$5.56

42

ASM., CHAIN TENSIONER

0454925

$80.74

43

LINK, CHAIN, MASTER

0454905

Unavailable
