BODY, HOOD, BUMPERS, PANELS, FLOOR and RACK - Z16YAV17AB/AF/CAB/CAF (49RGRMOLDINGS09RZR170)

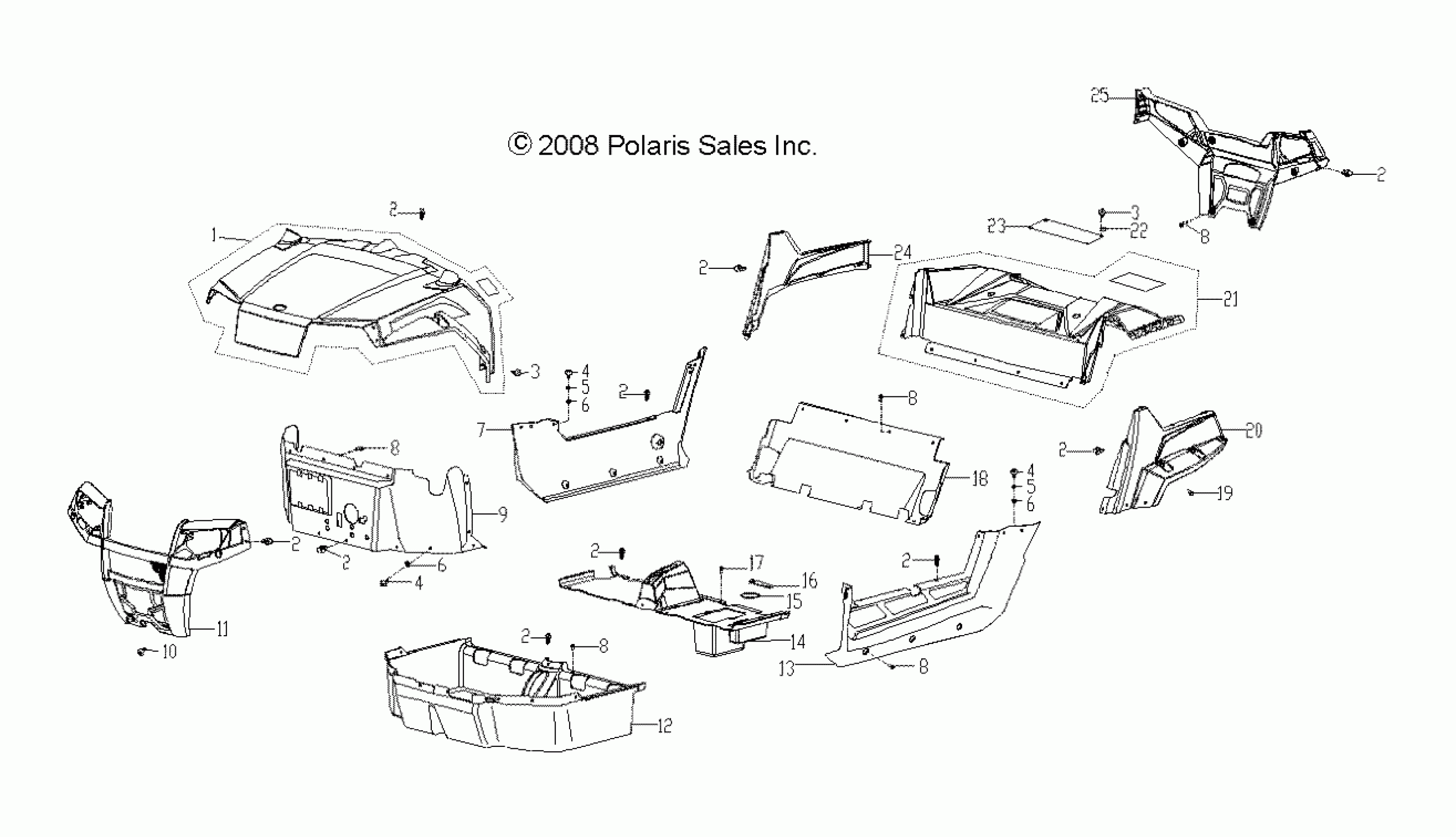

Polaris RZR 170 (R05) - Z16YAV17AB/AF/CAB/CAF BODY, HOOD, BUMPERS, PANELS, FLOOR and RACK - Z16YAV17AB/AF/CAB/CAF (49RGRMOLDINGS09RZR170) Diagram
#
1
ASM., CAB, WHITE [AB][CAB]
0455086-133
Unavailable
1
ASM., CAB, BLUE [AF][CAF]
0455086-619
Unavailable
2
Rivet
7661855
$1.49
2
Rivet
7661855
$1.49
2
Rivet
7661855
$1.49
2
Rivet
7661855
$1.49
2
Rivet
7661855
$1.49
2
Rivet
7661855
$1.49
2
Rivet
7661855
$1.49
2
Rivet
7661855
$1.49
2
Rivet
7661855
$1.49
2
Rivet
7661855
$1.49
3
BOLT
0450297
$4.79
3
BOLT
0450297
$4.79
4
BOLT
0454318
$3.99
4
BOLT
0454318
$3.99
4
BOLT
0454318
$3.99
5
WASHER, FLAT
0452201
$3.19
5
WASHER, FLAT
0452201
$3.19
6
NUT, LOCK
0450808
$2.39
6
NUT, LOCK
0450808
$2.39
6
NUT, LOCK
0450808
$2.39
7
PANEL, ROCKER, RH, BLACK
0455022-070
$159.99
8
BOLT
0452215
$3.99
8
BOLT
0452215
$3.99
8
BOLT
0452215
$3.99
8
BOLT
0452215
$3.99
8
BOLT
0452215
$3.99
9
PANEL, FLOOR, FRONT, BLACK
0454288
$187.99
10
BOLT
0453977
Unavailable
11
BUMPER, FRONT, BLACK
0454801-070
$223.99
12
FLOOR, BLACK
0454623
$448.79
13
PANEL, ROCKER, LH, BLACK
0454802-070
$167.99
14
COVER, FLOOR, CONSOLE, BLACK
0455212-070
$255.99
15
O-RING
0453687
$1.99
16
STRAP, BATTERY, RUBBER
0452660
$8.79
17
BOLT
0452216
$3.99
18
PANEL, DIVIDER, REAR, BLACK
0454635
$219.99
19
SCREW
0450040
$3.19
20
PANEL, SIDE, BOX, REAR, LH, BLUE [AF][CAF]
0454283-619
Unavailable
20
PANEL, SIDE, BOX, REAR, LH, WHITE [AB][CAB]
0454283-133
$107.99
21
ASM., BOX, REAR, W/DECALS, BLACK
0454916-070
Unavailable
22
U-NUT
0454399
$4.79
23
PANEL, ACCESS
0454799
$14.39
24
PANEL, SIDE, BOX, REAR, RH, WHITE [AB][CAB]
0454284-133
$107.99
24
PANEL, SIDE, BOX, REAR, RH, BLUE [AF][CAF]
0454284-619
Unavailable
25
BUMPER, REAR, BLACK
0454294-070
$203.99
