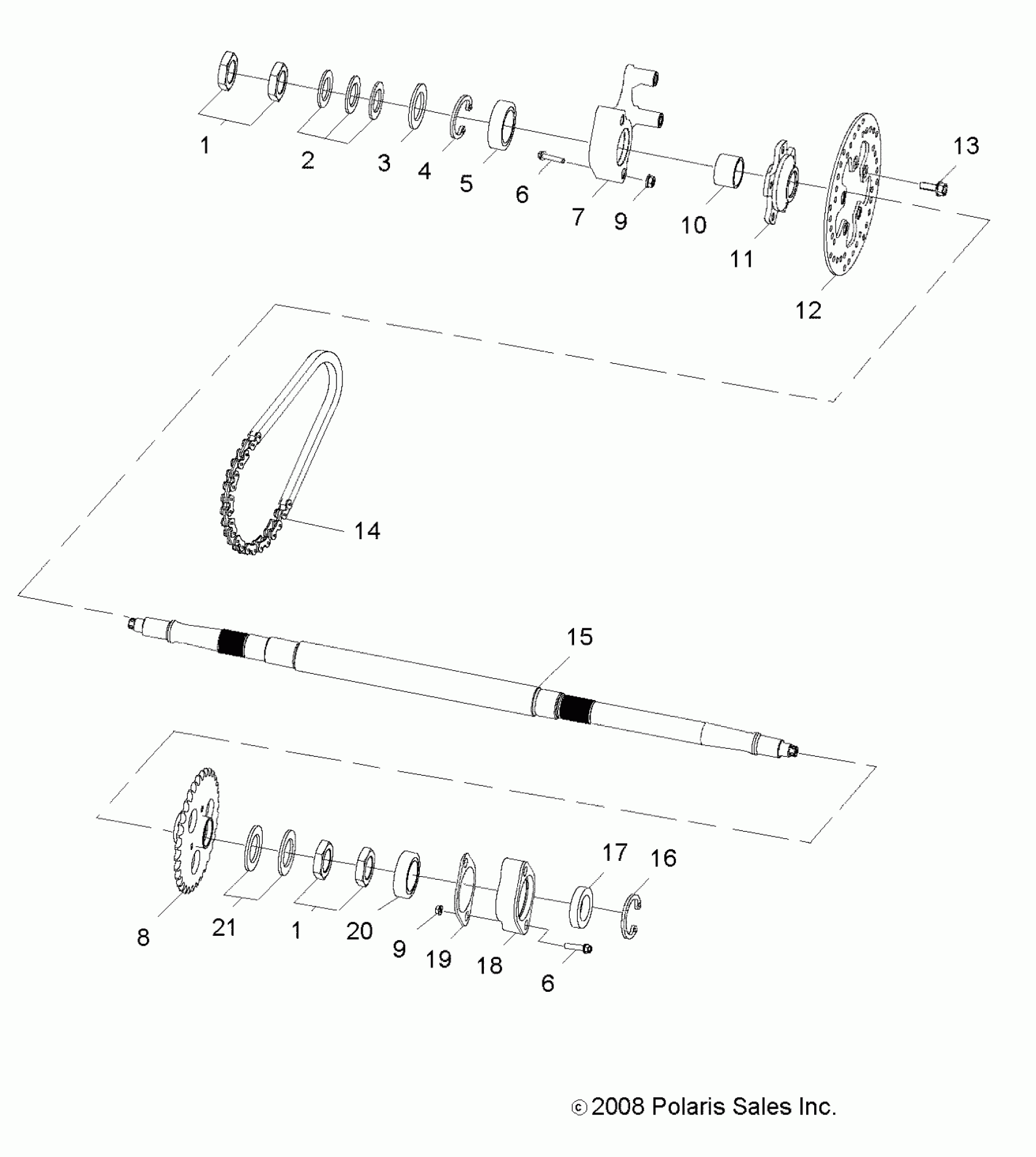

Polaris RZR 170 - A09VA17AA/AD WHEELS, REAR AXLE - A09VA17AA/AD (49RGRAXLE09RZR170) Diagram

#

Description
Price

1

NUT

0454473

$38.08

1

NUT

0454473

$38.08

2

WASHER

0454474

$10.32

3

WASHER

0454475

$13.32

4

CLIP, CIR

0454476

$13.32

5

BEARING, BALL

0454477

$47.49

6

BOLT

0454478

$7.14

6

BOLT

0454478

$7.14

7

HOUSING, AXLE, REAR, RH

0454479

$125.99

8

Asm., Drive Sprocket [Incl. Hub]

0454503

$151.99

8

Hub [Not sold separately]

----

Unavailable

9

NUT, FLANGE

0453706

$4.76

9

NUT, FLANGE

0453706

$4.76

10

SPACER, COLLAR, AXLE

0454300

$8.73

11

MOUNT, BRAKE DISC

0454481

$125.86

12

DISC, BRAKE

0454482

Unavailable

13

BOLT, BRAKE DISC

0452904

$7.14

14

LINK, CHAIN, MASTER

0454905

Unavailable

14

Chain, Drive

0454493

$123.49

15

Axle

0454492

$349.99

16

RETAINER

0452717

$10.32

17

SEAL, OIL

0452752

$16.17

18

HOUSING, AXLE, REAR, LH

0454494

$79.98

19

Spacer

0454495

Unavailable

20

BEARING

0452715

$47.62

21

WASHER

0454496

$6.35
