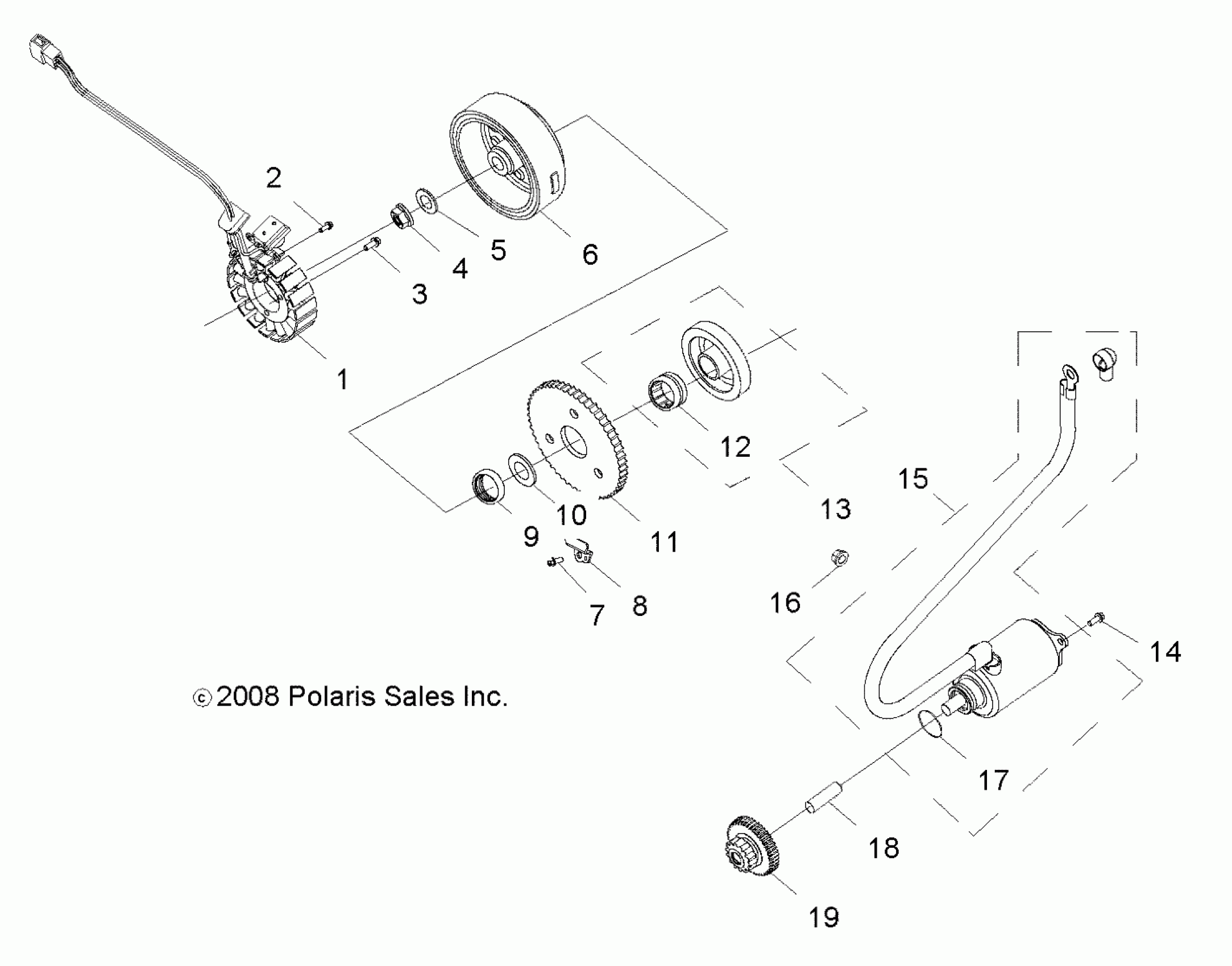

Polaris RZR 170 - A09VA17AA/AD ENGINE, STARTING MOTOR - A09VA17AA/AD (49RGRSTARTINGMTR09RZR170) Diagram

#

Description
Price

1

STATOR

0454483

Unavailable

2

BOLT, SOCKET

0452456

$3.19

3

BOLT

0453519

$3.99

4

NUT

0450529

$2.39

5

Washer

0450286

$5.59

6

ASM., FLYWHEEL

0454484

Unavailable

7

BOLT

0452330

$3.99

8

BRACKET, STARTER/FLYWHEEL

0454595

$11.19

9

Nut. Lock

0454485

$23.99

10

WASHER

0454486

$5.59

11

Gear, Starter

0454487

Unavailable

12

Bearing, Needle

0454593

Unavailable

13

Asm., One Way Clutch

0454594

Unavailable

14

BOLT

0450066

$3.99

15

STARTER, MOTOR

0454488

Unavailable

16

Nut, Flange

0450880

$3.99

17

O-RING

0452510

$1.99

18

SHAFT, STARTER MOTOR

0454489

$8.79

19

GEAR, STARTER

0454490

$63.99
