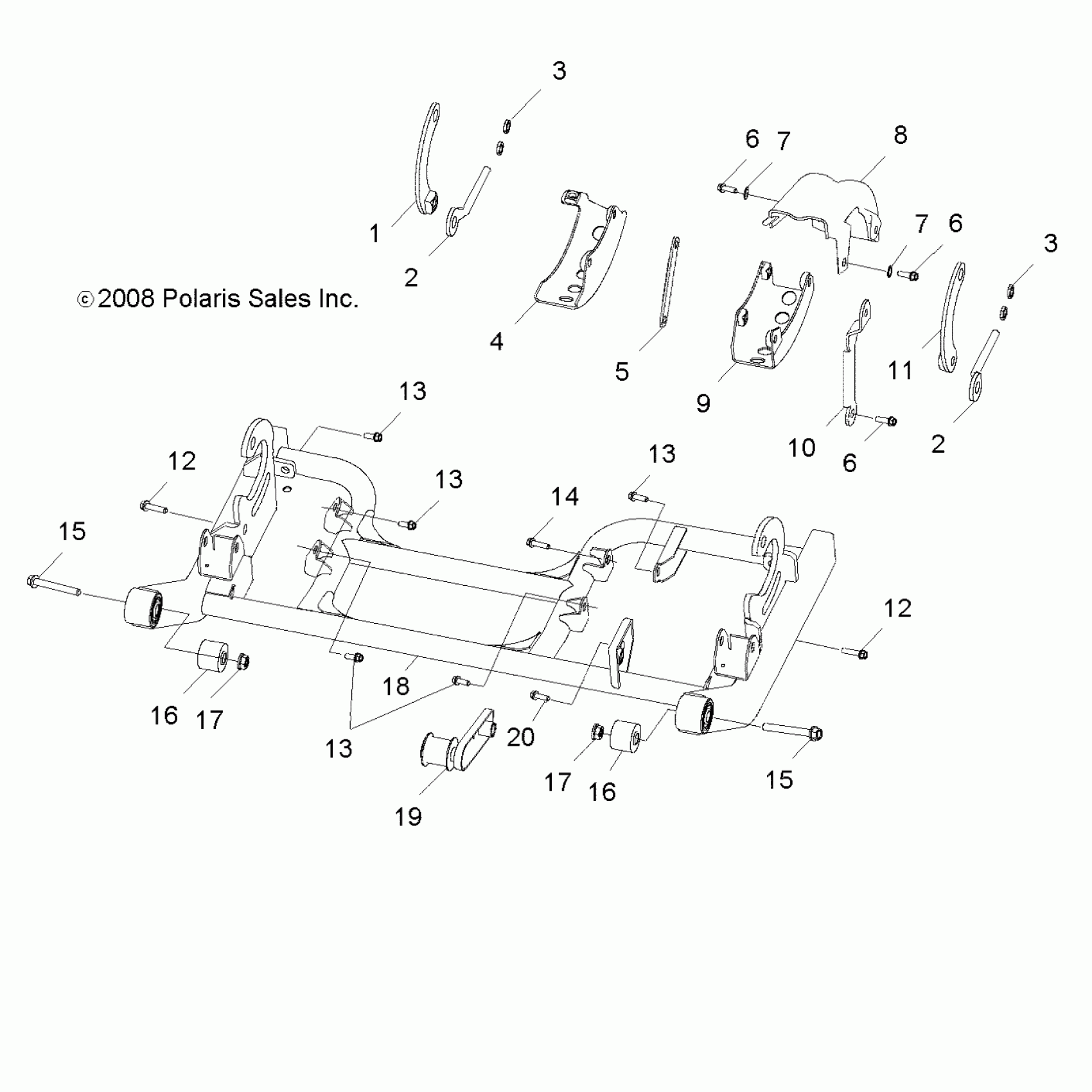

Polaris RZR 170 - A09VA17AA/AD CHASSIS, SWING ARM - A09VA17AA/AD (49RGRSWINGARM09RZR170) Diagram

#

Description
Price

1

CLAMP, TUBE, AXLE HUB, RH

0454508

$28.56

2

ADJUSTER, CHAIN

0453557

$28.32

2

ADJUSTER, CHAIN

0453557

$28.32

3

NUT

0453818

$5.56

3

NUT

0453818

$5.56

4

SHIELD, DISC, BRAKE

0454507

$53.24

5

BRACKET, CHAIN GUARD, RH

0454506

$33.87

6

BOLT

0452030

$4.76

6

BOLT

0452030

$4.76

6

BOLT

0452030

$4.76

7

WASHER, FLAT

0452198

$3.17

7

WASHER, FLAT

0452198

$3.17

8

COVER, SPROCKET, REAR

0454264

$66.49

9

GUARD, SPROCKET, REAR

0454275

$43.56

10

BRACKET, CHAIN GUARD, LH

0454505

$38.71

11

CLAMP, TUBE, AXLE HUB, LH

0454504

Unavailable

12

BOLT

0454448

$5.56

12

BOLT

0454448

$5.56

13

BOLT

0453669

$4.76

13

BOLT

0453669

$4.76

13

BOLT

0453669

$4.76

13

BOLT

0453669

$4.76

14

BOLT

0452031

$12.21

15

BOLT

0454509

$10.32

15

BOLT

0454509

$10.32

16

BUSHING

0454510

$15.19

16

BUSHING

0454510

$15.19

17

NUT, FLANGE

0453706

$4.76

17

NUT, FLANGE

0453706

$4.76

18

Arm, Swing, Black

0454301-067

$439.99

19

ASM., CHAIN TENSIONER

0452954

$90.24

20

BOLT, FLANGE

0451689

$5.56
