Description

Price

1

ASM-GEARCASE,COMPLETE [INCL. ALL]

1333698

$3,172.39

2

PLUG, M18 X 1.5 MAGNETIC

3234756

$31.99

3

SCREW-HEXFLANGEHEAD,M8X1.25X30

3234898

$9.59

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.19

4

SCREW, HEX FLANGE HEAD M6 X 1 X 20

3235206

$7.19

5

SCREW HEX FLANGE M8 X 50

3235207

$10.39

6

SCREW, SOCKET HEAD CAP, M6 X 1 X 40

3235208

$11.19

7

SCREW, SOCKET HEAD CAP, M6 X 1 X 18

3235332

$3.99

7

SCREW, SOCKET HEAD CAP, M6 X 1 X 18

3235332

$3.99

8

NUT, LOCK HEX FLANGE NYLON M8 X 1.25

3235210

$7.99

9

WASHER-CUP

3234091

$9.59

9

WASHER-CUP

3234091

$9.59

10

WASHER 32.3 X 42 X 1.5

3235211

$10.39

10

WASHER 32.3 X 42 X 1.5

3235211

$10.39

10

WASHER 32.3 X 42 X 1.5

3235211

$10.39

11

WASHER 35.6 X 50 X 1.5

3235212

$13.59

12

WASHER 17.3 X 25 X 1.5

3235213

$15.99

13

PIN, DOWEL 6 X 20

3234330

$7.19

14

PIN, SPRING SLOTTED 6 X 12

7043746

$7.19

15

RING,RETAINING BASIC,EXTERNAL 0.75

3233045

$4.79

16

RING,RETAINING BASIC,EXTERNAL 0.984

3233106

$5.59

17

RING SNAP

3233834

$10.39

18

RING, RETAINING SHAFT, DIA. 1.375

3233364

$6.39

19

RING, RETAINING EXTERNAL SHR-66

3234318

$3.19

20

RING,RETAINING BASIC,INTERNAL 2.047

3234269

$9.59

21

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

21

RING,RETAINING BASIC,EXTERNAL 0.428

3234090

$10.39

22

RING, RETAINING

3234205

$11.19

22

RING, RETAINING

3234205

$11.19

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

23

RING-RETAIN,EXT,MSR-32(130296)

3235214

$9.59

24

RING, RETAINING VSH-237

3235216

$10.39

25

SHAFT, INPUT 42T/20T/31T

3235838

$159.99

26

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

26

WASHER,THRUST,1.187 X 1.500 X .0600

3233378

$9.59

27

WASHER,THRUST,0.446 X 0.88 X 0.025

3234642

$10.39

28

SHIM 1.18 OD X 0.995 ID

3234272

$31.99

29

SHIM 2.04 OD X 1.63 ID

3234273

$12.79

30

SPACER, 19.4 X 34 X 2

3235883

$23.99

31

BEARING, NEEDLE

3233014

$43.99

31

BEARING, NEEDLE

3233014

$43.99

32

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

32

BEARING, BALL, 6205 C3 25X52X15

3233019

$31.99

33

BEARING

3233020

$47.99

34

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

34

BEARING-BALL 6010 C3 50 X 80 X 10

3233268

$51.99

35

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

35

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

35

BEARING,BALL 6207 C3 35X72X17

3234065

$47.99

36

BEARING, NEEDLE CAGE ASSY

3233384

$31.99

37

BEARING, BALL 6012 C3 60 X 95 X 18

3235218

$59.99

38

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.99

38

BEARING, BALL 6303 17 X 47 X 14

3234652

$15.99

39

BEARING, BALL 6206RSH2 STD 30X62X16

3235496

$31.99

40

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

40

SPRING,COMPRESSION, .92 O.D. X 2.000

3234078

$19.99

41

SPRING, COMPRESSION 0.46 I.D. X 0.73

3234089

$23.99

41

SPRING, COMPRESSION 0.46 I.D. X 0.73

3234089

$23.99

42

SPRING, COMPRESSION 0.36 O.D. X 1.125

3234578

$12.79

43

SPRING, TORSION

3235885

$19.99

44

SPRING, WASHER

3235327

$9.59

45

TUBE, SNORKEL MACH

3234278

$95.99

46

GEAR, SECTOR 16T

3233839

$31.99

47

GEAR-SECTOR,31T

3233832

$31.99

48

PLATE, PARK 12-FACE

3235456

$35.99

49

STAR, DETENT

3235982

$31.99

50

SHAFT, IDLER 29T

3235223

$107.99

51

SHAFT-REVERSE,27T(285878)

3235380

$243.99

52

SHAFT, FRONT OUTPUT

3235394

$131.99

53

BELLCRANK

3235581

$39.99

54

COLLAR-SHIFT

3234073

$31.99

55

TUBE, VENT 90 -1/4" HOSE

3234230

$9.59

56

ENGAGEMENT DOG, 6-FACE

3235233

$119.99

57

GEAR, 53T

3235234

$79.99

58

GEAR, 46T STAGE 3

3235236

$103.99

59

GEAR, 13T SNORKEL

3235237

$123.99

60

SHAFT-SHIFT(352973)

3235238

$37.61

61

GEAR, 46T STAGE 2

3235381

$123.99

62

SHIFT DOG, PARK

3235457

$135.99

63

RAIL, SHIFT SHAFT

3235542

$27.99

64

GEAR, LOW 61T

3235561

$79.99

65

SPROCKET 48T 6-FACE

3235755

$79.99

66

PARK CAM

3235983

$151.99

67

DRUM, SHIFT MACH

3235984

$263.99

68

WELDMENT REAR MOUNT BRACKET

3235399

$47.99

69

SUBASSEMBLY, SECTOR COVER [INCLUDES ALL HARDWARE]

3235713

$107.99

70

SUBASSEMBLY OUTPUT [INCLUDES BEARINGS]

3235335

$342.75

71

SUBASM.,SHAFT [BEARING & RET. RING]

3235336

$355.99

72

SUBASSEMBLY, PAWL DETENT, ROLLER

3235452

$31.99

73

SUBASSEMBLY, LH CASE [INCLUDES ALL HARDWARE]

3235491

$563.19

74

SUBASSEMBLY, SHIFT FORK

3235920

$71.99

74

SUBASSEMBLY, SHIFT FORK

3235920

$71.99

75

SUBASSEMBLY, RH COVER [INCLUDES ALL HARDWARE]

3235995

$405.59

76

COVER-BEARING,CNTR DR.

3235241

$43.99

77

BRACKET WIRE HARNESS

3235350

$8.79

78

BRACKET, REAR MOUNT

3235398

$67.99

79

CHAIN,SIL 101,.25P X .40W X58L

3234737

$159.99

80

SENSOR-SPEED,TRANS

4013908

Unavailable

81

SWITCH, ROTARY 2 PIN RESISTIVE

7662299

$111.99

82

PLUG, M18 X 1.5

3234755

$27.99

83

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$31.99

83

SEAL, TRIPLE LIP, VITON 40 X 70 X 7

3235052

$31.99

84

SEAL, TRIPLE LIP VITON HELIX 30 X 47

3235495

$39.99

85

O-RING

3234302

$7.19

86

O-RING, -12 VITON

3233836

$6.87

87

O-RING, -14 VITON

3233828

$6.79

88

SEAL, TRIPLE LIP 25 X 80 X 10

3234113

$35.99

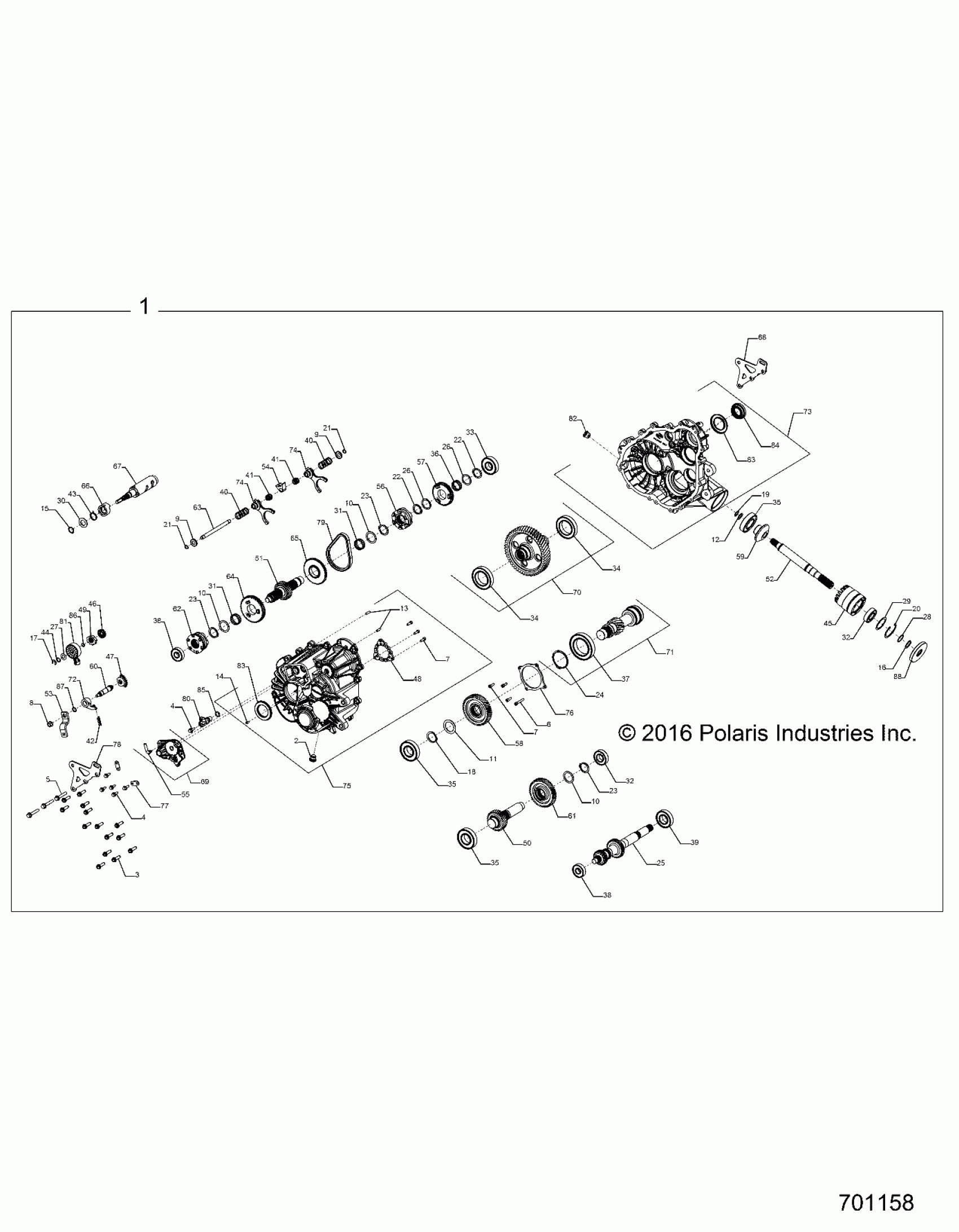

Polaris RZR 1000S4 (R04) - Z19VCE99AM DRIVE TRAIN, MAIN GEARCASE INTERNALS - Z19VCE99AM (701158) Diagram

ASM-GEARCASE,COMPLETE [INCL. ALL]

PLUG, M18 X 1.5 MAGNETIC

SCREW-HEXFLANGEHEAD,M8X1.25X30

SCREW, HEX FLANGE HEAD M6 X 1 X 20

SCREW, HEX FLANGE HEAD M6 X 1 X 20

SCREW HEX FLANGE M8 X 50

SCREW, SOCKET HEAD CAP, M6 X 1 X 40

SCREW, SOCKET HEAD CAP, M6 X 1 X 18

SCREW, SOCKET HEAD CAP, M6 X 1 X 18

NUT, LOCK HEX FLANGE NYLON M8 X 1.25

WASHER-CUP

WASHER-CUP

WASHER 32.3 X 42 X 1.5

WASHER 32.3 X 42 X 1.5

WASHER 32.3 X 42 X 1.5

WASHER 35.6 X 50 X 1.5

WASHER 17.3 X 25 X 1.5

PIN, DOWEL 6 X 20

PIN, SPRING SLOTTED 6 X 12

RING,RETAINING BASIC,EXTERNAL 0.75

RING,RETAINING BASIC,EXTERNAL 0.984

RING SNAP

RING, RETAINING SHAFT, DIA. 1.375

RING, RETAINING EXTERNAL SHR-66

RING,RETAINING BASIC,INTERNAL 2.047

RING,RETAINING BASIC,EXTERNAL 0.428

RING,RETAINING BASIC,EXTERNAL 0.428

RING, RETAINING

RING, RETAINING

RING-RETAIN,EXT,MSR-32(130296)

RING-RETAIN,EXT,MSR-32(130296)

RING-RETAIN,EXT,MSR-32(130296)

RING, RETAINING VSH-237

SHAFT, INPUT 42T/20T/31T

WASHER,THRUST,1.187 X 1.500 X .0600

WASHER,THRUST,1.187 X 1.500 X .0600

WASHER,THRUST,0.446 X 0.88 X 0.025

SHIM 1.18 OD X 0.995 ID

SHIM 2.04 OD X 1.63 ID

SPACER, 19.4 X 34 X 2

BEARING, NEEDLE

BEARING, NEEDLE

BEARING, BALL, 6205 C3 25X52X15

BEARING, BALL, 6205 C3 25X52X15

BEARING

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING-BALL 6010 C3 50 X 80 X 10

BEARING,BALL 6207 C3 35X72X17

BEARING,BALL 6207 C3 35X72X17

BEARING,BALL 6207 C3 35X72X17

BEARING, NEEDLE CAGE ASSY

BEARING, BALL 6012 C3 60 X 95 X 18

BEARING, BALL 6303 17 X 47 X 14

BEARING, BALL 6303 17 X 47 X 14

BEARING, BALL 6206RSH2 STD 30X62X16

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING,COMPRESSION, .92 O.D. X 2.000

SPRING, COMPRESSION 0.46 I.D. X 0.73

SPRING, COMPRESSION 0.46 I.D. X 0.73

SPRING, COMPRESSION 0.36 O.D. X 1.125

SPRING, TORSION

SPRING, WASHER

TUBE, SNORKEL MACH

GEAR, SECTOR 16T

GEAR-SECTOR,31T

PLATE, PARK 12-FACE

STAR, DETENT

SHAFT, IDLER 29T

SHAFT-REVERSE,27T(285878)

SHAFT, FRONT OUTPUT

BELLCRANK

COLLAR-SHIFT

TUBE, VENT 90 -1/4" HOSE

ENGAGEMENT DOG, 6-FACE

GEAR, 53T

GEAR, 46T STAGE 3

GEAR, 13T SNORKEL

SHAFT-SHIFT(352973)

GEAR, 46T STAGE 2
