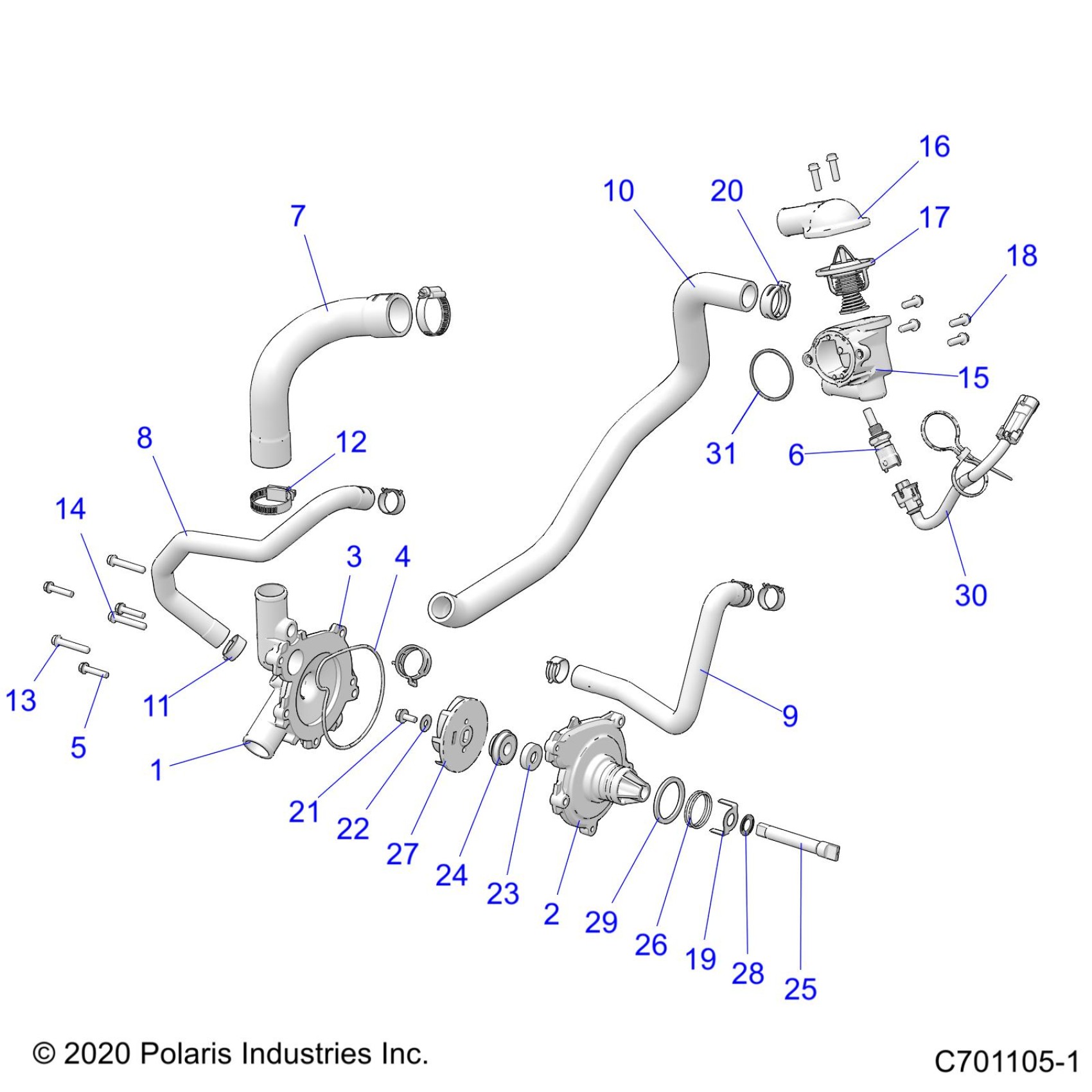

Polaris RZR 1000 S4 (R01) - Z21A4E99AX/BX ENGINE, WATERPUMP AND BYPASS - Z21A4E99AX/BX(C701105) Diagram

#

Description
Price

1

ASM-WATERPUMP

1205014

$215.59

2

ASM, WATER PUMP HOUSING [INCL. 19,21-28]

-------

Unavailable

3

ASM, WATERPUMP COVER

-------

Unavailable

4

GASKET, WATERPUMP COVER

-------

Unavailable

5

SCREW

-------

Unavailable

6

SENSOR-THERMISTER

4010644

$87.13

7

HOSE-WATERPUMP,OUT

5416305

$59.99

8

HOSE-OIL COOLER OUT

5416752

$27.99

9

HOSE-OIL COOLER,IN

5416307

$14.39

10

HOSE-BYPASS

5416629

$35.99

11

CLAMP, HOSE, SPRING

7081026

$7.99

12

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

13

SCREW

7519280

$4.79

14

SCREW

7519297

$3.99

15

HOUSING, THERMOSTAT

5139853

$19.99

16

COVER, THERMOSTAT, CAST

5632421

$35.99

17

THERMOSTAT

7052600

$43.99

18

SCREW

7518576

$3.19

20

CLAMP, SPRINGBAND

7081970

$5.59

21

SCREW

-------

Unavailable

22

WASHER, IMPELLER

-------

Unavailable

23

SEAL, WATERPUMP SHAFT, OIL

-------

Unavailable

24

SEAL, WATERPUMP SHAFT, WATER

-------

Unavailable

25

SHAFT, WATERPUMP

-------

Unavailable

26

O-RING

-------

Unavailable

27

IMPELLER, WATERPUMP

-------

Unavailable

29

FILTER-WP

5814207

$2.39

30

WIRE-THERMISTER LEAD

4014319

$75.99

31

O-RING

5414591

$3.22
