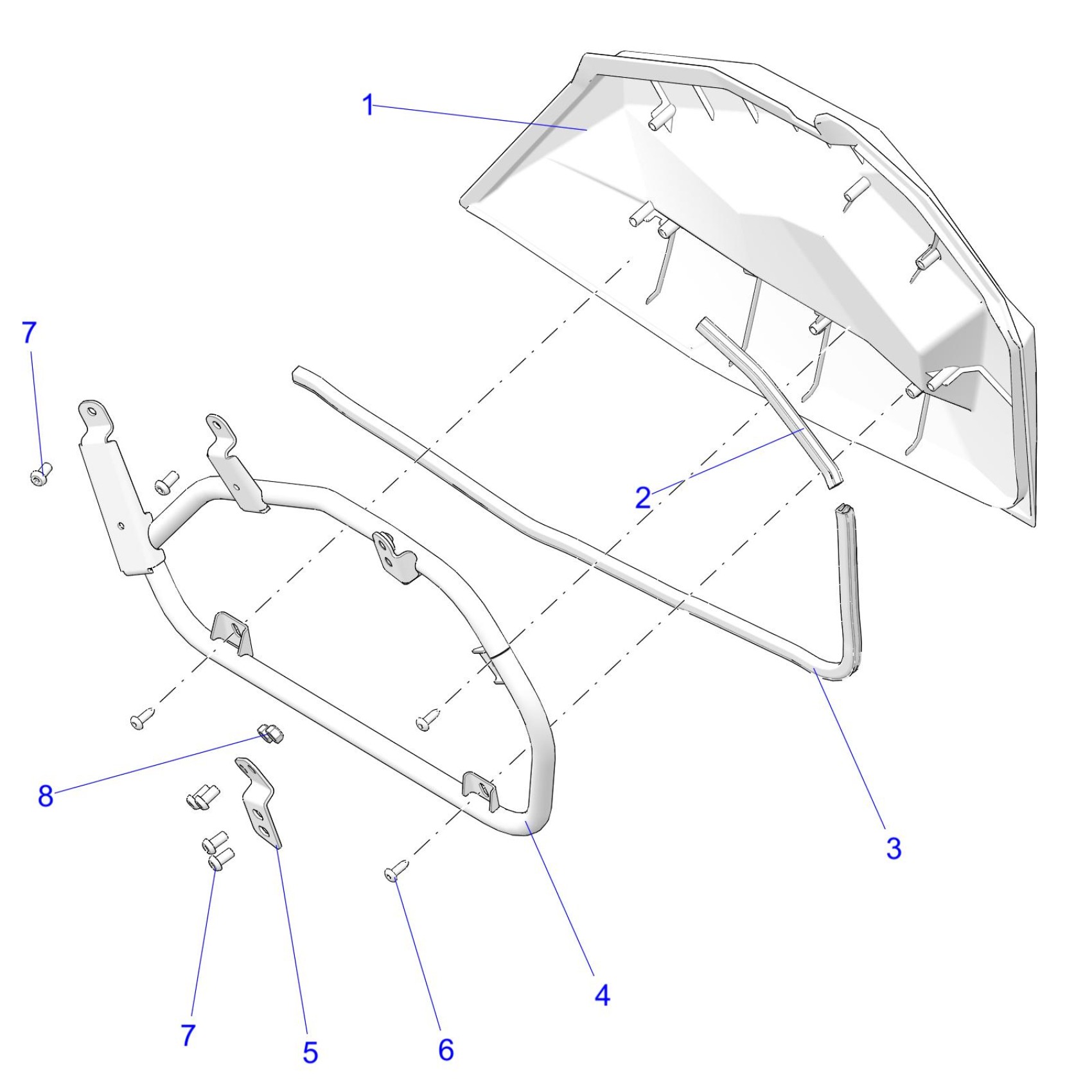

Polaris RZR 1000 S4 (R01) - Z21A4E99AX/BX BODY, DOORS, FRONT,LOWER - Z21A4E99AX/BX(C701117-1)) Diagram

#

Description

Price

-

ASM-DOOR,BOTTOM HALF,LH LH SHOWN [INCL. 1-8]

2635569

$453.32

-

ASM-DOOR,BOTTOM HALF,RH [INCL. 1-8]

2635570

$453.32

1

PANEL, DOOR, PLASTIC, LOWER, LH

5450616

$139.99

1

PANEL, DOOR, PLASTIC, LOWER, RH

5450617

$139.99

2

SEAL, WEATHER STRIP, LOWER, DOOR

5522024-180

$24.27

3

SEAL, WEATHER STRIP, LOWER, DOOR

5522024-837

$44.51

4

WELD-MOUNT,DOOR,LOWER,LH,RZN

1019994

$135.54

4

WELD-MOUNT,DOOR,LOWER,RH,RZN

1019999

$132.99

5

MOUNT-LWR DOOR,LH,RZN

5258254

$39.99

5

MOUNT-LWR DOOR,RH,RZN

5258255

$39.99

6

SCR-TX TRUSS-#14X3/4, HI/LO ZBK

7519045

$3.17

7

SCREW-HXBH-M8X1.25X16 10.9 ZPB

7517484

$4.76

7

SCREW-HXBH-M8X1.25X16 10.9 ZPB

7517484

$4.76

8

NUT-NYLOCK M8X1.25-Y

7547144

$3.17
