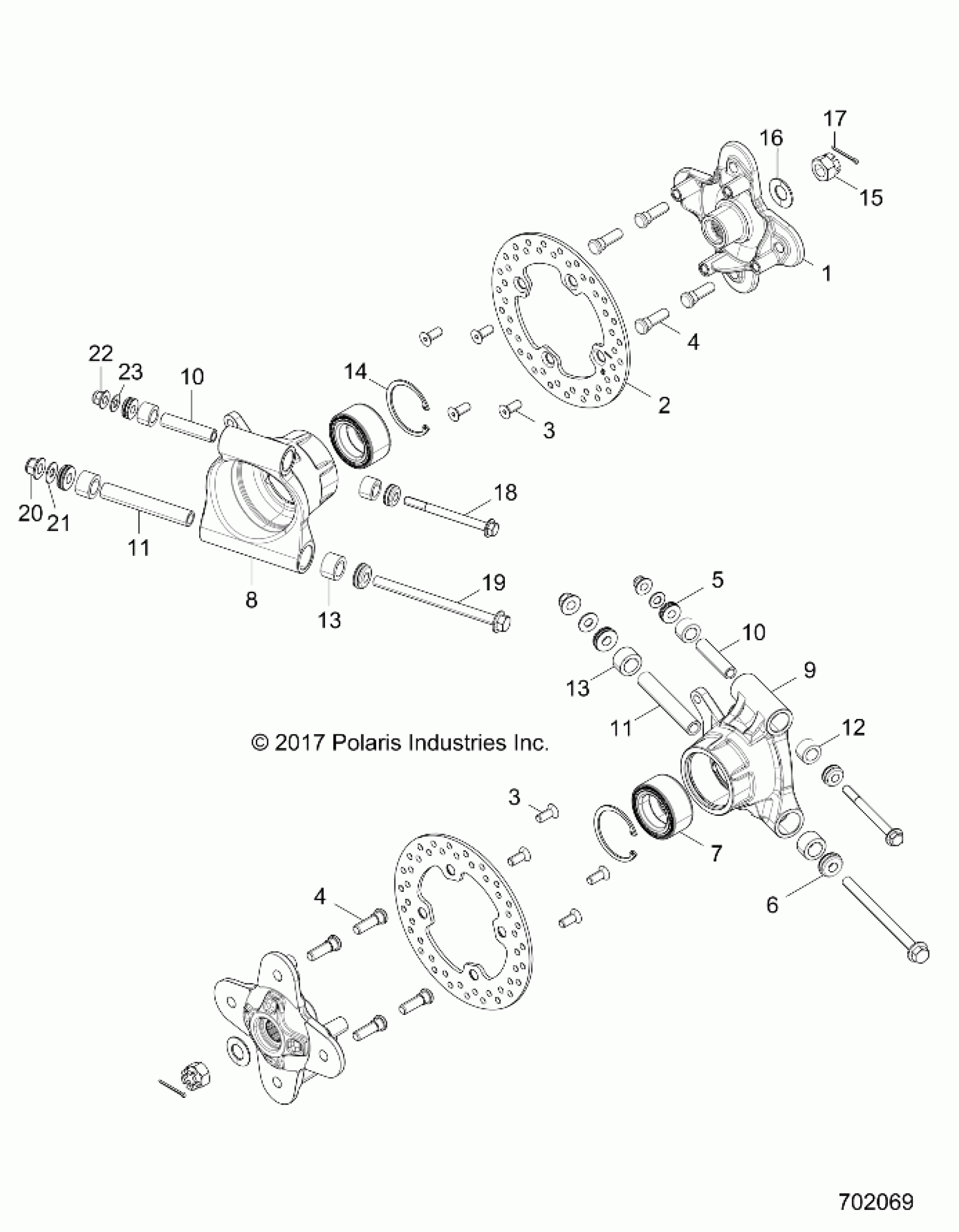

Polaris RZR 1000 60 INCH PS (R07) - Z19VBE99AM/BM/LM SUSPENSION, REAR CARRIER - Z19VBE99AM/BM/LM (702069) Diagram

#

Description
Price

1

HUB-WHEEL,MACH,BLK

5141366-458

$111.99

2

ROTOR,BRAKE

5263266

$67.99

3

SCR-M10X1.5X20 8.8 TXCS FL ZOD

7518978

$3.99

3

SCR-M10X1.5X20 8.8 TXCS FL ZOD

7518978

$3.99

4

STUD-WHEEL,M12-1.5

7519753

$4.79

4

STUD-WHEEL,M12-1.5

7519753

$4.79

5

ASM-PIVOT CAP,SEALED,M10

1543611

$5.59

6

ASM-PIVOT CAP,SEALED,M12

1543612

$5.59

7

BEARING-BALL,SEALED,44X72X33.1

3514924

$39.99

7

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

8

CARRIER-BEARING,WHEEL,LH

5139979

$99.99

8

CARRIER-BEARING,WHEEL,RH

5139980

$99.99

9

NUT-M12X1.5,FLG,NYLOC-OLIVE D

7547334

$4.79

10

SHAFT-PIVOT,SHORT,M10

5139990

$5.59

10

SHAFT-PIVOT,SHORT,M10

5139990

$5.59

11

SHAFT-PIVOT,LONG,M12

5139991

$8.79

11

SHAFT-PIVOT,LONG,M12

5139991

$8.79

12

BUSHING-STANDARD,SUSP,M10

5452233

$2.39

13

BUSHING-STANDARD,SUSP,M12

5452271

$3.19

13

BUSHING-STANDARD,SUSP,M12

5452271

$3.19

14

RING-RETAINING,2.875,INTERNAL

7710440

$10.39

15

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.99

16

WSHR-AXLE,M18,42X4.5

7557134

$7.99

16

WSHR-AXLE,M18,42X4.5

7557134

$7.99

17

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

18

SCREW, HEX FLANGE

7519365

$13.59

19

SCREW, HEX FLANGE

7520294

$11.19

20

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

21

WASHER-7/16 SAE,STF,THRU-HRD-Y

7556212

$8.79

22

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

23

WASHER-3/8 FW SAE STL THRU-HRD

7556153

$1.99
