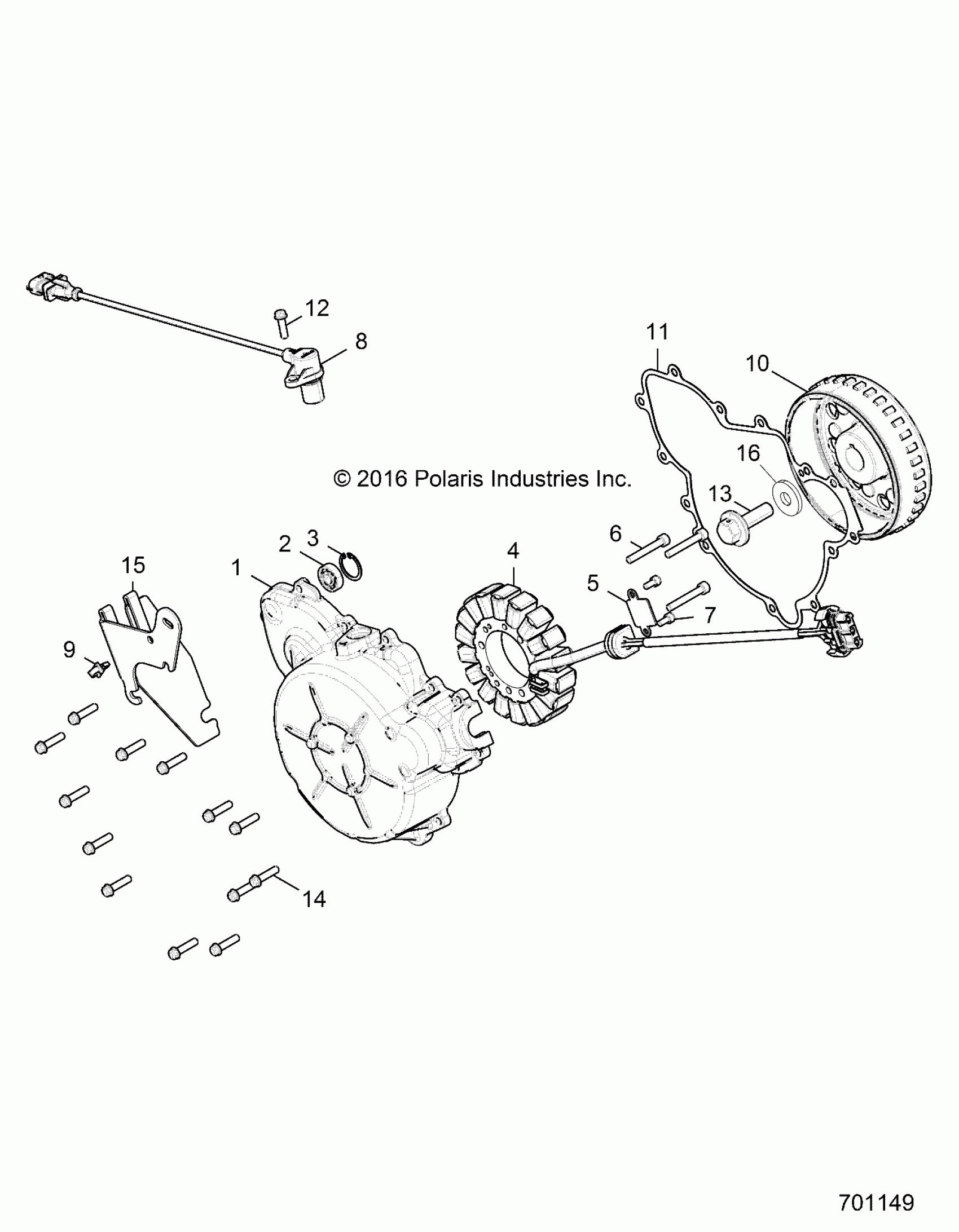

Polaris RZR 1000 60 INCH PS (R07) - Z19VBE99AM/BM/LM ENGINE, STATOR and COVER - Z19VBE99AM/BM/LM (701149) Diagram

Description

Price

ASM., IGNITION COVER, STARTER BEARING [INCL. 3,4]

1204518

$159.75

BEARING, BALL

3514717

$8.79

RING, SNAP

7710654

$23.99

STATOR

4015340

$263.99

BRACKET, RETAINER, WIRE

5255473

$7.19

SCREW

7510005

$5.70

SCREW

7517847

$3.19

SENSOR, CRANK POSITION

2411719

$101.17

CLIP-WIRE,6.35MM

7081477

$3.19

FLYWHEEL

4013969

$503.09

GASKET, COVER, MAG

5814160

$39.99

SCREW

7518576

$3.19

SCR-HXFL-M12X1.25X43 12.9

7520178

$27.99

SCREW

7519297

$3.99

BRKT-BYPASS-SHIFTER

5259742

$31.99

WSHR-32X12X4,HARD

7556885

$5.59
