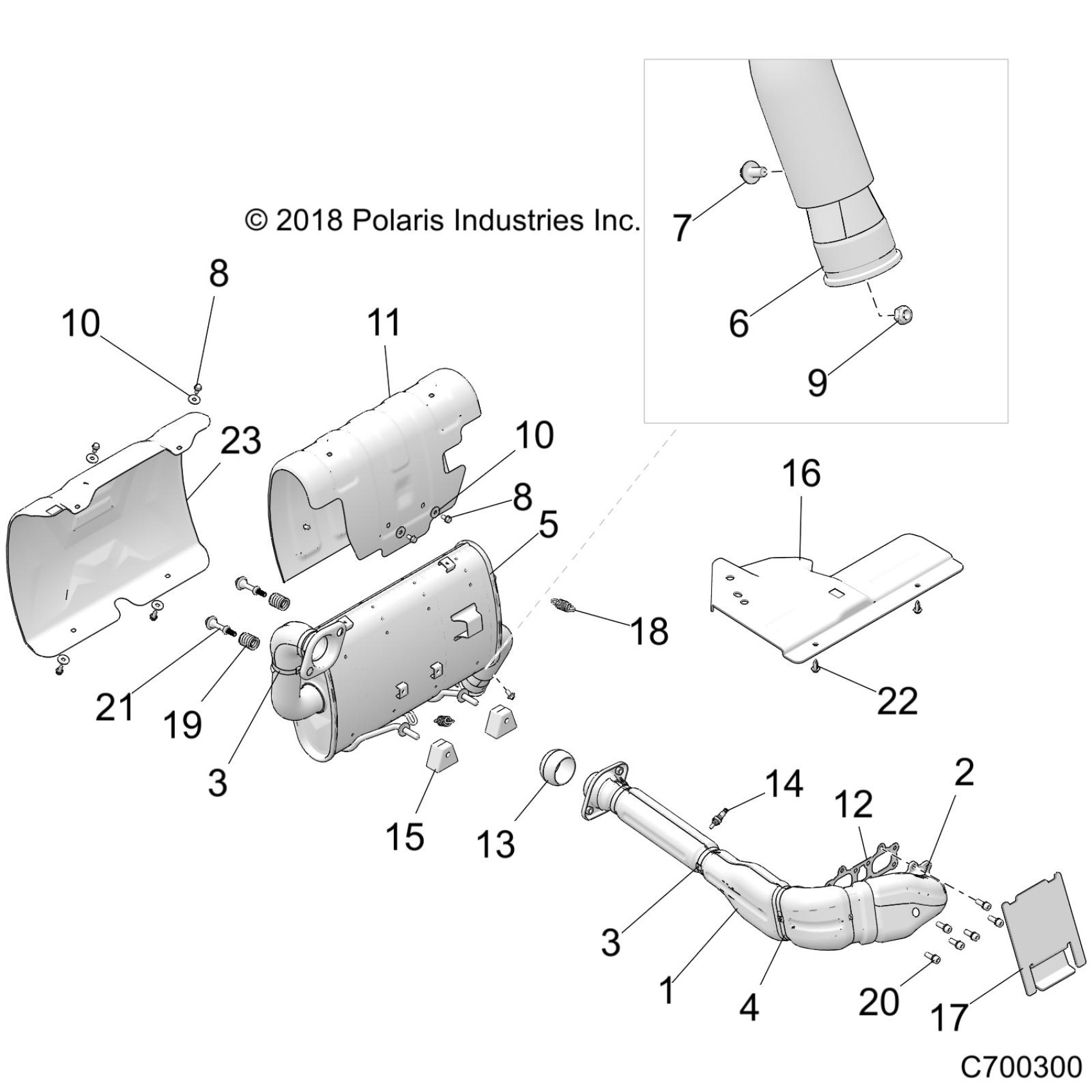

Polaris RZR 1000 60 INCH PS (R07) - Z19VBE99AM/BM/LM ENGINE, EXHAUST SYSTEM - Z19VBE99AM/BM/LM (C700300) Diagram

#

Description
Price

1

ASM., HEADPIPE [INCL 2-4]

1262674

$475.19

2

CLAMP-HEAT SHIELD,EXHAUST

7081156

$7.19

3

CLAMP, HEAT SHIELD,EXHAUST

7081579

$7.19

3

CLAMP, HEAT SHIELD,EXHAUST

7081579

$7.19

4

CLAMP-HEAT SHIELD,EXHAUST

7081915

$7.19

5

ASM-SILENCER [INCL. 3,6-11]

1263243

$633.59

6

SPARK ARRESTOR

1262123

$47.99

7

SCREW

7517257

$9.59

8

SCREW

7518490

$1.49

8

SCREW

7518490

$1.49

9

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

10

Washer

7555935

$2.39

10

Washer

7555935

$2.39

11

SHIELD-SILENCER

5260630

$75.99

12

GASKET-EXHAUST SEAL

3610184

$48.56

13

SEAL, EXHAUST

3610248

$35.99

14

SENSOR-OXYGEN

4016021

$159.99

15

MOUNT, ISOLATOR

5450115

$14.39

16

SHIELD-FRONT BOX

5814042

$55.99

17

SHIELD-ACCESS PANEL

5814648

Unavailable

18

SPRING-EXHAUST

7041789

$7.99

19

SPRING-SPHERICAL,EXHAUST

7044274

$14.39

20

SCREW

7518984

$7.99

21

STUD-SPHERICAL,EXHAUST

7520079

$13.59

22

RIVET-TUFLOK,.315-.325X.787

7661855

$1.49

23

SHIELD-SILENCER,OUTER,BLK

5260918-458

$119.99
