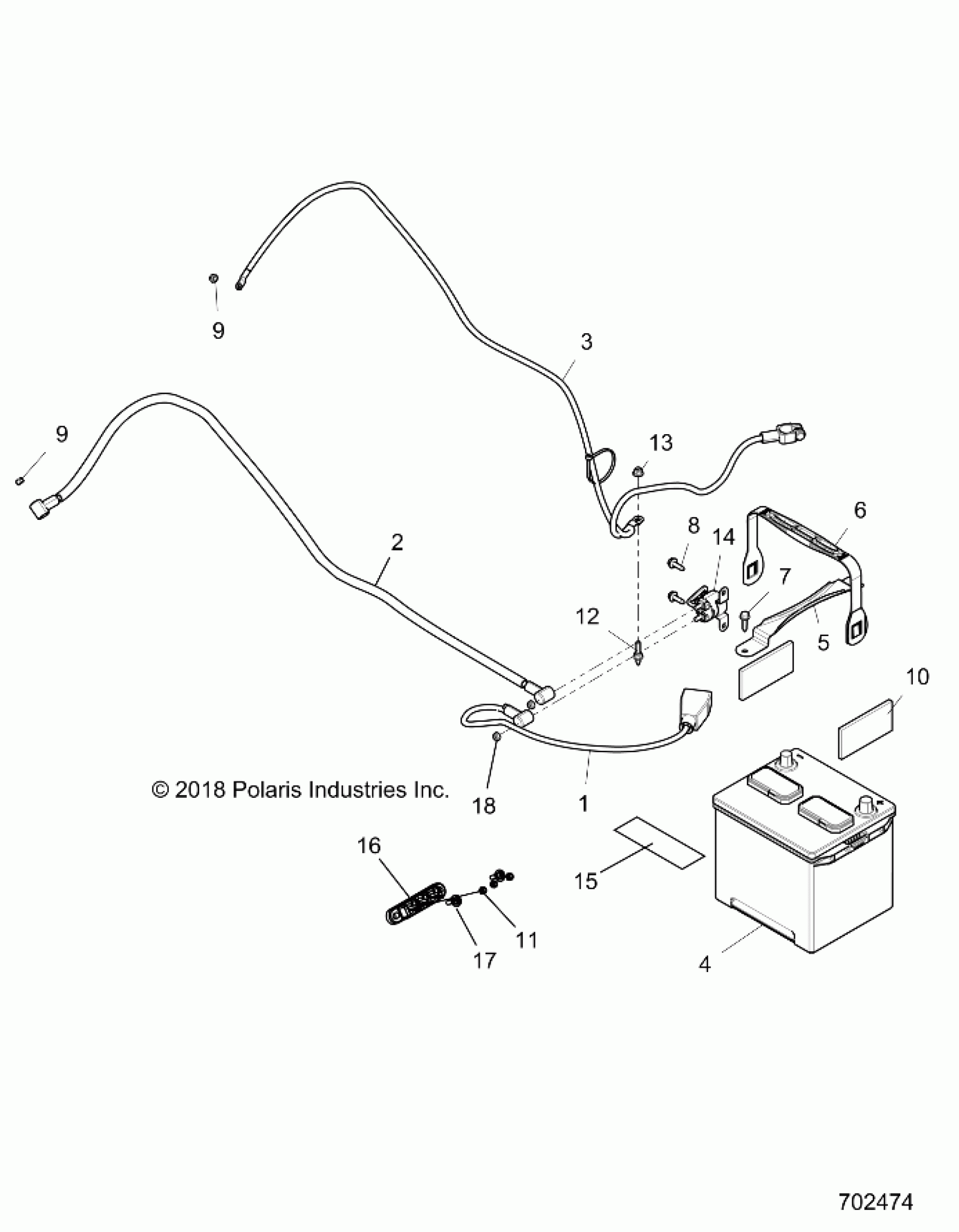

Polaris RZR 1000 60 INCH PS (R07) - Z19VBE99AM/BM/LM ELECTRICAL, BATTERY - Z19VBE99AM/BM/LM (702474) Diagram

#

Description
Price

1

CABLE, BATTERY TO SOLENOID

4015499

$43.99

2

CABLE, START TO SOLENOID

4015500

$43.99

3

CABLE, GROUND

4015498

$43.99

4

BATTERY-575 CCA,FLOODED,FILLED

4014132

Unavailable

4

BATTERY-HD,AGM,SEALED,R2 [HD OPTION]

4081855

$183.99

5

STRAP, BATTERY, MAIN, BLACK

5257312-329

$19.99

6

STRAP, BATTERY, LIFT

5450916

$5.59

7

SCREW

7519731

$3.99

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

9

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

9

NUT-6MM X 1 NYLOK-Z

7546703

$1.49

10

PAD, BATTERY, FOAM

5814037

Unavailable

11

NUT

7547341

$1.49

12

STUD

7519333

$7.99

13

NUT-M6 FLANGE,NYLOC

7547274

$1.49

14

SOLENOID-STARTER,SEALED

4014655

$49.99

15

DECAL-BATTERY,POLARIS

7177052

$4.79

16

BLOCK-TERMINAL,3 POST,TALL

4015778

$27.99

17

Screw

7518196

$1.49

18

NUT-HXFLGHD,M6,SERRATED

7547270

$3.99
