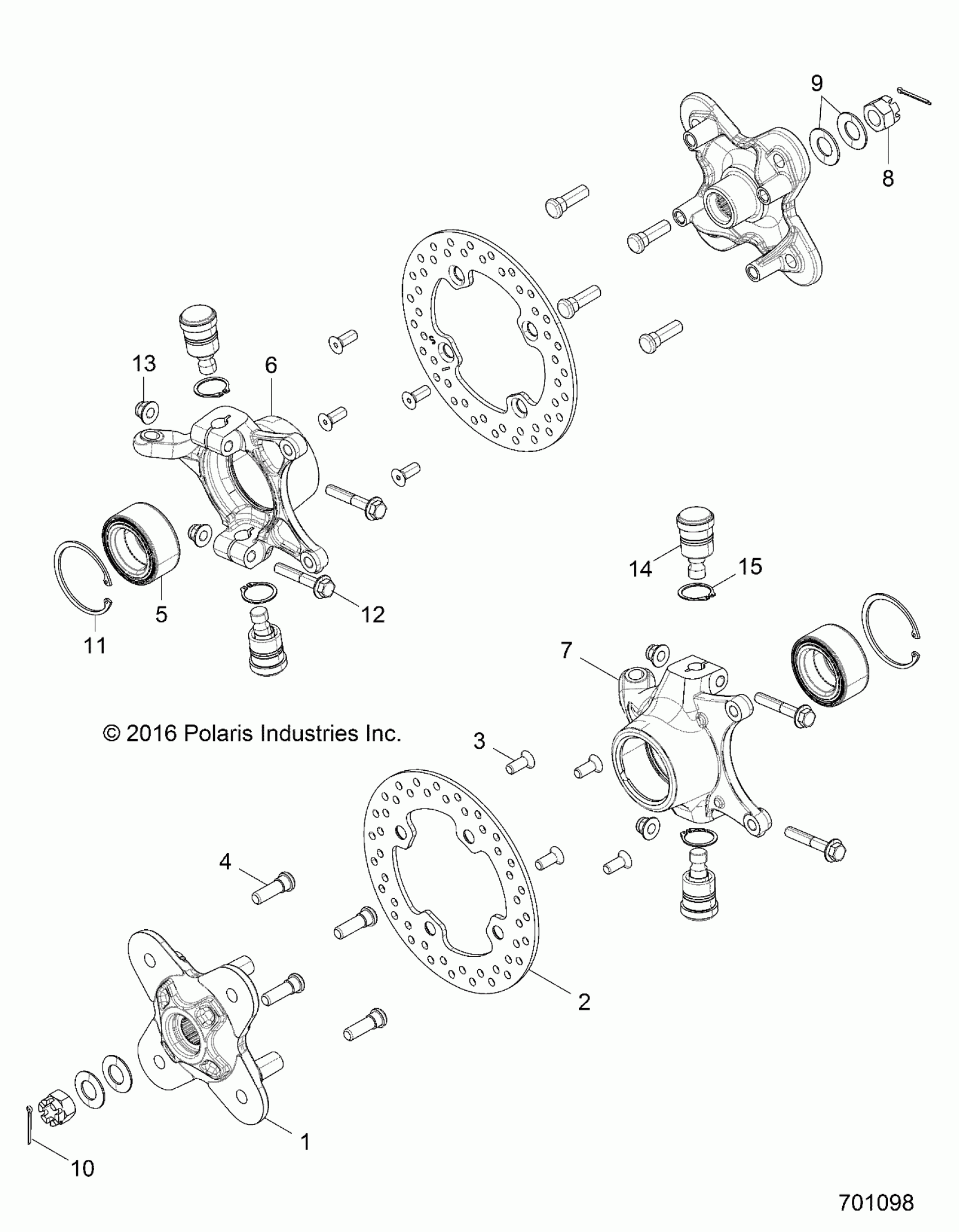

Polaris RZR 1000 60 INCH EPS (R10) - Z17VBE99AR/AL/AE SUSPENSION, FRONT CARRIER - Z17VBE99AR/AL/AE (701098) Diagram

HUB-WHEEL,MACH,BLK

5139978-458

Unavailable

DISC-BRAKE, FRONT

5254999

$67.99

SCR-M10X1.5X20 8.8 TXCS FL ZOD

7518978

$3.99

STUD-WHEEL,M12-1.5

7519753

$4.79

BEARING-BALL,SEALED,44X72X33.1

3514822

Unavailable

BEARING-WHEEL,HD,44X72X33.1MM [OPTIONAL]

3515090

$63.99

CARRIER-BEARING,WHEEL,LH(MACH)

5139093

Unavailable

CARRIER-BEARING,WHEEL,RH(MACH)

5139094

Unavailable

NUT-M18X1.5,CASTLE,ZINC/YELLOW

7547337

$1.99

WASHER-CONE.755X1.5X.072-.107P

7555796

$7.99

PIN-COTTER 1/8X1 1/2-Y

7661404

$4.79

RING-RETAINING,2.835,INTERNAL

7710780

$9.59

SCR-HXFL-M10X1.25X60 10.9 ZOD

7519306

$5.59

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

BALL, JOINT

7081924

Unavailable

RING, RETAINER

7710533

$2.39
