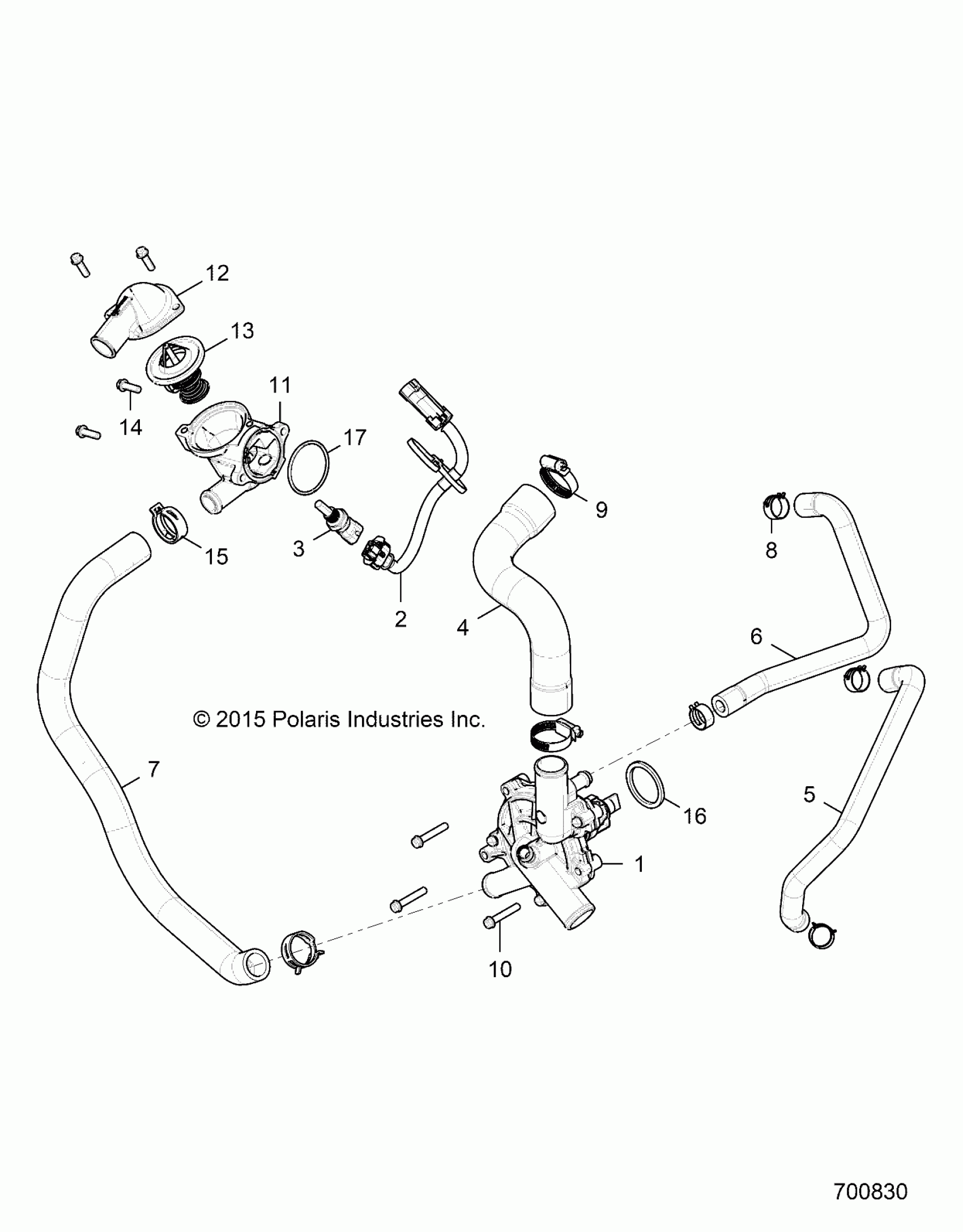

Polaris RZR 1000 60 INCH EPS (R10) - Z17VBE99AR/AL/AE ENGINE, WATERPUMP AND BYPASS - Z17VBE99AR/AL/AE (700829) Diagram

Description

Price

ASM-WATERPUMP

1205014

$215.59

WIRE-THERMISTER LEAD

4014319

$75.99

SENSOR-THERMISTER

4010644

$87.13

HOSE-WATER PUMP OUT,FORMED

5414208

$63.99

HOSE-OIL COOLER OUTLET

5414282

$27.99

HOSE, OIL COOLER IN

5414475

$27.99

HOSE, BYPASS

5415599

$39.99

CLAMP, HOSE, SPRING

7081026

$7.99

CLAMP-HOSE(WORM DR)25-40MM

7081192

$7.99

SCREW

7519280

$4.79

HOUSING, THERMOSTAT

5139853

$19.99

COVER, THERMOSTAT, CAST

5632421

$35.99

THERMOSTAT

7052600

$43.99

SCREW

7518576

$3.19

CLAMP, SPRINGBAND

7081970

$5.59

FILTER-WP

5814207

$2.39

O-RING

5414591

$3.22
