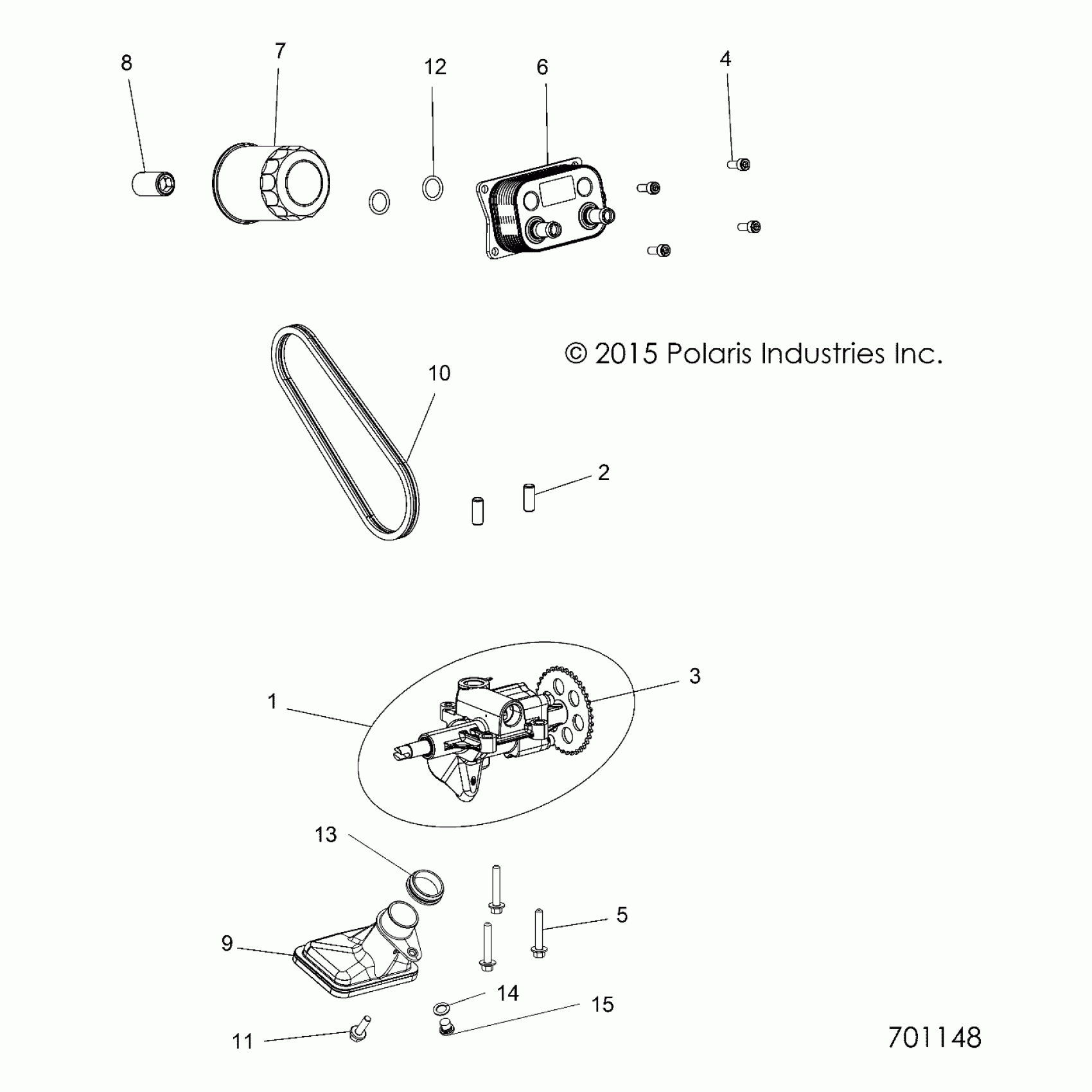

Polaris RZR 1000 60 INCH EPS (R10) - Z17VBE99AR/AL/AE ENGINE, OIL PUMP and OIL COOLER - Z17VBE99AR/AL/AE (701148) Diagram

#

Description
Price

1

PUMP-OIL [INCL. 3,O-RING]

3023124

$224.39

1

O-RING,OIL PUMP

3610269

$9.59

2

DOWEL-HOLLOW,OIL PUMP

7661975

$4.79

3

SPROCKET, OIL PUMP

-------

Unavailable

4

SCREW

7519303

$3.99

5

SCREW

7516827

$6.39

6

COOLER, OIL TO WATER

1240820

$95.99

7

FILTER-OIL (10 MICRON)

2540086

$11.99

7

FILTER-HD,OIL [HD OPTION]

2522485

$15.99

8

ADAPTOR-FILTER,STRAIGHT

2521530

$31.99

9

PICKUP, OIL

2521699

$47.99

10

CHAIN, OIL PUMP DRIVE

3222191

Unavailable

11

SCREW

7519236

$3.19

12

O-RING

5413837

$4.84

13

SEAL-PICKUP

5415949

$5.59

14

WASHER-19X12X1.3,COPPER

5812232

$1.59

15

PLUG-SOCKET,M12X1.5 DIN 908A

7052306

$15.37
