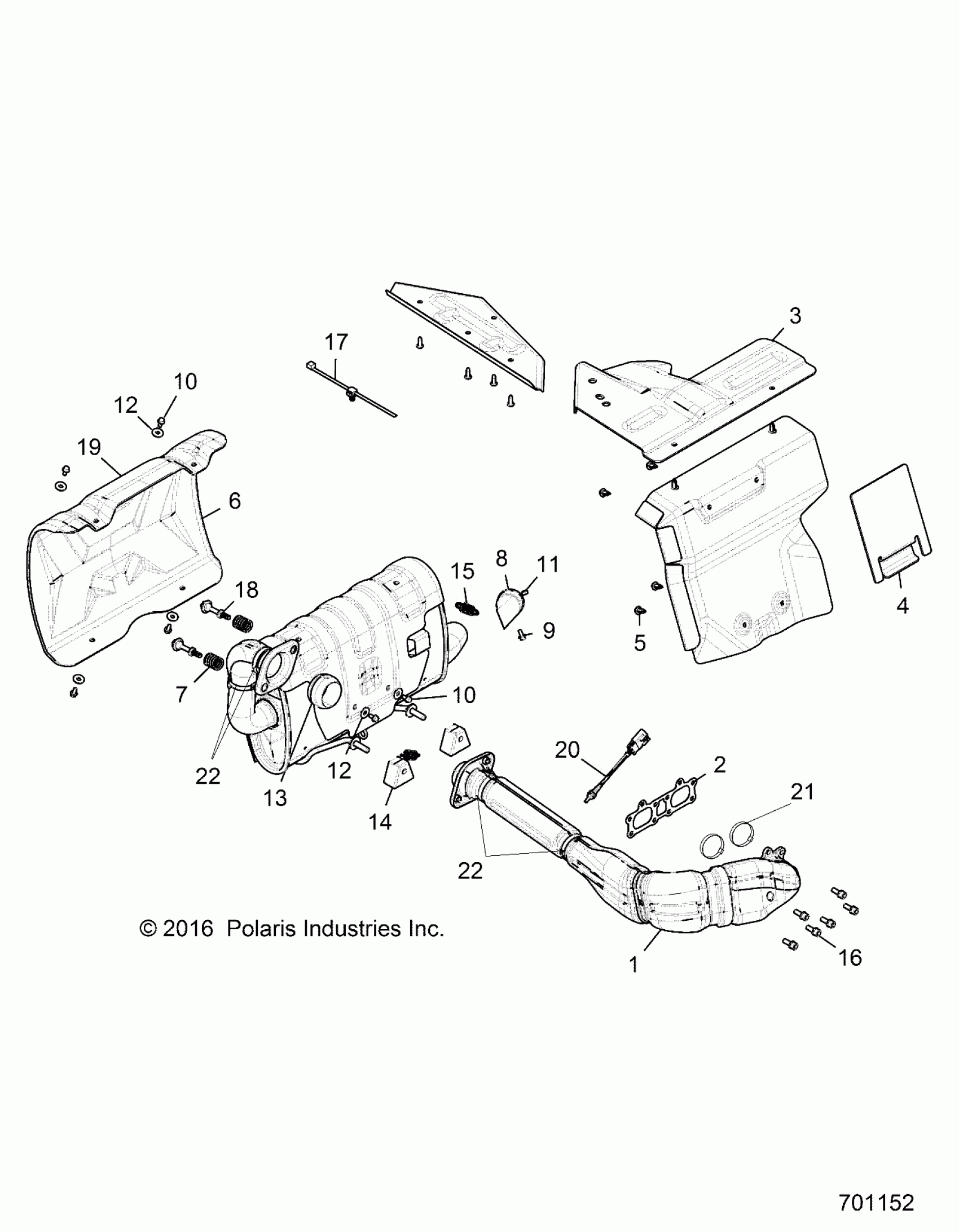

Polaris RZR 1000 60 INCH EPS (R10) - Z17VBE99AR/AL/AE ENGINE, EXHAUST SYSTEM - Z17VBE99AR/AL/AE (701152) Diagram

#

Description
Price

1

ASM., HEADPIPE

1262674

$475.19

1

ASM., HEADPIPE

1262674

$475.19

2

GASKET-EXHAUST SEAL

3610184

$48.56

3

SHIELD-FRONT BOX

5814042

$55.99

4

SHIELD, ACCESS PANEL

5814082

$39.99

5

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.49

6

ASM., SILENCER [INCL. 8,9,11, QTY 4 of 10,12]

1262670

$615.99

7

SPRING-SPHERICAL,EXHAUST

7044274

$14.39

8

SPARK ARRESTOR

1262123

$47.99

9

SCREW

7517257

$9.59

10

SCREW

7518490

$1.49

10

SCREW

7518490

$1.49

11

NUT-HEX-M6X1.0 8 SPC

7547120

$4.79

12

Washer

7555935

$2.39

12

Washer

7555935

$2.39

13

SEAL, EXHAUST

3610248

$35.99

14

MOUNT, ISOLATOR

5450115

$14.39

15

SPRING-EXHAUST

7041789

$7.99

16

SCREW

7518984

$7.99

17

CLIP FIR-TREE,DIA6-33MM

7081496

$4.79

18

STUD-SPHERICAL,EXHAUST

7520079

$13.59

19

SHIELD-SILENCER,OUTER,BLK

5260918-458

$119.99

20

SENSOR-OXYGEN

4016021

$159.99

21

CLAMP-HEAT SHIELD,EXHAUST

7081156

$7.19

22

CLAMP, HEAT SHIELD,EXHAUST

7081579

$7.19

22

CLAMP, HEAT SHIELD,EXHAUST

7081579

$7.19
