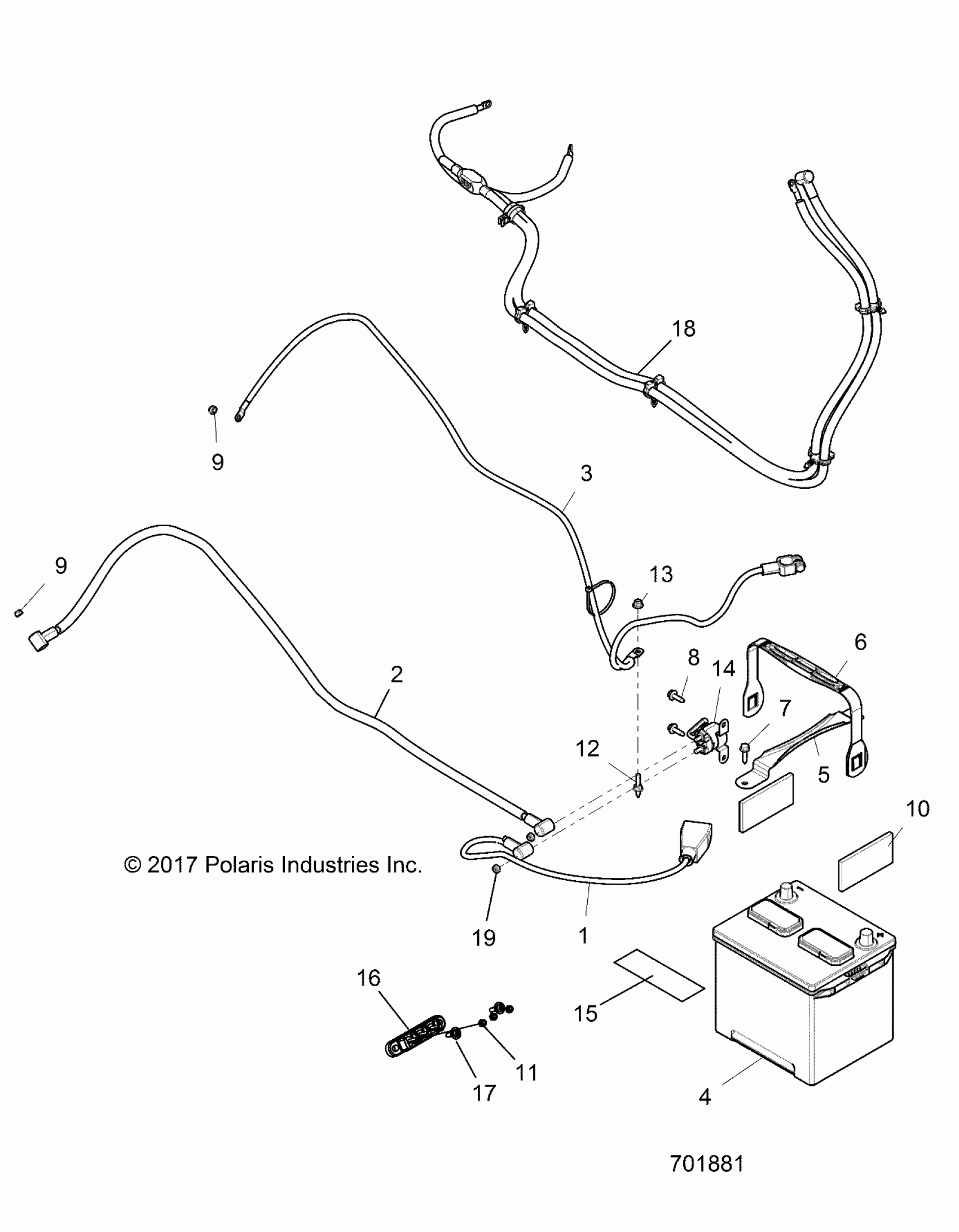

Polaris RZR 1000 60 INCH EPS (R06) - Z18VBE99BW ELECTRICAL, BATTERY - Z18VBE99BW (701881) Diagram

#

Description
Price

1

CABLE, BATTERY TO SOLENOID

4015499

$53.24

2

CABLE, START TO SOLENOID

4015500

$44.51

3

CABLE, GROUND

4015498

$53.24

4

BATTERY-575 CCA,FLOODED,FILLED

4014132

$166.65

4

BATTERY-HD,AGM,SEALED,R2 [HD OPTION]

4081855

$190.48

5

STRAP, BATTERY, MAIN, BLACK

5257312-329

$24.99

6

STRAP, BATTERY, LIFT

5450916

$5.65

7

SCREW

7519731

$3.97

8

SCR-M6X1.0X20,HXHD,FLG,TDFM,BK

7518529

$1.19

9

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

9

NUT-6MM X 1 NYLOK-Z

7546703

$1.19

10

PAD, BATTERY, FOAM

5814037

$7.27

11

NUT

7547341

$0.79

12

STUD

7519333

$7.94

13

NUT-M6 FLANGE,NYLOC

7547274

$1.19

14

SOLENOID-STARTER,SEALED

4014655

$54.99

15

DECAL-BATTERY,POLARIS

7177052

$5.65

16

BLOCK-TERMINAL,3 POST,TALL

4015778

$32.37

17

Screw

7518196

$1.19

18

CABLE-ACCY,BATT,TERM BLK,MIDI

4015713

$145.22

19

NUT-HXFLGHD,M6,SERRATED

7547270

$3.97
