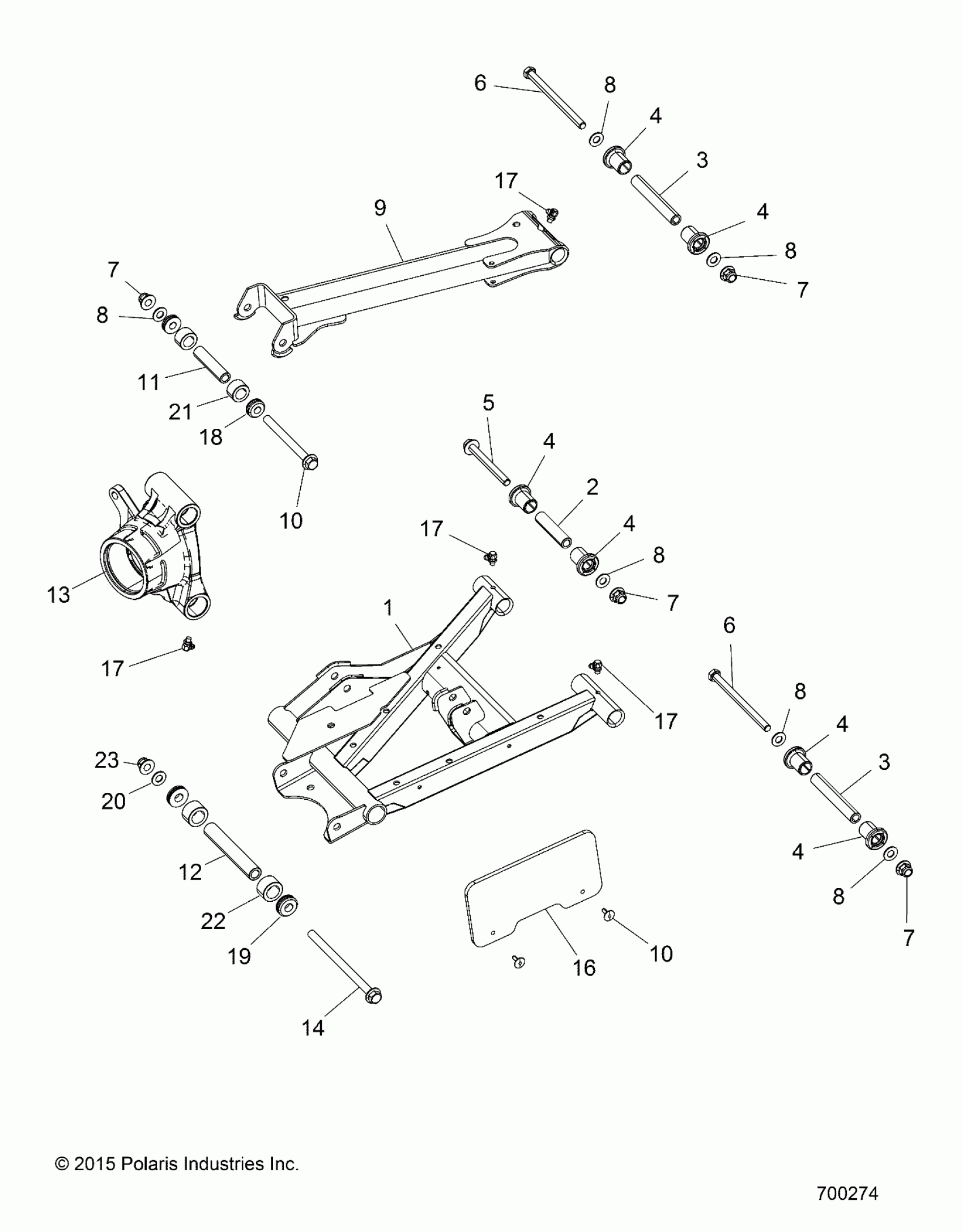

Polaris RZR 1000 60 INCH ALL OPTIONS (R12) - Z16VBE99AK/AW/AB SUSPENSION, REAR CONTROL ARMS - Z16VBE99AK/AW/AB (700274) Diagram

#

Description
Price

1

A-ARM, REAR, LOWER, LH, 60, CLOUD SILVER [AW]

1021287-385

Unavailable

1

A-ARM, REAR, LOWER, LH, 60, MATTE BLACK [AK][AB]

1021287-458

$259.99

1

A-ARM, REAR, LOWER, RH, 60, CLOUD SILVER [AW]

1021288-385

Unavailable

1

A-ARM, REAR, LOWER, RH, 60, MATTE BLACK [AK][AB]

1021288-458

$259.99

2

SHAFT-PIVOT,70.99MM,15.88OD

5138797

$10.44

3

SHAFT, PIVOT

5138798

$28.32

3

SHAFT, PIVOT

5138798

$28.32

4

BUSHING-STANDARD,ORV

5439874

$2.38

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

4

BUSHING-STANDARD,ORV

5439874

$2.38

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

4

BUSHING-STANDARD,ORV

5439874

$2.38

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

4

BUSHING-STANDARD,ORV

5439874

$2.38

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

4

BUSHING-STANDARD,ORV

5439874

$2.38

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

4

BUSHING-STANDARD,ORV

5439874

$2.38

4

ASM-BUSHING,HD,W/SEAL,5.23 FLG [OPTIONAL]

1543367

$10.32

5

SCREW, HEX FLANGE

7519043

$9.52

6

SCREW

7519897

$13.49

6

SCREW

7519897

$13.49

7

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

7

NUT-HXFL M10X1.25 8 ZTB NYL

7547333

$1.59

8

WASHER

7556153

$1.98

8

WASHER

7556153

$1.98

8

WASHER

7556153

$1.98

8

WASHER

7556153

$1.98

8

WASHER

7556153

$1.98

8

WASHER

7556153

$1.98

9

A-ARM, REAR, UPPER, LH, 60, CLOUD SILVER [AW]

1018820-385

Unavailable

9

A-ARM, REAR, UPPER, LH, 60, MATTE BLACK [AK][AB]

1018820-458

Unavailable

9

A-ARM, REAR, UPPER, RH, 60, CLOUD SILVER [AW]

1018821-385

Unavailable

9

A-ARM, REAR, UPPER, RH, 60, MATTE BLACK [AK][AB]

1018821-458

Unavailable

10

RIVET

7621467

$1.19

10

RIVET

7621467

$1.19

11

SHAFT-PIVOT,SHORT,M10

5139990

$5.65

12

SHAFT-PIVOT,LONG,M12

5139991

$8.89

13

CARRIER, BEARING, WHEEL, LH

5139979

$118.74

13

CARRIER, BEARING, WHEEL, RH

5139980

$118.74

14

SCR-HXFL-M12X1.5X170 10.9 ZOD

7520294

$13.29

16

SHIELD, CV, REAR, BLACK

5451336-070

$32.37

17

FITTING, ZERK

7080510

$5.56

17

FITTING, ZERK

7080510

$5.56

17

FITTING, ZERK

7080510

$5.56

17

FITTING, ZERK

7080510

$5.56

18

ASM-PIVOT CAP,SEALED,M10

1543611

$5.65

19

ASM-PIVOT CAP,SEALED,M12

1543612

$5.65

20

WASHER

7556212

$8.73

21

BUSHING-STANDARD,SUSP,M10

5452233

$2.38

22

BUSHING-STANDARD,SUSP,M12

5452271

$3.17

23

NUT-M12X1.5,FLG,NYLOC-OLIVE D

7547334

$4.76
